EATON 5269N

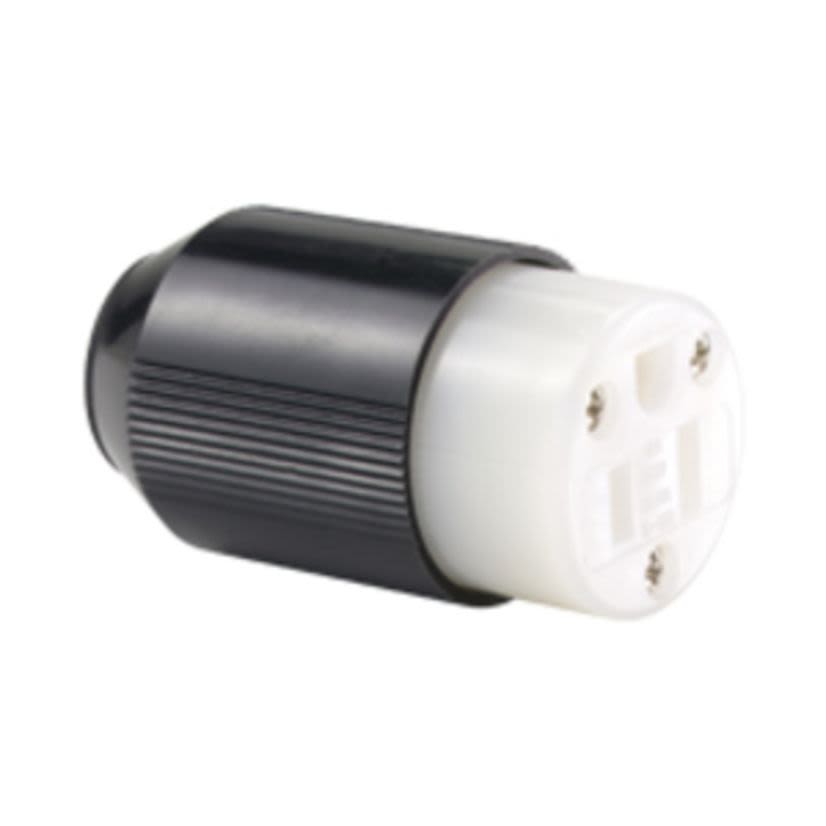

EATON Arrow Hart AutoGrip Eaton Wiring Devices 5269N Straight Blade Connector, 125 V AC, 15 A, 2 Poles, 3 Wires, Black/White
EATON 5269N
EATON Arrow Hart AutoGrip Eaton Wiring Devices 5269N Straight Blade Connector, 125 V AC, 15 A, 2 Poles, 3 Wires, Black/WhiteIn Stock: 34more info
|
BrandEATON
MFG #5269N
Werner Part #381321
UPC040893017808
In Stock: 34more info
|
BrandEATON
MFG #5269N
Werner Part #381321
UPC040893017808
Product Description
EATON Arrow Hart AutoGrip Eaton Wiring Devices Straight Blade Connector, 125 V AC, 15 A, 2 Pole, 3 Wires, NEMA 5-15 NEMA Rating, Industrial Grade, 0.33 to 0.66 in Diameter Cord, -40 to 75 deg C, Screw Terminal, Nylon, Black/White, 1.51 in Dia Dimensions
Attributes
Documents
Applications
Features
Specifications
Attributes
ColorBlack/White
Country of OriginMexico
Dimensions1.51 in Dia
Enclosure TypeNEMA 4/4X/12/IP66/IP67
GradeIndustrial
ManufacturerEaton
MaterialNylon
NEMA RatingNEMA 5-15
Number of Poles2
Number of Wires3
Package Height4.13 in
Package Length1.91 in
Package TypeEACH
Package Volume14.89 cu-in
Package Weight0.17 lb
Package Width1.78 in
Temperature Rating-40 to 75 deg C
Terminal TypeScrew
Type1-Phase Cable Mount Grounding Watertight
Type / StyleStraight Blade
Voltage Rating125 V AC
Applications
Ind Facilities & Factories - Industrial Facilities/Factories - Other
Features
- AutoGrip clamp design secures cord during assembly, reducing installation time
- Rugged nylon body resists impact and exposure to chemicals
- Neoprene gasket seals around cord for added terminal protection from external elements
- Tapered, individual wire pockets guide stranded wire into contact area for ease of installation
Specifications
Standards/Approvals: ARRA Compliant|Buy American Act Compliant|RoHS Compliant|UL Listed|cULus Listed|FULs Listed|NOM Certified|Federal Specification 6221 02|NAFTA Compliant
