Decora Plus 5825-W

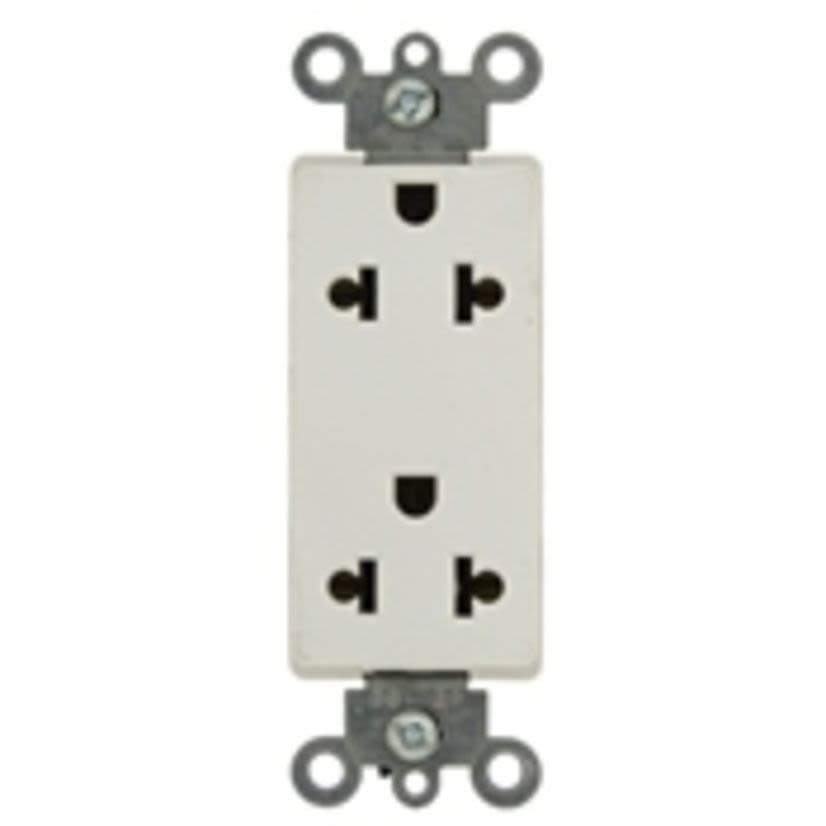

Leviton Decora Plus 5825-W 1-Phase Duplex Grounding Tamper Resistant Universal Straight Blade Receptacle, 125/250 V AC, 15 A, 2 Poles, 3 Wires, White
Decora Plus 5825-W
Leviton Decora Plus 5825-W 1-Phase Duplex Grounding Tamper Resistant Universal Straight Blade Receptacle, 125/250 V AC, 15 A, 2 Poles, 3 Wires, WhiteNon-stock product. Available to order - lead time may vary.
BrandDecora Plus
MFG #5825-W
Werner Part #3949388
UPC078477984697
Non-stock product. Available to order - lead time may vary.
BrandDecora Plus
MFG #5825-W
Werner Part #3949388
UPC078477984697
Product Description
Leviton Decora Plus Straight Blade Receptacle, 1-Phase Duplex Grounding Tamper Resistant Universal, 125/250 V AC, 15 A, 1/2 hp, 2 Pole, 3 Wires, NEMA 5-15R NEMA Rating, Commercial Grade, -40 to 60 deg C, Back/Side Wire Terminal, Thermoplastic, White
Attributes
Documents
Warranty
Features
Specifications
Attributes
ColorWhite
Country of OriginMX
GradeCommercial
Horsepower1/2 hp
ManufacturerLeviton
MaterialThermoplastic
NEMA RatingNEMA 5-15R
Number of Poles2
Number of Wires3
Temperature Rating-40 to 60 deg C
Terminal TypeBack/Side Wire
Type1-Phase Duplex Grounding Tamper Resistant Universal
Type / Style1-Phase Duplex Grounding Tamper Resistant Universal
Voltage Rating125/250 V AC
Warranty
2 Years
Features
- Terminal screws accept up to #12 AWG copper or copper clad wire
- Double wipe power contacts for reliable conductivity and plug retention
- Heavy gauge zinc plated steel mounting strap
Specifications
Standards/Approvals: ARRA Compliant|Buy American Act Compliant|RoHS Compliant|NOM 057|CSA File No. LR406|UL File No. E13399|UL94 V-2 Flammability Rating
