Color-Keyed 54813

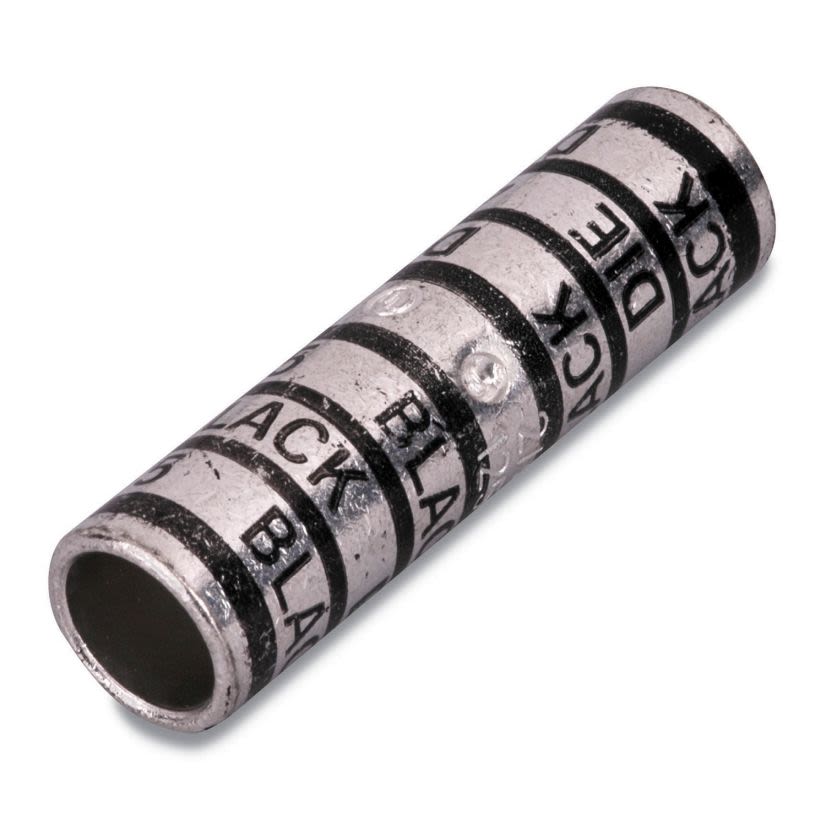

Color-Keyed 54813 2-Way Long Barrel Splice Connector, 250 kcmil Copper Conductor, Die Code: 62, 3.38 in L, Copper
Color-Keyed 54813
Color-Keyed 54813 2-Way Long Barrel Splice Connector, 250 kcmil Copper Conductor, Die Code: 62, 3.38 in L, CopperNon-stock product. Available to order - lead time may vary.
Non-stock product. Available to order - lead time may vary.
Product Description
Color-Keyed Splice Connector, 2-Way Long Barrel, Copper Conductor, 250 kcmil Conductor, Die Code: 62, 600 V AC, 0.79 in OD, 3.38 in Length, Specifications: Tin Plated, Copper, Yellow Color Code
Attributes
Documents
Applications
Features
Specifications
Attributes
ColorYellow
Conductor size250 kcmil
Conductor TypeCopper
Country of OriginMX
Die Code62
ManufacturerABB
MaterialCopper
Package Length3.5 in
Package TypeEACH
Package Volume34.56 cu-in
Package Weight0.17 lb
Package Width3 in
Type2-Way Long Barrel
Type / Style2-Way Long Barrel
Voltage Rating600 V AC
Documents
Applications
Applications certified to 600 V and recommended up to 35 kVĀ„
Features
- 2-way connector provides high pullout values, easy-to insulate and provide a low resistance connection of high quality and low installed cost
- Color coded for correct matching of installing die and connector
- 35 kV voltage rating
- 550/24 = 222 kcmil wire size flex
Specifications
Tin Plated
