Carlon NH12126

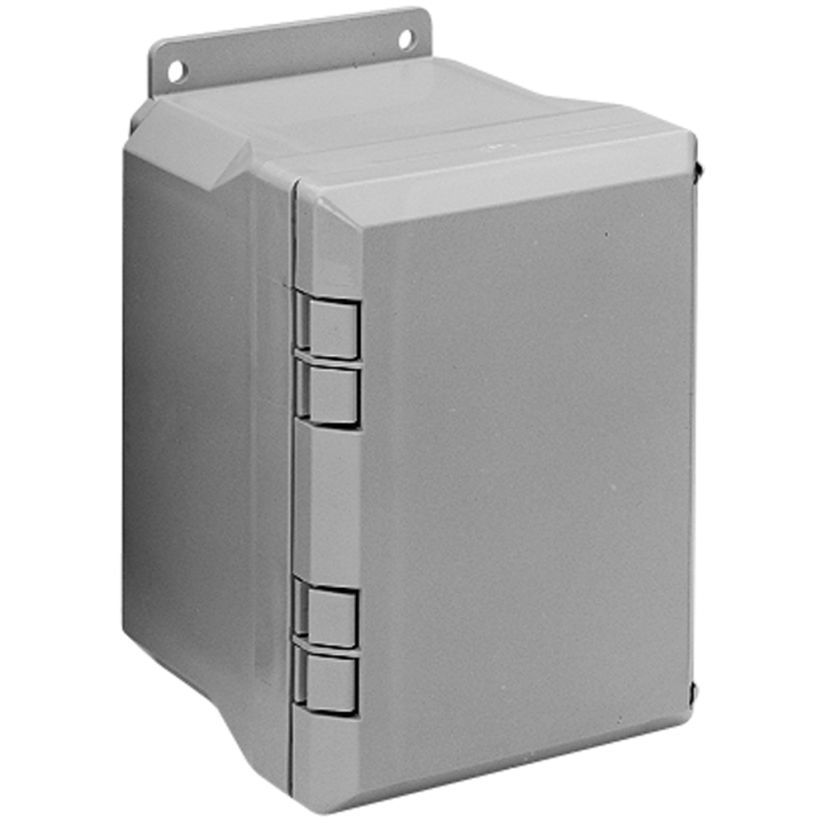

Carlon NH12126 Nema Enclosure, 12 in W x 7 in D 12 in H, NEMA 1/2/3/3S/3X/3SX/4/4X/12 NEMA Rating, Polycarbonate
Carlon NH12126
Carlon NH12126 Nema Enclosure, 12 in W x 7 in D 12 in H, NEMA 1/2/3/3S/3X/3SX/4/4X/12 NEMA Rating, PolycarbonateNon-stock product. Available to order - lead time may vary.
BrandCarlon
MFG #NH12126
Werner Part #633776
UPC034481007715
Non-stock product. Available to order - lead time may vary.
BrandCarlon
MFG #NH12126
Werner Part #633776
UPC034481007715
Product Description
Carlon NH12126 Nema Enclosure, 12 in Width, 7 in Depth, 12 in Height, NEMA 1/2/3/3S/3X/3SX/4/4X/12 NEMA Rating, Hidden Hinged Cover, 10.88 in W x 10.75 in H Panel, Lock: Latch, Wall Mounting, -30 to 230 deg F, Polycarbonate, Gray
Attributes
Documents
Applications
Included
Features
Specifications
Attributes
ColorGray
Country of OriginUS
Cover TypeHidden Hinged
ManufacturerABB
MaterialPolycarbonate
Mounting TypeWall
NEMA RatingNEMA 1/2/3/3S/3X/3SX/4/4X/12
Package TypeEACH
Panel Size10.88 in W x 10.75 in H
Size10.88 in W x 10.75 in H
Temperature Rating-30 to 230 deg F
Type / StyleNEMA Enclosure
Documents
Applications
Septic and Pump Controls, Wireless System Component Protection, Security System Controls, Marina and Sea Side Installations
Included
Body, Lid and Mounting Rail Kit
Features
- 100% non-metallic construction, including hinges
- Sturdy SS latches install without penetration of the enclosure base
- All cover screws are captive
- Panel suspension system allows the installation of panels at any depth, including stacking of multiple panels
- Non-metallic mounting rails for easy installation
- Less than half the weight of metal enclosures, 25% lighter than fiberglass, easier to handle and less expensive to ship
- 380 V/mil dielectric strength, 3 at 60 Hz, 2.96 at 106 Hz dielectric constant
Specifications
Latch
