Bussmann Series TCF80

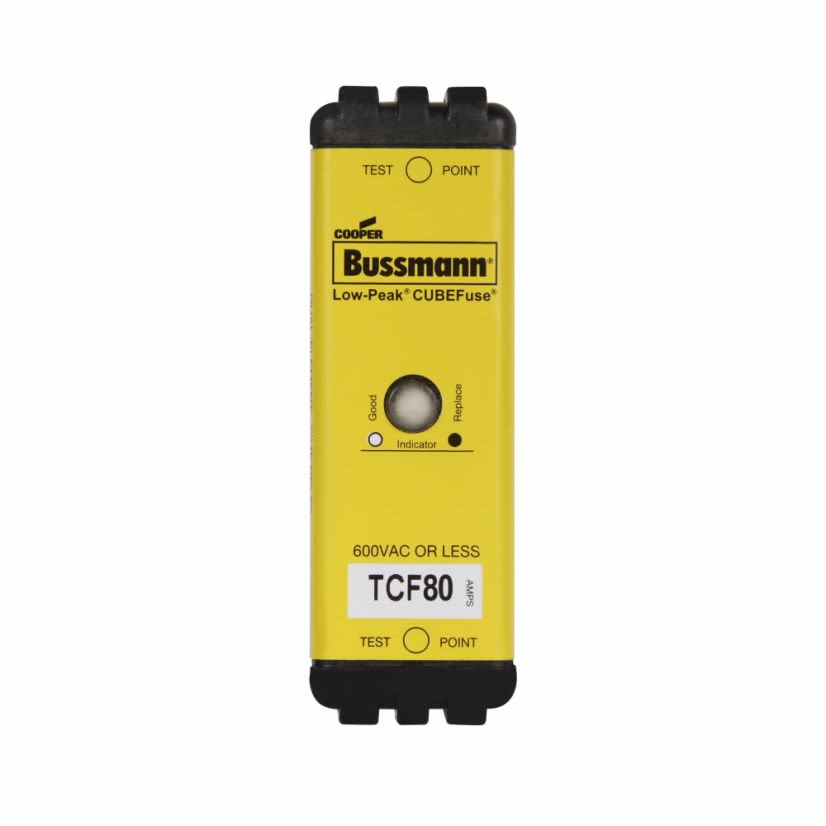

Bussmann CUBEFuse TCF80 Indicating Non-Rejection Time Delay Fuse, 80 A, 600 V AC/300 V DC, 100/300 kA Interrupt, Class: CF, Square Blade Body
Bussmann Series TCF80
Bussmann CUBEFuse TCF80 Indicating Non-Rejection Time Delay Fuse, 80 A, 600 V AC/300 V DC, 100/300 kA Interrupt, Class: CF, Square Blade BodyOut of Stockmore info
|
Out of Stockmore info
|
Product Description
Bussmann CUBEFuse Time Delay Fuse, Indicating Non-Rejection, Series: TCF, 80 A, 600 V AC/300 V DC, 100/300 kA Interrupt, Class: CF, 10 s at 500% Response, Blade Terminal, Chassis/DIN Rail Mount, Square Blade Body Type, Dual Element, Glass Filled Polyethersulfone, 3.01 in L x 1 in W x 1.26 in H Body Size
Attributes
Documents
Applications
Features
Attributes
Body Size3.01 in L x 1 in W x 1.26 in H
Body TypeSquare Blade
ClassCF
Country of OriginSri Lanka
ElementDual
Indicating/Non-IndicatingIndicating
Interrupt Rating100/300 kA
ManufacturerEaton
MaterialGlass Filled Polyethersulfone
Mounting TypeChassis/DIN Rail
Package Height2.28 in
Package Length3.01 in
Package TypeEACH
Package Weight1.75 lb
Package Width1 in
Rejection/Non-RejectionNon-Rejection
Response Time10 s at 500%
SeriesTCF
Terminal TypeBlade
Type / StyleTime Delay, Inrush Current Withstand
Voltage Rating600 V AC/300 V DC
Applications
Commercial/Institutional Buildings/structures, Power Distribution and Control, Electrical Panelboards, Industrial Control, Machinery Disconnects and Required Finger safe systems, Safety and Security Systems, Stationary Machinery and Equipment Outside Factory
Features
- Worlds first finger safe power fuse system
- Smallest footprint of any class fuse including class J, CC, T and RK
- Meets class CF and class J time delay electrical performance requirements
- Indicating version features easyID open fuse technology for faster troubleshooting and reduced downtime
- Faster response to damaging faults to help reduce destructive thermal and magnetic forces
- Long time delay minimizes nuisance circuit openings due to temporary overloads and transient surges
- High interrupt rating to safely interrupt faults up to 300 kA
- No venting of arc or molten metal and gases during opening
- Robust cycling and inrush current withstand
- Low let through currents under fault conditions
- Provides type 2 "no damage" in protection for IEC motors starters when properly sized
- Easy selective co-ordination with any other Cooper Bussmann Low-Peak class CC, L, J and RK1 fuse with simple 2:1 amp ration between upstream and downstream fuses
- 300 kA rms symmetrical at 600 VAC, 100 kA at 300 VDC interrupt rating
- Copper alloy terminals, electroless tin terminal plating, PES (polyethersulfone) indicator lens, energetic chemical indicator
- 10 s at 500% response time
