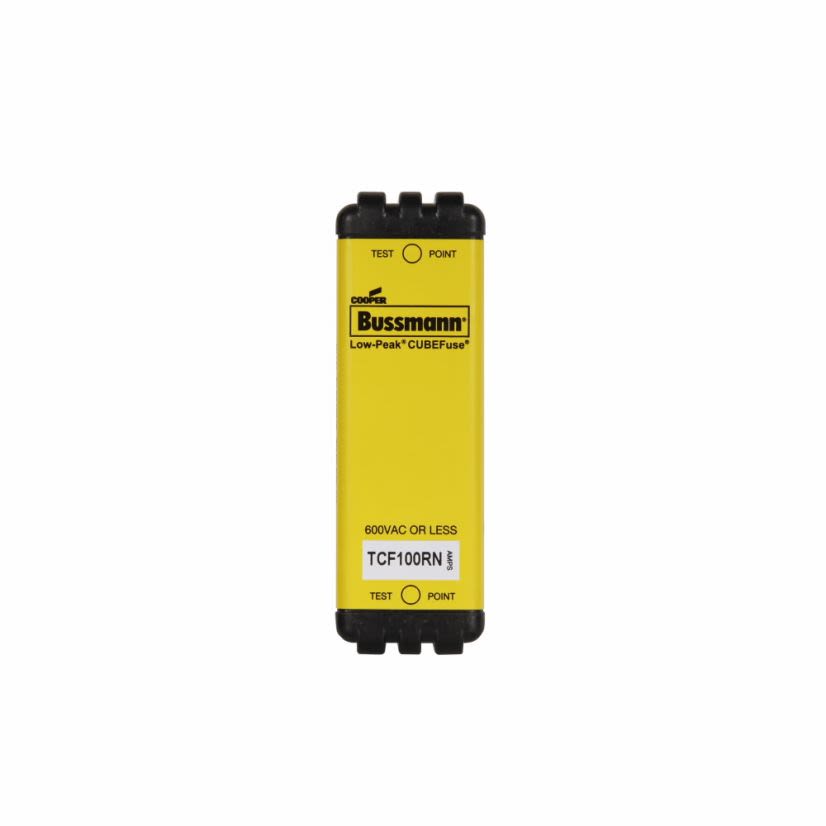

Bussmann Series TCF100RN
Bussmann CUBEFuse TCF100RN Non-Indicating Time Delay Fuse, 100 A, 600 V AC/300 V DC, 100/300 kA Interrupt, Class: CF, Square Blade Body
Bussmann Series TCF100RN
Bussmann CUBEFuse TCF100RN Non-Indicating Time Delay Fuse, 100 A, 600 V AC/300 V DC, 100/300 kA Interrupt, Class: CF, Square Blade BodyNon-stock product. Available to order - lead time may vary.
BrandBussmann Series
MFG #TCF100RN
Werner Part #3893117
UPC051712236195
Non-stock product. Available to order - lead time may vary.
BrandBussmann Series
MFG #TCF100RN
Werner Part #3893117
UPC051712236195
Product Description
Bussmann CUBEFuse Time Delay Fuse, Non-Indicating, Series: TCF, 100 A, 600 V AC/300 V DC, 100/300 kA Interrupt, Class: CF, 50/60 Hz, 10 s at 500% Response, Blade Terminal, Chassis/DIN Rail Mount, Square Blade Body Type, Dual Element, Glass Filled Polyethersulfone, Black, 0.81 in Dia x 3.5 in L Body Size
Attributes
Documents
Applications
Features
Attributes
Body Size0.81 in Dia x 3.5 in L
Body TypeSquare Blade
ClassCF
ColorBlack
Country of OriginCN
ElementDual
Frequency Rating50/60 Hz
Indicating/Non-IndicatingNon-Indicating
Interrupt Rating100/300 kA
ManufacturerEaton
MaterialGlass Filled Polyethersulfone
Mounting TypeChassis/DIN Rail
Response Time10 s at 500%
SeriesTCF
Terminal TypeBlade
Voltage Rating600 V AC/300 V DC
Applications
Commercial/Institutional Buildings/structures, Power Distribution and Control, Electrical Panelboards, Industrial Control, Machinery Disconnects and Required Finger safe systems, Safety and Security Systems, Stationary Machinery and Equipment Outside Factory
Features
- Worlds first finger safe power fuse system
- Smallest footprint of any class fuse including class J, CC, T and RK
- Meets class CF and class J time delay electrical performance requirements
- Indicating version features easyID open fuse technology for faster troubleshooting and reduced downtime
- Faster response to damaging faults to help reduce destructive thermal and magnetic forces
- Long time delay minimizes nuisance circuit openings due to temporary overloads and transient surges
- High interrupt rating to safely interrupt faults up to 300 kA
- No venting of arc or molten metal and gases during opening
- Robust cycling and inrush current withstand
- Low let through currents under fault conditions
- Provides type 2 "no damage" in protection for IEC motors starters when properly sized
- Easy selective co-ordination with any other Cooper Bussmann Low-Peak class CC, L, J and RK1 fuse with simple 2:1 amp ration between upstream and downstream fuses
- 300 kA rms symmetrical at 600 VAC, 100 kA at 300 VDC interrupt rating
- Copper alloy terminals, electroless tin terminal plating, energetic chemical indicator
- 10 s at 500% response time
