Bussmann Series MDA-1-R

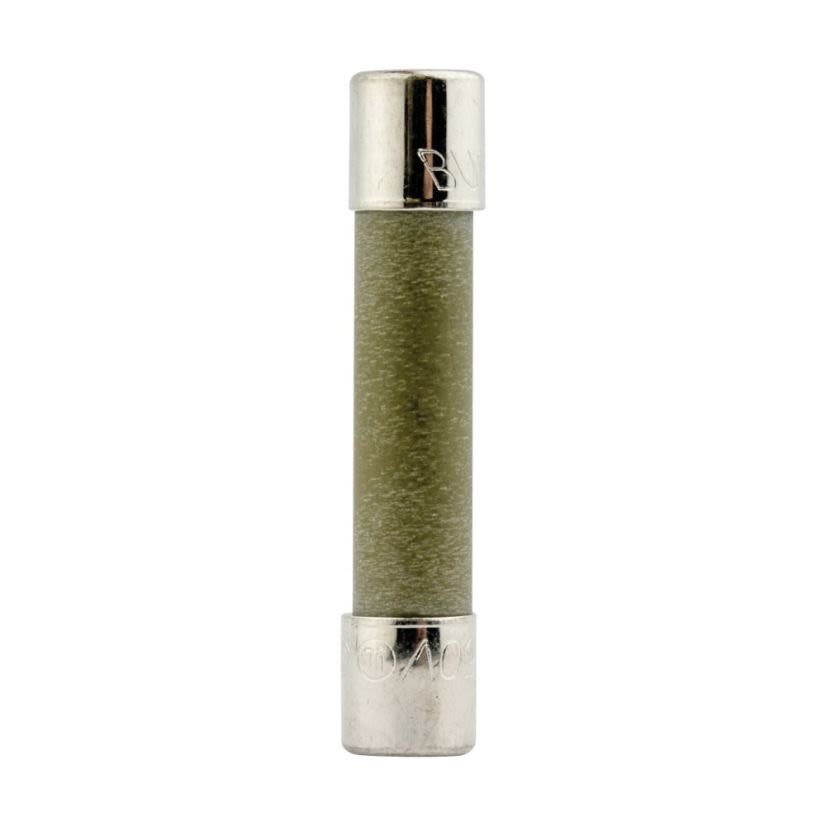

Bussmann MDA-1-R Small Dimension Time Delay Fuse With Nickel Plated Brass End Caps, 1 A, 250 V AC, 35 A/10 kA Interrupt, Cylindrical Body
Bussmann Series MDA-1-R
Bussmann MDA-1-R Small Dimension Time Delay Fuse With Nickel Plated Brass End Caps, 1 A, 250 V AC, 35 A/10 kA Interrupt, Cylindrical BodyIn Stock: 20more info
|
BrandBussmann Series
MFG #MDA-1-R
Werner Part #3853459
UPC051712645089
In Stock: 20more info
|
BrandBussmann Series
MFG #MDA-1-R
Werner Part #3853459
UPC051712645089
Product Description
Bussmann Time Delay Fuse, Small Dimension, Series: MDA, Non-Indicating, Non-Rejection, 1 A, 250 V AC, 35 A/10 kA Interrupt, 60 min, 120 s Response, Ferrule Terminal, Holder Mounting, Cylindrical Body, Single Element, Ceramic, 1/4 in Dia x 1-1/4 in L Body
Attributes
Documents
Applications
Features
Specifications
Attributes
Body Size1/4 in Dia x 1-1/4 in L
Body TypeCylindrical
Country of OriginCN
ElementSingle
Indicating/Non-IndicatingNon-Indicating
Interrupt Rating35 A/10 kA
ManufacturerEaton
MaterialCeramic
Mounting TypeHolder
Package TypeEACH
Rejection/Non-RejectionNon-Rejection
Response Time60 min, 120 s
SeriesMDA
Terminal TypeFerrule
Type / StyleSmall Dimension
Voltage Rating250 V AC
Applications
Electronic Circuit Applications
Features
- Ceramic body for higher amp/volt ratings
- Inventory consolidation by replacing MDL fuses allows for reduced SKU investment and minimizing potential for misapplying fuse
- 35 A at 250 VAC, 10 kA at 125 VAC interrupt rating
- 60 min at 135%, 120 sec at 200% response time
Specifications
Standards/Approvals: ARRA Compliant|Buy American Act Compliant|RoHS Compliant|CE Certified|Standard 248-14|UL Listed|Guide JDYX UL File No. E19180|CSA Class 1422-01|CSA File No. 53787
