Bussmann Series HM25030-3SR

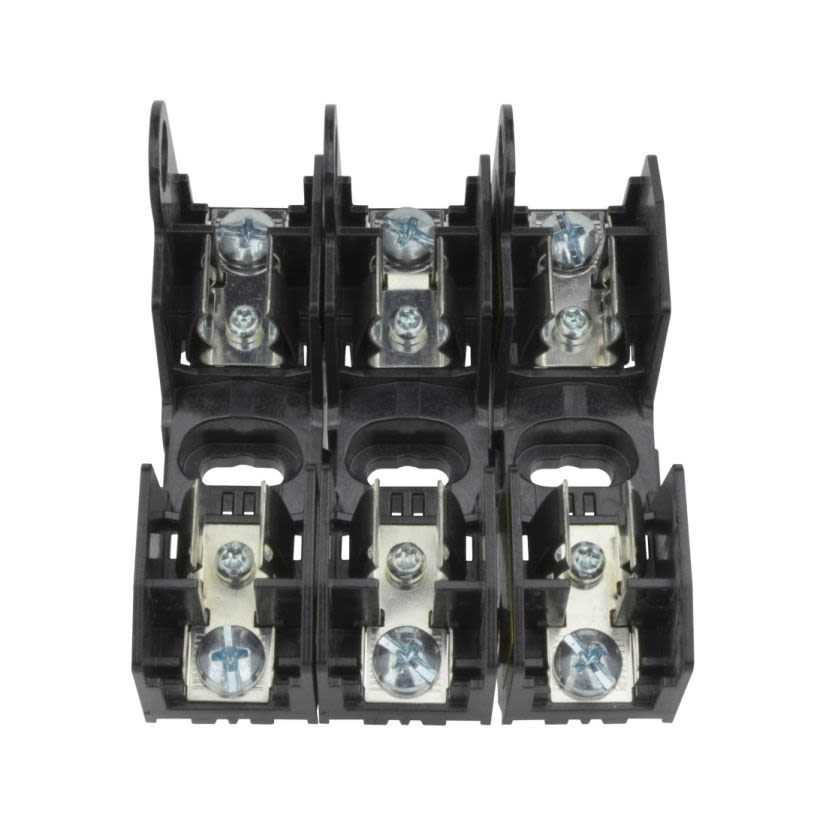

Bussmann HM25030-3SR Modular Fuse Block, 250 V, 0 to 30 A, Class: H/K, 18 to 10 AWG Wire, 3 Poles
Bussmann Series HM25030-3SR
Bussmann HM25030-3SR Modular Fuse Block, 250 V, 0 to 30 A, Class: H/K, 18 to 10 AWG Wire, 3 PolesNon-stock product. Available to order - lead time may vary.
BrandBussmann Series
MFG #HM25030-3SR
Werner Part #4054961
UPC051712512732
Non-stock product. Available to order - lead time may vary.
BrandBussmann Series
MFG #HM25030-3SR
Werner Part #4054961
UPC051712512732
Product Description
Bussmann Fuse Block, Modular, Series: HM Series, 250 V, 0 to 30 A, 3 Pole, Class: H/K, Fuse Holder Code: H, Phillips Slot Screw, 18 to 10 AWG Wire, DIN Rail/Panel Mount, 2 in Fuse Length, 0.56 in Fuse Dia, -40 to 120 deg C, For Use With: NON Series Fuse, Thermoplastic, 3.2 in L x 2.9 in W x 1.4 in H
Attributes
Documents
Applications
Features
Attributes
ClassH/K
Connection TypePhillips Slot Screw
Country of OriginMX
Dimensions3.2 in L x 2.9 in W x 1.4 in H
Fuse Diameter0.56 in
Fuse Holder CodeH
Fuse Length2 in
ManufacturerEaton
MaterialThermoplastic
Mounting TypeDIN Rail/Panel
Number of Poles3
Package Height3.5 in
Package Length3.16 in
Package TypeEACH
Package Weight1.16 lb
Package Width2.89 in
SeriesHM Series
Size of Wire18 to 10 AWG
Suitable For Use WithNON Series Fuse
Temperature Rating-40 to 120 deg C
Type / StyleModular
Voltage Rating250 V
Documents
Applications
Electrical Assemblies, Panels and EOEMs Applications
Features
- To reduce inventory, assembly time and labor, modular 1-pole blocks snap together for toolless assembly of multiple poles at point of use
- DIN rail and panel mount versatility allows one product to be used for multiple applications with lower inventory cost
- Save panel space with the smallest width dimension on the market
- Easy circuit identification with available universal marker labels for blocks and covers
- 18 to 10 AWG copper wire
