Bussmann Series BCM603-2PQ

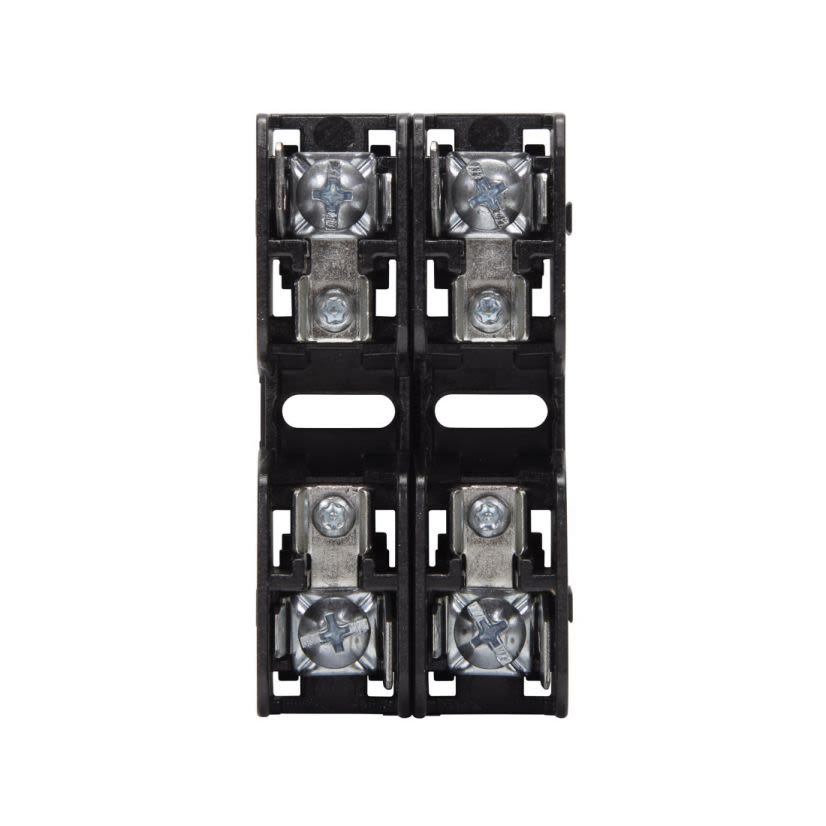

Bussmann BCM603-2PQ Modular Fuse Block With Pressure Plate, 600 V AC, 30 A, 18 to 10 AWG Wire, 2 Poles
Bussmann Series BCM603-2PQ
Bussmann BCM603-2PQ Modular Fuse Block With Pressure Plate, 600 V AC, 30 A, 18 to 10 AWG Wire, 2 PolesNon-stock product. Available to order - lead time may vary.
Non-stock product. Available to order - lead time may vary.
Product Description
Bussmann Fuse Block, Modular, Series: BCM, 600 V AC, 30 A, 2 Pole, Class: CC, 1/4 in Quick-Connect/Pressure Plate, 18 to 10 AWG Wire, DIN Rail/Panel Mount, -40 to 120 deg C, For Use With: Low-Peak LP-CC Series Time Delay, Limitron FNQ-R Series Time Delay, Limitron KTK-R Series Fast Acting Fuse, Thermoplastic, 3 in L x 1.6 in W x 1.3 in H
Attributes
Documents
Applications
Features
Attributes
ClassCC
Connection Type1/4 in Quick-Connect/Pressure Plate
Country of OriginMX
Dimensions3 in L x 1.6 in W x 1.3 in H
ManufacturerEaton
MaterialThermoplastic
Mounting TypeDIN Rail/Panel
Number of Poles2
Package Height1.32 in
Package Length3.1 IN
Package TypeEACH
Package Weight0.1 lb
Package Width2.4 IN
SeriesBCM
Size of Wire18 to 10 AWG
Suitable For Use WithLow-Peak LP-CC Series Time Delay, Limitron FNQ-R Series Time Delay, Limitron KTK-R Series Fast Acting Fuse
Temperature Rating-40 to 120 deg C
Type / StyleModular
Voltage Rating600 V AC
Applications
Electrical Assemblies, Panels and EOEMs Applications
Features
- Blocks are fully modular with a snap together design that provides tool less assembly of multiple pole blocks at point-of-use to reduce inventory and save assembly time and labor
- DIN rail and panel mount versatility allows one product to be used for multiple applications with lower inventory cost
- Compact footprint consumes minimal panel space
- Tin plated bimetallic copper fuse clips deliver superior fatigue resistance compared to traditional spring brass
