Broan NuTone 164

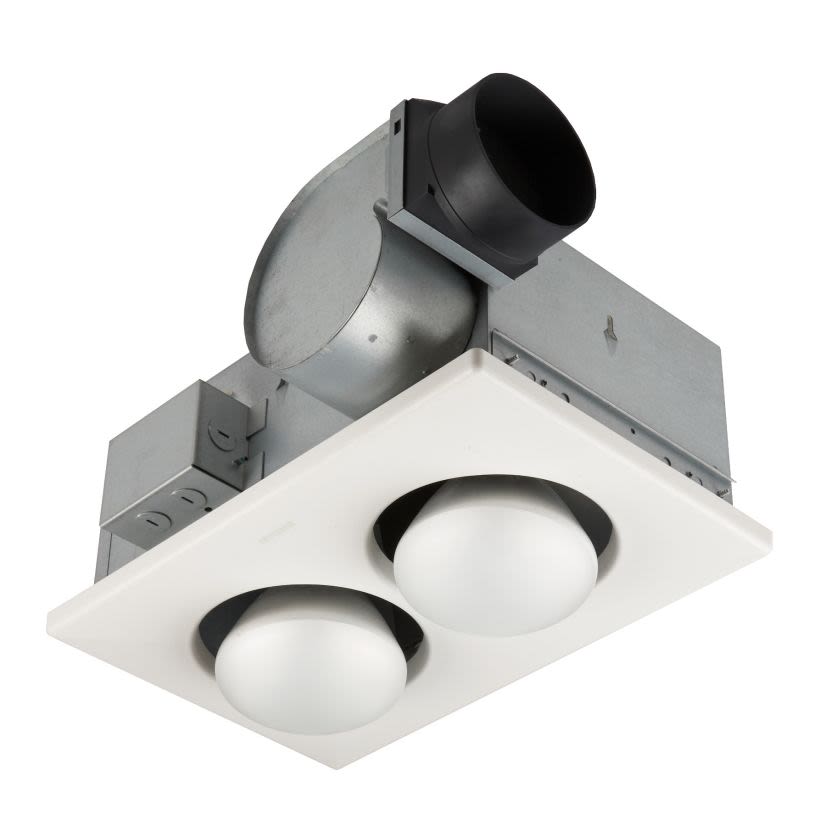

Broan 164 Bulb Heater, 70 cfm, 4 in Dia Duct, 500 W, 120 V AC, 500 W
Broan NuTone 164
Broan 164 Bulb Heater, 70 cfm, 4 in Dia Duct, 500 W, 120 V AC, 500 WIn Stock: 1more info
|
BrandBroan NuTone
MFG #164
Werner Part #20324
UPC026715002603
In Stock: 1more info
|
BrandBroan NuTone
MFG #164
Werner Part #20324
UPC026715002603
Product Description
Broan Bulb Heater, 70 cfm, 4 in Duct Dia, 120 V AC, 4.5 A, 545 W, 500 W Heater, 500 W Lamp, Infrared Lighting, Ceiling Mount, 15-5/8 in L x 10-1/4 in W Grille, Polymer Grille, 8-3/8 in L x 14-1/4 in W x 6-3/8 in H Housing, Steel Housing, Humidity Sensing: No, White
Attributes
Documents
Applications
Features
Specifications
Warranty
Attributes
Air Flow Rate70 cfm
ColorWhite
Country of OriginCN
Duct Diameter4 in
Flow Rate70 cfm
Grille MaterialPolymer
Grille Size15-5/8 in L x 10-1/4 in W
GTIN00026715002603
Heater Wattage500 W
Housing MaterialSteel
Humidity SensingNo
Lamp Wattage500 W
ManufacturerBroan-NuTone
Mounting TypeCeiling
Package Height7.2 IN
Package Length16.6 IN
Package Weight9.1 lb
Package Width12.3 IN
Power Rating545 W
Type / StyleHeater
Voltage Rating120 V AC
Documents
Applications
For energy-saving warmth and instant comfort in the bathroom
Features
- Bulb heater/fans provide silent warmth and superior ventilation in a compact package
- Heat and ventilation functions may be controlled separately or in combination so you're always in control of the environment
- Very low profile, white polymeric grille blends into most ceilings
- 70 cfm fan provides excellent ventilation at a quiet 3.5 Sones and will keep your bath free from steam or bathroom odors
- Use 250 W BR40 size infrared bulbs (not included) for comfortable heating performance
- Quiet, highly efficient polymeric blower wheels maintain consistent power, while polymeric dampers prevent backdrafts and eliminate mechanical noise for reliable operation and a comfortable environment, UL listed for safety
- Sturdy steel housing, a plug-in, permanently lubricated motor adjustable mounting brackets with keyhole slots and a 4 in round duct connector with tapered sleeves combine to make installation logical and simple
- Control operation with a choice of wall controls, available separately, 57W, 57V, 59W, 59V, 61W, 61V, 63W, 63V, 64W, 64V, 68W, 68V, 70TW, 71V, 72W, 72V, 269WL, 269VL, DH100W or T24H
- Ceiling heaters are intended to provide supplemental heat and not to take the place of the home's main heat source
- Polymeric dampers eliminate metallic clatter while preventing backdrafts
- Polymeric 4 in round duct connectors with tapered sleeves provide easier, positive ducting
- Adjustable mounting brackets with keyhole slots that span upto 24 in
- Use with Broan model 68W, 68V, 67W, 67V, 66W, 66V, 65W or 65V multi-function control (available separately)
Specifications
Standards/Approvals: UL Listed|HVI Certified
Warranty
1 Year
