Broan NuTone L400

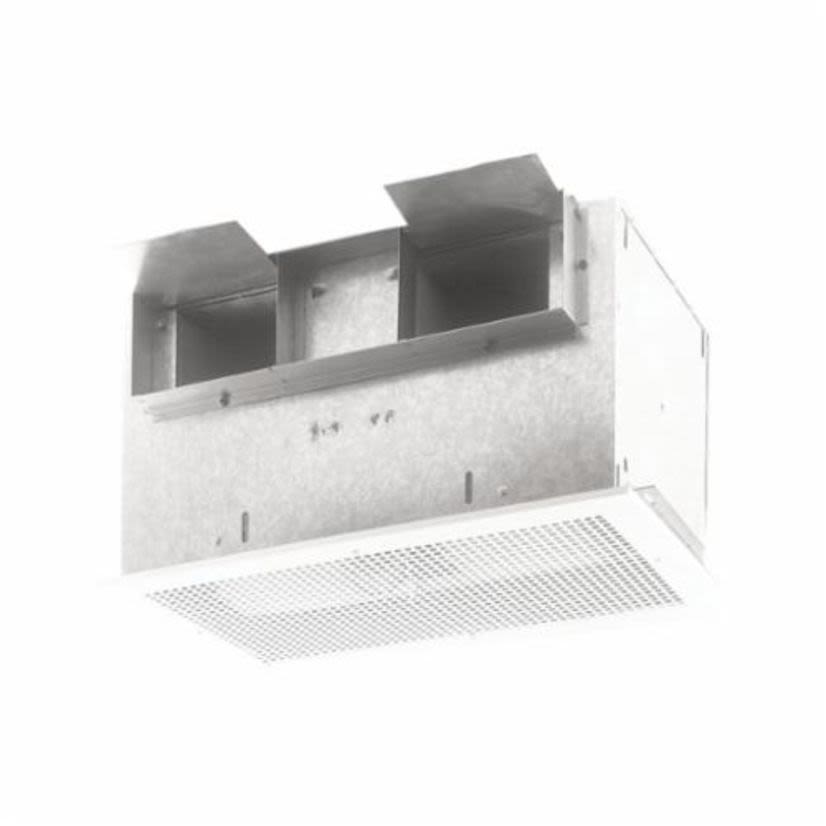

Broan® LoSone Select® L400 High Capacity Ceiling Exhaust Ventilator, 434 cfm, 4-1/2 x 18-1/2 in Dia Duct, 120 VAC, 1.4 A, Domestic
Broan NuTone L400
Broan® LoSone Select® L400 High Capacity Ceiling Exhaust Ventilator, 434 cfm, 4-1/2 x 18-1/2 in Dia Duct, 120 VAC, 1.4 A, DomesticNon-stock product. Available to order - lead time may vary.
BrandBroan NuTone
MFG #L400
Werner Part #20830
UPC026715124541
Non-stock product. Available to order - lead time may vary.
BrandBroan NuTone
MFG #L400
Werner Part #20830
UPC026715124541
Product Description
Broan® LoSone Select® Ceiling Exhaust Ventilator, High Capacity, 434 cfm, 4-1/2 x 18-1/2 in Duct Dia, 120 VAC, 1.4 A, 60 Hz, 14 in Grille Length, 23-1/4 in Grille Width, Metal Grille, 12-1/4 in Housing Length, 21-1/2 in Housing Width, 11-3/4 in Housing Height, Galvanized Steel Housing, Ceiling Mount, White, Domestic
Attributes
Documents
Features
Attributes
Air Flow Rate434 cfm
ColorWhite
Country of OriginUnited States
Domestic/ImportDomestic
Duct Diameter4-1/2 x 18-1/2 in
Flow Rate434 cfm
Frequency Rating60 Hz
Grille Length14 in
Grille MaterialMetal
Grille SizeL: 14 in x W 23-1/4 in
Grille Width23-1/4 in
HeightHousing: 11-3/4 in
Housing Length12-1/4 in
Housing MaterialGalvanized Steel
Housing Width21-1/2 in
LengthHousing: 12-1/4 in
ManufacturerBroan-NuTone
Mounting TypeCeiling
TypeHigh Capacity
Type / StyleHigh Capacity
Voltage Rating120 VAC
WidthHousing: 21-1/2 in
Features
Resilient anti-vibration motor mountsDynamically balanced polymeric centrifugal blower wheel for quiet, efficient performanceLow profile styling grille blends with any decorRugged 20 ga galvanized steel housing with 0.5 in acoustic insulation inside8-position mounting brackets for easy installation and greater adaptability to various mounting requirements, automatic backdraft damper located within duct connectorMay be installed as an in-line ventilator with addition of accessory kit model 982L, for controlling use model 57V (ivory)/57W (white) 3 A, electronic variable speed control or model 59V (ivory)/59W (white) 60 min time control or model 61V (ivory)/61W (white) 15 min time control or model 71V (ivory)/71W (white) 12 hr time controlPlug-in permanently lubricated thermally protected motor designed for continuous operationLow rpm for quiet operation blower434 cfm at 1/8 in SP horizontal, 2.3 Sones, 416 cfm at 0.1 in SP at 1/8 in SP vertical, 2.6 SonesRound ductSquare shape grille735 rpm horizontal, 755 rpm at 0.1 in SP vertical AC motor
