Broan NuTone L100

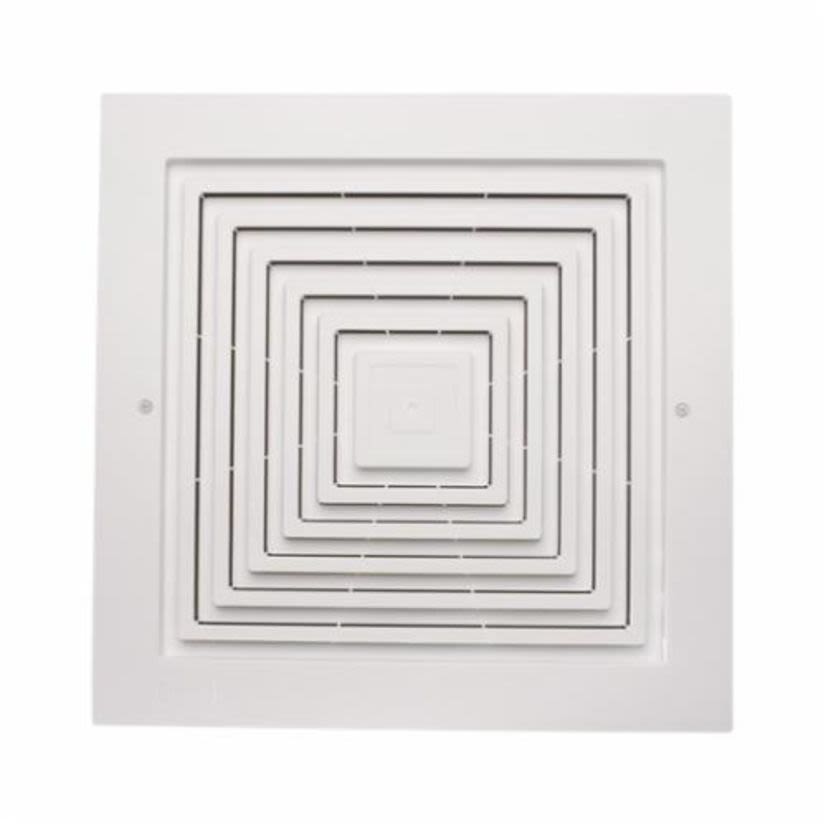

Broan LoSone Select L100 High Capacity Ceiling Exhaust Ventilator, 112 cfm, 6 in Dia Duct, 120 V AC, 1.1 A, Domestic
Broan NuTone L100
Broan LoSone Select L100 High Capacity Ceiling Exhaust Ventilator, 112 cfm, 6 in Dia Duct, 120 V AC, 1.1 A, DomesticNon-stock product. Available to order - lead time may vary.
BrandBroan NuTone
MFG #L100
Werner Part #20824
UPC026715124497
Non-stock product. Available to order - lead time may vary.
BrandBroan NuTone
MFG #L100
Werner Part #20824
UPC026715124497
Product Description
Broan LoSone Select Ceiling Exhaust Ventilator, High Capacity, 112 cfm, 6 in Duct Dia, 120 V AC, 1.1 A, 60 Hz, 14 in Grille Length, 14 in Grille Width, Polymer Grille, 12-1/4 in Housing Length, 12-1/4 in Housing Width, 11-3/4 in Housing Height, Galvanized Steel Housing, Ceiling Mount, White, Domestic
Attributes
Documents
Applications
Features
Attributes
Air Flow Rate112 cfm
ColorWhite
Country of OriginUS
Domestic/ImportDomestic
Duct Diameter6 in
Flow Rate112 cfm
Frequency Rating60 Hz
Grille Length14 in
Grille MaterialPolymer
Grille SizeL: 14 in x W 14 in
Grille Width14 in
HeightHousing: 11-3/4 in
Housing Length12-1/4 in
Housing MaterialGalvanized Steel
Housing Width12-1/4 in
LengthHousing: 12-1/4 in
ManufacturerBroan-NuTone
Mounting TypeCeiling
Package Height1.33 in
Package Length1.25 in
Package Weight22.8 lb
Package Width1.33 in
TypeHigh Capacity
Type / StyleHigh Capacity
Voltage Rating120 V AC
WidthHousing: 12-1/4 in
Documents
Applications
Conference, Commercial Buildings and Public Restroom
Features
- Resilient anti-vibration motor mounts
- Dynamically balanced polymeric centrifugal blower wheel for quiet, efficient performance
- Low profile styling grille blends with any decor
- Can be ducted horizontally or at 0.1 in SP vertically with in-line ducting available with separate adapter, rugged 20 ga galvanized steel housing with 1/2 in acoustic insulation inside
- 8-position mounting brackets for easy installation and greater adaptability to various mounting requirements, automatic backdraft damper located within duct connector
- May be installed as an in-line ventilator with addition of accessory kit Model 961L, for controlling use model 57V (ivory)/57W (white) electronic variable speed control or model 59V (ivory)/59W (white) 60 min time control or model 61V (ivory)/61W (white) 15 min time control or model 71V (ivory)/71W (white) 12 hr time control
- Plug-in permanently lubricated thermally protected motor designed for continuous operation
- Low rpm for quiet operation blower
- 115 cfm at 0.1 in SP horizontal, 117 cfm at 0.1 in SP vertical
- 109 cfm at 1/8 in SP horizontal, 0.9 Sones, 112 cfm at 0.1 in SP at 1/8 in SP vertical, 1 Sones
- Round duct
- UL listed for use over bathtubs and showers when connected to a GFCI circuit
- Square shape grille
- 640 rpm AC motor
