Broan NuTone 657

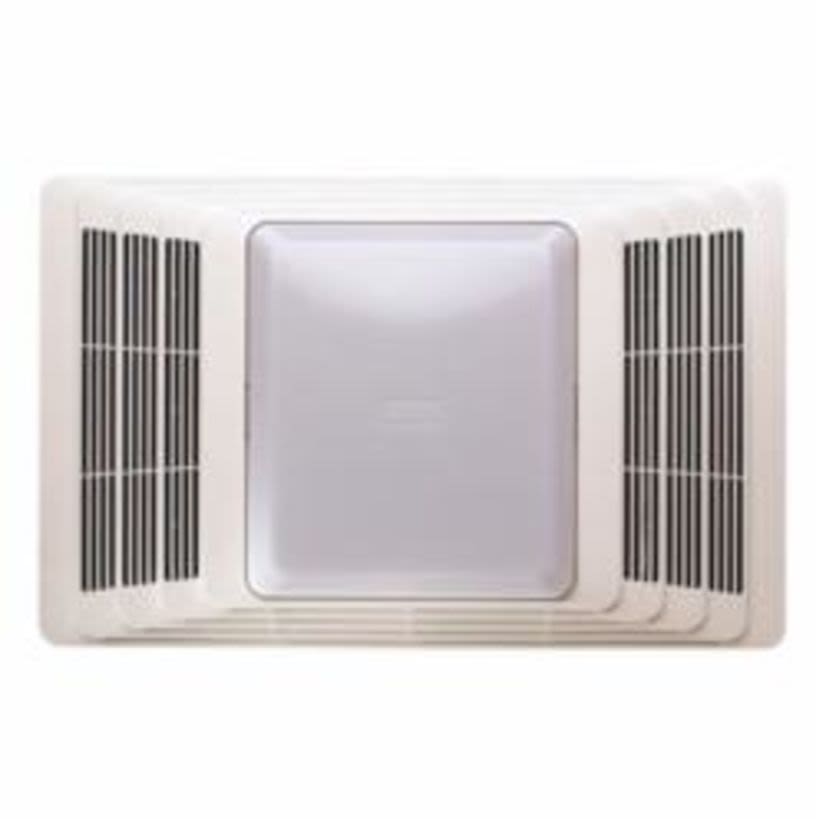

Broan 657 Ventilation Fan/Light, 70 cfm, 4 in Dia Duct, 100 W, 120 V AC, 2 A, 4 Sones, Domestic
Broan NuTone 657
Broan 657 Ventilation Fan/Light, 70 cfm, 4 in Dia Duct, 100 W, 120 V AC, 2 A, 4 Sones, DomesticNon-stock product. Available to order - lead time may vary.
BrandBroan NuTone
MFG #657
Werner Part #20447
UPC026715022991
Non-stock product. Available to order - lead time may vary.
BrandBroan NuTone
MFG #657
Werner Part #20447
UPC026715022991
Product Description
Broan Ventilation Fan/Light, 70 cfm, 4 in Duct Dia, 120 V AC, 2 A, 100 W, 4 Sones, 16-3/4 in Grille Length, 10-5/8 in Grille Width, Polymer Grille, 14-1/4 in Housing Length, 8-1/4 in Housing Width, 5-3/4 in Housing Height, Steel Housing, Ceiling Mount, Humidity Sensing: No, Motion Sensing: No, White, Domestic
Attributes
Documents
Applications
Included
Warranty
Features
Attributes
Air Flow Rate70 cfm
ColorWhite
Country of OriginUS
Current/Amps2 A
Domestic/ImportDomestic
Duct Diameter4 in
Flow Rate70 cfm
Grille Length16-3/4 in
Grille MaterialPolymer
Grille SizeL: 16-3/4 in x 10-5/8 in
Grille Width10-5/8 in
HeightHousing: 5-3/4 in
Housing Length14-1/4 in
Housing MaterialSteel
Housing Width8-1/4 in
Humidity SensingNo
LengthHousing: 14-1/4 in
ManufacturerBroan-NuTone
Motion SensingNo
Mounting TypeCeiling
Sones4
Voltage Rating120 V AC
Wattage Consumption100 W
WidthHousing: 8-1/4 in
Documents
Applications
For use in tub/shower enclosure with GFCI branch wiring, bathrooms upto 65 sq-ft
Included
(1) incandescent lamp
Warranty
1 Year
Features
- Designer styled white polymeric grille complements virtually any decor
- Bright 100 W light capacity
- 15 A circuit acceptable
- Use with model 68W or 68V 2-function control
- UL listed for use over bathtubs and showers when connected to GFCI protected branch circuit
- Does not include heater
- Permanently lubricated plug-in motor quietly deliver high efficiency performance
- Built-in damper prevents backdrafts and eliminates metallic clatter
- Adjustable, slotted mounting brackets span upto 24 in for easy installation
- Polymeric 4 in round duct features a 2 in long tapered sleeve for easy, positive ducting
- 16-3/4 in L x 10-5/8 in W white polymeric grille
- 2 x 6 in minimum construction space required
- Plug-in, permanently lubricated motor with resilient anti-vibration mounts
- Low sound, high performance blower wheel
- Polymeric damper/duct connector with 2 in L tapered sleeve and no metallic clatter
- Compact 23 ga steel housing finished with electrically bonded epoxy paint
- For installation in ceilings upto 12/12 pitch
- Suitable for use in insulated ceilings (Type IC)
- Use supply wiring rated for at least 90 deg C
