Broan NuTone 512

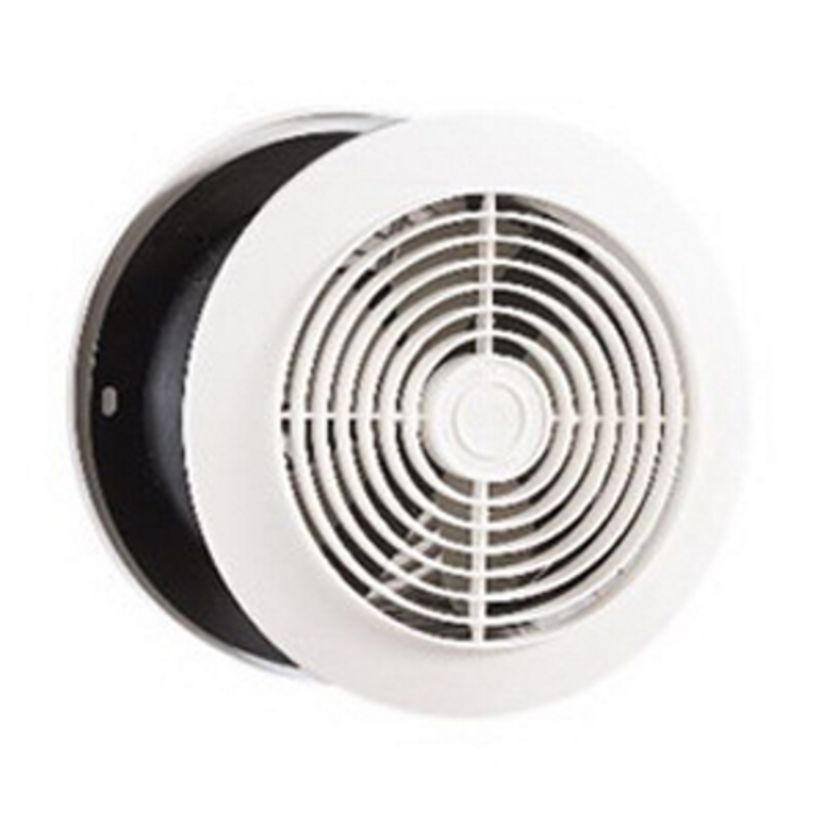

Broan 512 Room to Room Utility Ventilation Fan, 90 cfm, 6 in Dia Duct, 120 V AC, 0.7 A, Domestic
Broan NuTone 512
Broan 512 Room to Room Utility Ventilation Fan, 90 cfm, 6 in Dia Duct, 120 V AC, 0.7 A, DomesticNon-stock product. Available to order - lead time may vary.
BrandBroan NuTone
MFG #512
Werner Part #20413
UPC026715022939
Non-stock product. Available to order - lead time may vary.
BrandBroan NuTone
MFG #512
Werner Part #20413
UPC026715022939
Product Description
Broan Utility Ventilation Fan, Room to Room, 90 cfm, 6 in Duct Dia, 120 V AC, 0.7 A, 60 Hz, Polymer Grille, 7-1/2 in Housing Width, Steel Housing, Wall Mount, No, White, Domestic
Attributes
Documents
Applications
Features
Warranty
Attributes
Air Flow Rate90 cfm
ColorWhite
Country of OriginUS
Domestic/ImportDomestic
Duct Diameter6 in
Flow Rate90 cfm
Frequency Rating60 Hz
Grille MaterialPolymer
Housing MaterialSteel
Housing Width7-1/2 in
Humidity SensingNo
ManufacturerBroan-NuTone
Mounting TypeWall
TypeRoom to Room
Type / StyleRoom to Room
Voltage Rating120 V AC
WidthHousing: 7-1/2 in
Documents
Applications
For removing humidity from laundry rooms, tobacco smoke from rec rooms, fumes from workshops or cooking fumes from kitchens
Features
- Easy interior wall installation
- Two attractive white polymeric grilles can be painted to match decor
- White polymeric complement any decor grill
- Permanently lubricated motor
- 24 ga steel housing finished with electrically bonded epoxy paint
- Ventilator shall be steel housing finished with electrically bonded epoxy paint
- High strength, reinforced polymeric fan blade
- Move heated or cooled air through interior walls with this small, yet powerful unit
- Spin-on mounting, fits walls upto 5-1/8 in THK
- Plug-in, thermally protected, permanently lubricated
- Use with model 57V, 57W solid state speed control
- Unit shall be installed in an interior wall not through
- Motor assembly shall be removable and permanently lubricated
- A fire rated wall, unit shall be controlled with a toggle switch
- 2600 rpm speed, 3.5 Sones sound level
- 8 in Dia round grille
- No nightlight
- Eliminate humidity from laundry rooms, tobacco smoke from recreation rooms and workshops or cooking fumes from kitchens with Broans high efficiency utility ventilators
- 90 cfm at 0.1 in SP
Warranty
1 Year
