Bridgeport 570-DCI2

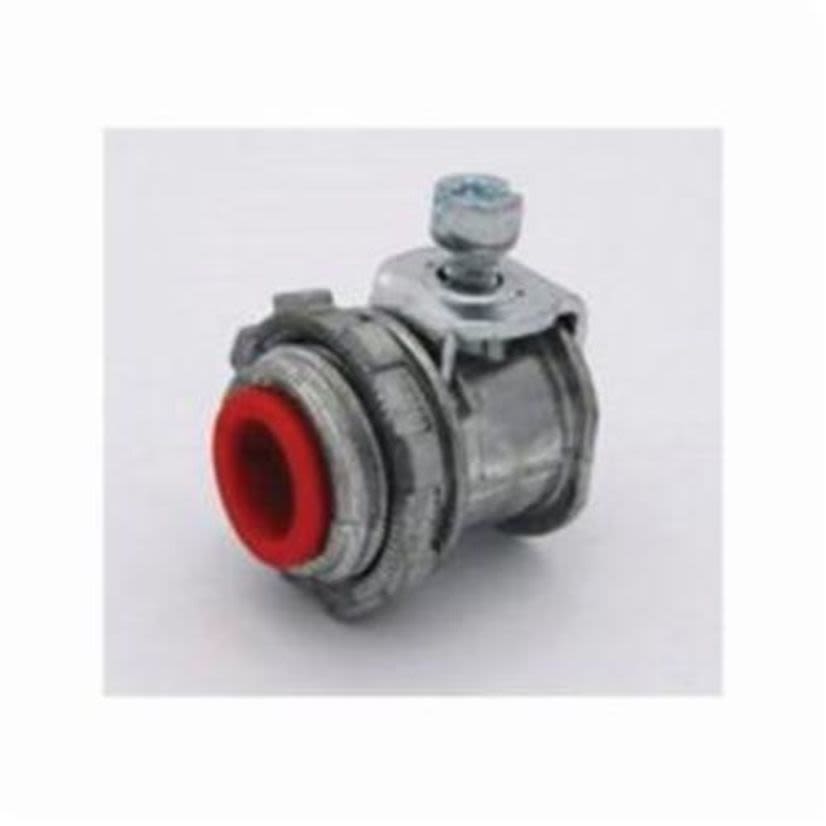

Bridgeport 570-DCI2 Insulated Throat U-Shape Conduit Connector, 3/8 in Trade, For Use With 14/2 to 10/3 AWG MCI-A/HCF/HCFMCIA and 3/8 in Flexible Metal Conduit, Die-Cast Zinc, Ball Burnished/Mirror Smooth/Electro-Plated Zinc
Bridgeport 570-DCI2
Bridgeport 570-DCI2 Insulated Throat U-Shape Conduit Connector, 3/8 in Trade, For Use With 14/2 to 10/3 AWG MCI-A/HCF/HCFMCIA and 3/8 in Flexible Metal Conduit, Die-Cast Zinc, Ball Burnished/Mirror Smooth/Electro-Plated ZincIn Stock: 130more info
|
In Stock: 130more info
|
Product Description
Bridgeport Conduit Connector, Insulated Throat U-Shape, 3/8 in Trade, 180 deg Angle, For Use With: 14/2 to 10/3 AWG MCI-A/HCF/HCFMCIA and 3/8 in Flexible Metal Conduit, Snap-In Mounting, Die-Cast Zinc, Ball Burnished/Mirror Smooth/Electro-Plated Zinc, 1 in L Dimensions
Attributes
Documents
Applications
Warranty
Features
Attributes
Angle180 deg
Country of OriginUS
Dimensions1 in L
FinishBall Burnished/Mirror Smooth/Electro-Plated Zinc
ManufacturerNSi Industries
MaterialDie-cast Zinc
Mounting TypeSnap-In
Package Length1 in
Package TypeEACH
Package Weight6.9 lb
Package Width0.62 in
Suitable For Use With14/2 to 10/3 AWG MCI-A/HCF/HCFMCIA and 3/8 in Flexible Metal Conduit
Trade Size3/8 in
TypeInsulated Throat U-Shape
Type / StyleInsulated Throat U-Shape
Documents
Applications
For use to connect MC/AC cable or 3/8 in flexible metal conduit to box or enclosure
Warranty
1 Year
Features
- Cable Range - Use to join 14/2 to 10/3 (.42 in to .61 in) AC/MC cable or 14/2 to 10/3 (.42 in to .61 in) MC-PCS cable to a 1/2 in box knockout
- Insulated Throat - Insulated throat protects inner wiring up to 105C
- Single Screw - Insert cable or conduit into connector and then tighten a single screw
- Zinc Body - Die cast zinc connectors have a precise fit and finish for a trouble-free performance and excellent corrosion resistance when used in harsh environments
