Brad 703000D02F200

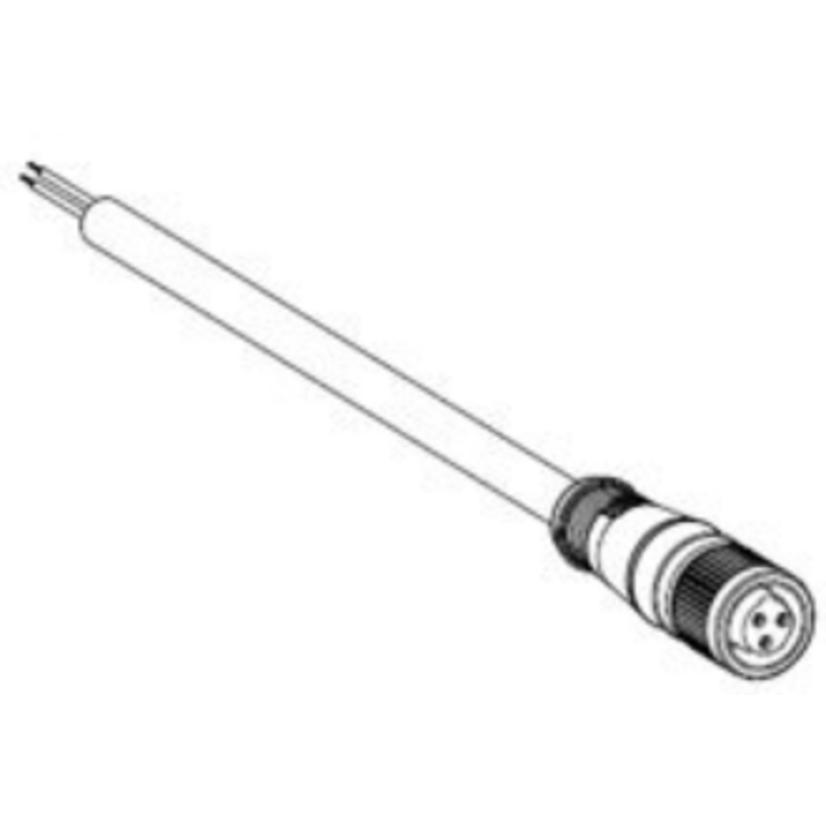

Brad Micro-Change Woodhead 703000D02F200 120072 Single Ended Cordset, 1/2-20 UNF Straight Female x Pigtail Connector, 6.1 m L Cable, 3 Poles, Dual Keyway
Brad 703000D02F200
Brad Micro-Change Woodhead 703000D02F200 120072 Single Ended Cordset, 1/2-20 UNF Straight Female x Pigtail Connector, 6.1 m L Cable, 3 Poles, Dual KeywayNon-stock product. Available to order - lead time may vary.
BrandBrad
MFG #703000D02F200
Werner Part #68657
UPC786788759117
Non-stock product. Available to order - lead time may vary.
BrandBrad
MFG #703000D02F200
Werner Part #68657
UPC786788759117
Product Description
Brad Micro-Change Woodhead Cordset, Single Ended, Series: 120072, Straight Female x Pigtail Connector, 1/2-20 UNF Connector, PVC Connector, 22 AWG Cable, 6.1 m Cable Length, PVC Cable, 3 Pole, Dual Keyway, 250 V AC/DC, 4 A, Black/Green/Red/White Wire Pin, NEMA 6P NEMA Rating
Attributes
Documents
Applications
Features
Attributes
Cable Length6.1 m
Cable MaterialPVC
Connector MaterialPVC
Connector Size1/2-20 UNF
Connector TypeStraight Female x Pigtail
Country of OriginMX
KeywayDual
LengthCable: 20 ft m
ManufacturerMolex
NEMA RatingNEMA 6P
Number of Poles3
Package TypePIECE
Package Weight2.15 lb
Return & Cancellation PolicyNonreturnable/Noncancellable
Series120072
Type / StyleSingle Ended
Type of Cable22 AWG
Wire Pin ColorsBlack/Green/Red/White
Documents
Applications
Construction and Mining Equipment, Sensors, Machine Lighting, Standard Industrial Lighting, C4ISR, Ground Vehicle Networks, Shelters, Automated Assembly Equipment, Conveyor Systems, Material Handling, Packaging Equipment and Pick and Place Robots
Features
- M12 design meets IEC specifications industry standard interface compatible with a wide array of sensors and switches
- Ideal for class 2 power and network circuit applications
- Provides a longer lasting, high performance electrical contact
- Prevents the coupler from loosening even under extreme vibration
- Robust housing provides superior electro magnetic interference (EMI) and radio frequency interference (RFI) protection
- Watertight panel mount design, enables enclosure meets NEMA 6P and IP67 protection
- Nylon 6/6 connector face, nitrile rubber O-ring, zinc die cast with black epoxy-coat
- Auto color code 2P to 6P
