Brad 130012-0127

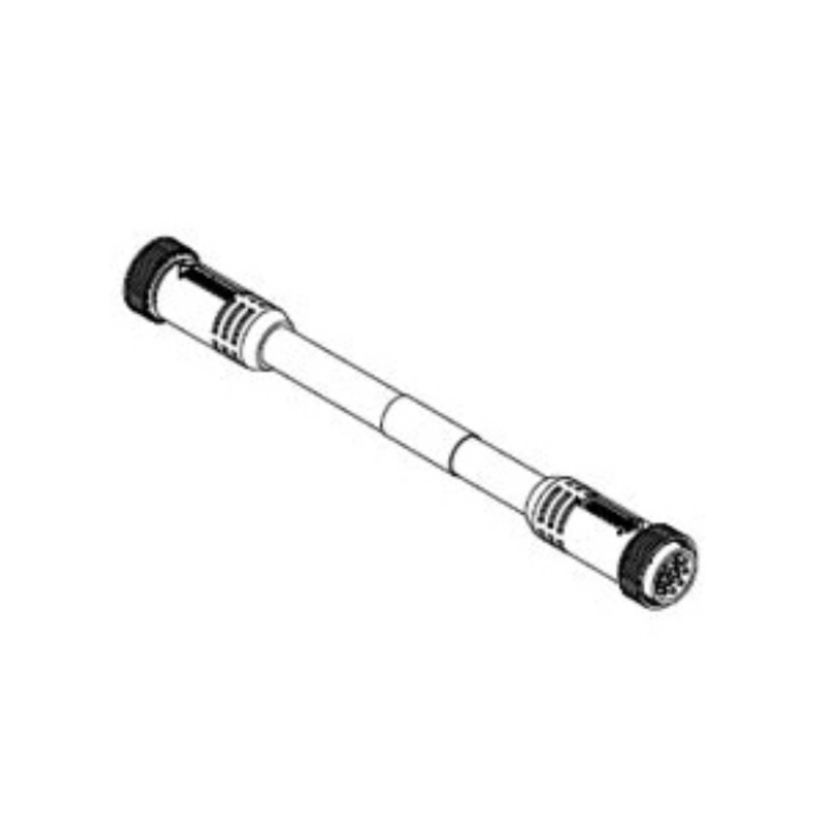

Woodhead Brad Mini-Change 130012-0127 Double End Cordset, 1-1/8-16 Straight Male x Straight Female Connector, 6.1 m L Cable, 12 Poles, Single Keyway
Brad 130012-0127
Woodhead Brad Mini-Change 130012-0127 Double End Cordset, 1-1/8-16 Straight Male x Straight Female Connector, 6.1 m L Cable, 12 Poles, Single KeywayNon-stock product. Available to order - lead time may vary.
Non-stock product. Available to order - lead time may vary.
Product Description
Woodhead Brad Mini-Change Cordset, Double End, Series: 130012, Straight Male x Straight Female Connector, 1-1/8-16 Connector, PVC, STOOW Cable, 6.1 m Cable Length, PVC Cable, 12 Poles, Single Keyway, 600 V AC, 5 A, Black/Blue/Green/Orange/Red/White/Yellow Wire Pin Colors, NEMA IP67
Attributes
Documents
Features
Attributes
Cable Length6.1 m
Cable MaterialPVC
Connector MaterialPVC
Connector Size1-1/8-16
Connector TypeStraight Male x Straight Female
Country of OriginUS
KeywaySingle
LengthCable: 6.1 m
ManufacturerMolex
NEMA RatingNEMA IP67
Number of Poles12
Return & Cancellation PolicyNonreturnable/Noncancellable
Series130012
SizeConnector: 1-1/8-16
Type / StyleDouble End
Type of CableSTOOW
Wire Pin ColorsBlack/Blue/Green/Orange/Red/White/Yellow
Features
- 16 AWG yellow cable
- 18.03 mm cable diameter
- Threaded style coupling
- Brass contact
- NO LED indicator
- Black epoxy coated zinc coupling nut
- Gold plated mating
- -20 to 105 deg C operating
