Brad 120072-0395

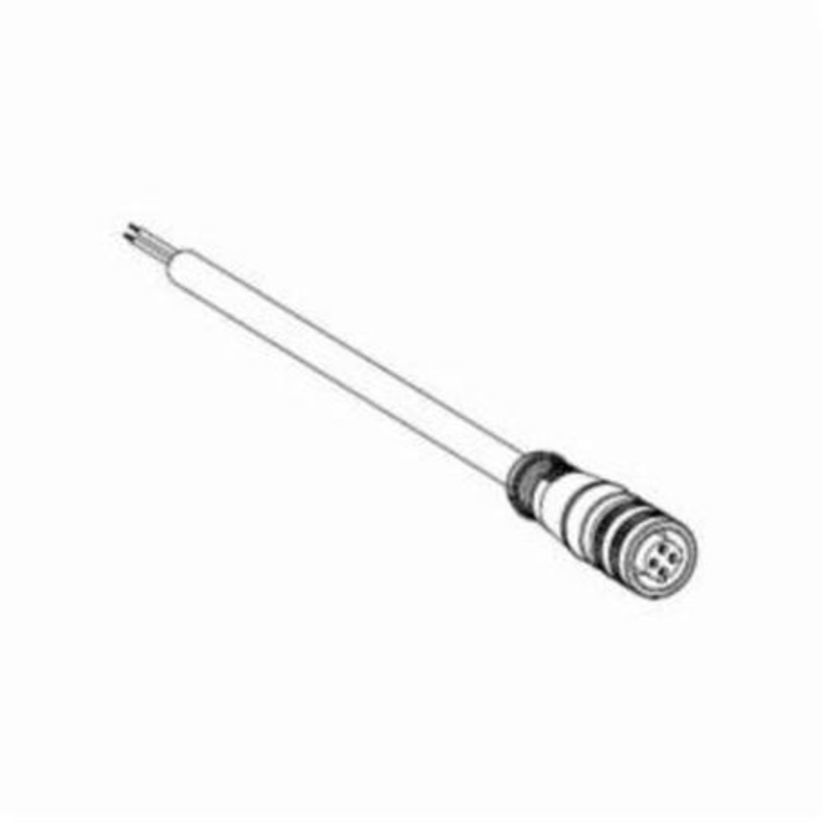

Woodhead Brad Micro-Change 120072-0395 Single End Cordset, 1/2-20 UNF Female Connector, 20 ft L Cable, 4 Poles, Double Keyway
Brad 120072-0395
Woodhead Brad Micro-Change 120072-0395 Single End Cordset, 1/2-20 UNF Female Connector, 20 ft L Cable, 4 Poles, Double KeywayNon-stock product. Available to order - lead time may vary.
Non-stock product. Available to order - lead time may vary.
Product Description
Woodhead Brad Micro-Change Cordset, Single End, Series: 120072, Female Connector, 1/2-20 UNF Connector, PVC Connector, 20 ft Cable Length, PVC Cable, 4 Pole, Double Keyway, 250 V AC/DC, 4 A, Black/Green/Red/White Wire Pin, NEMA IP67 NEMA Rating
Attributes
Applications
Features
Attributes
Cable Length20 ft
Cable MaterialPVC
Connector MaterialPVC
Connector Size1/2-20 UNF
Connector TypeFemale
Country of OriginUS
KeywayDouble
LengthCable: 20 ft
ManufacturerMolex
NEMA RatingNEMA IP67
Number of Poles4
Return & Cancellation PolicyNonreturnable/Noncancellable
Series120072
SizeConnector: 1/2-20 UNF
Type / StyleSingle End
Wire Pin ColorsBlack/Green/Red/White
Applications
Construction and Mining Equipment, Sensors, Machine Lighting, Standard Industrial Lighting, C4ISR, Ground Vehicle Networks, Shelters, Automated Assembly Equipment, Conveyor Systems, Pick-and-place Robots, Material Handling and Packaging Equipment
Features
- M12 design meets IEC specifications
- Ideal for class 2 power and network circuit applications
- Provides a longer lasting, high-performance electrical contact
- Prevents the coupler from loosening even under extreme vibration
- Robust housing provides superior electro magnetic interference (EMI) and radio frequency interference (RFI) protection
- Watertight panel mount design
- Copper alloy contact, black epoxy coated zinc coupling nut , nitrile rubber O-ring, gold over nickel plating mating material
- -20 to 105 deg C operating temperature
- 22 AWG yellow cable
