Brad 120072-0186

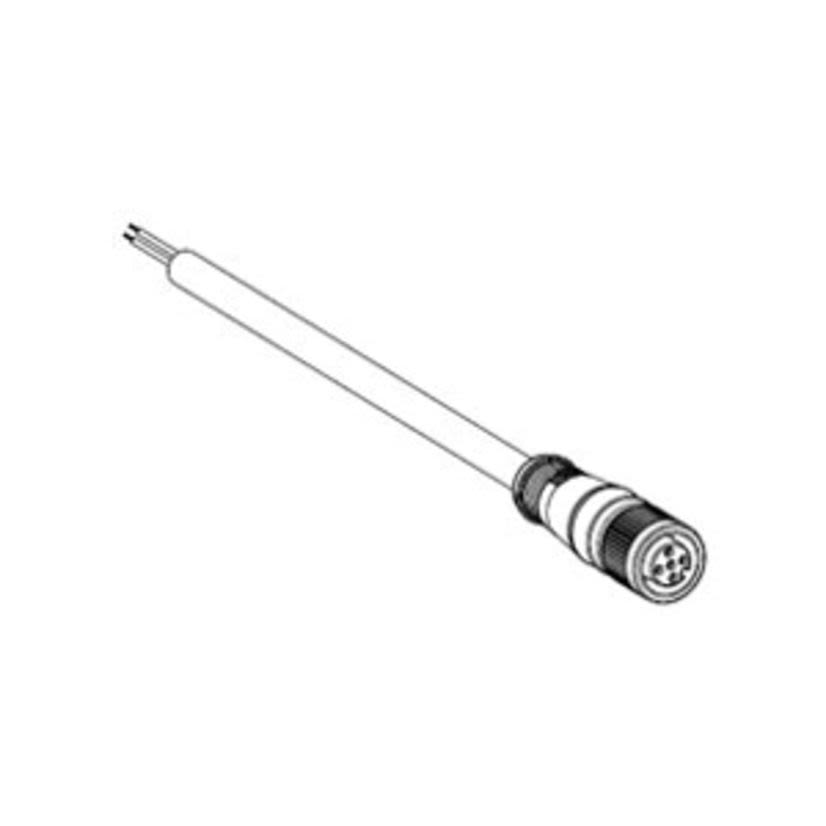

Woodhead Brad Micro-Change 120072-0186 Single End Cordset, 1/2-20 UNF Straight Female x Pigtail Connector, 20 ft L Cable, 3 Poles, Double Keyway
Brad 120072-0186
Woodhead Brad Micro-Change 120072-0186 Single End Cordset, 1/2-20 UNF Straight Female x Pigtail Connector, 20 ft L Cable, 3 Poles, Double KeywayNon-stock product. Available to order - lead time may vary.
BrandBrad
MFG #120072-0186
Werner Part #213221
UPC786788288396
Non-stock product. Available to order - lead time may vary.
BrandBrad
MFG #120072-0186
Werner Part #213221
UPC786788288396
Product Description
Woodhead Brad Micro-Change Cordset, Single End, Series: 120072, Straight Female x Pigtail Connector, 1/2-20 UNF Connector, PVC Connector, Braided Cable, 20 ft Cable Length, PVC Cable, 3 Pole, Double Keyway, 250 V AC/DC, 4 A, Black/Blue/Brown Wire Pin, NEMA 6P/IP68 NEMA Rating
Attributes
Features
Attributes
Cable Length20 ft
Cable MaterialPVC
Connector MaterialPVC
Connector Size1/2-20 UNF
Connector TypeStraight Female x Pigtail
KeywayDouble
LengthCable: 20 ft
ManufacturerMolex
NEMA RatingNEMA 6P/IP68
Number of Poles3
Return & Cancellation PolicyNonreturnable/Noncancellable
Series120072
Type / StyleSingle End
Type of CableBraided
Wire Pin ColorsBlack/Blue/Brown
Features
- 22 AWG 3 conductor cable
- Oil-resistant PVC jacket
- Highly reliable low-resistance contact design with gold/palladium nickel plating
- Nylon 6/6 connector face and nitrile rubber o-ring
- -4 to 221 deg F (-20 to 105 deg C) temperature rating
- 0.18 in cable diameter
- 1/2-20 UNF mating thread connector
- Stainless steel coupler
