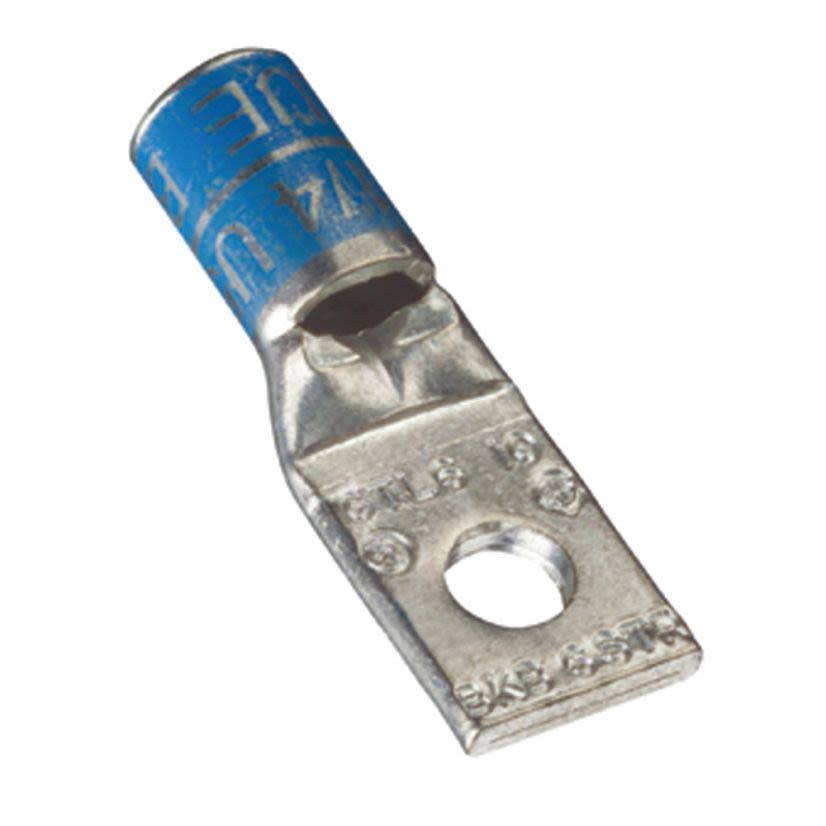

Blackburn CTL6-14
Color-Keyed CTL6-14 1-Hole Compression Lug, 6 AWG Flexible/Stranded Copper Conductor, 1/4 in Stud, Copper
Blackburn CTL6-14
Color-Keyed CTL6-14 1-Hole Compression Lug, 6 AWG Flexible/Stranded Copper Conductor, 1/4 in Stud, CopperNon-stock product. Available to order - lead time may vary.
Non-stock product. Available to order - lead time may vary.
Product Description
Color-Keyed Compression Lug, 1-Hole, Series: CTL, Flexible/Stranded Copper Conductor, 6 AWG Conductor, 35 kV, 1/4 in Stud, Straight Tongue, 17/16 in L x 7/16 in W x 1/16 in THK Tongue, 1-7/32 in Overall Length, Short/Standard Barrel, 7/16 in L Barrel, Specifications: Tin Plated, Copper, Blue
Attributes
Documents
Applications
Features
Specifications
Attributes
Barrel Size7/16 in L
Barrel TypeShort/Standard
ColorBlue
Conductor size6 AWG
Conductor TypeFlexible/Stranded Copper
Country of OriginMX
ManufacturerABB
MaterialCopper
Overall Length1-7/32 in
Package Length3.3 in
Package TypeEACH
Package Volume17.28 cu-in
Package Weight0.02 lb
Package Width2.8 in
SeriesCTL
Stud Size1/4 in
Tongue Size17/16 in L x 7/16 in W x 1/16 in THK
Tongue TypeStraight
Type1-Hole
Type / Style1-Hole
Voltage Rating35 kV
Applications
Confined Areas, Industrial and Building Applications
Features
- Made of high conductivity seamless copper tubing
- Tin plated for corrosion-resistance
- Specially chamfered barrel for ease of installation
- Color coded for matching die identification
- Can be used for medium voltage application up to 35 kV provided proper insulation techniques are used
- Short barrel connectors designed for regular duty applications
- For use with copper conductor AWG, stranded, flexible cable, welding cable and portable cord
Specifications
Tin Plated
