Belden 1048A

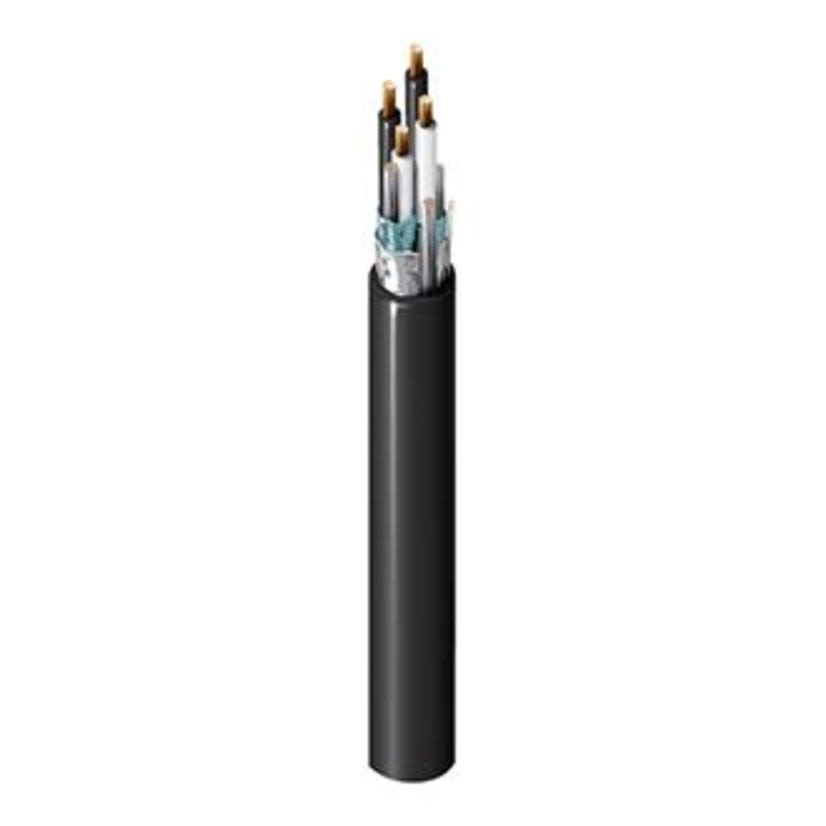

Belden 1048A Type TC Non-Plenum Tray Cable With Outer Jacket Ripcord, 600 V AC, (4) 18 AWG Bare Stranded Copper Conductor
Belden 1048A
Belden 1048A Type TC Non-Plenum Tray Cable With Outer Jacket Ripcord, 600 V AC, (4) 18 AWG Bare Stranded Copper ConductorNon-stock product. Available to order - lead time may vary.
Non-stock product. Available to order - lead time may vary.
Product Description
Belden Tray Cable, Type TC Non-Plenum, Series: 1048A, 600 V AC, 4 Conductors, Bare Stranded Copper Conductor, 18 AWG Conductor, 0.379 in OD, 7/26 Strands, 5.86 Ohm Resistance, PVC/Nylon Insulation, PVC Jacket, Black Jacket, -30 to 90 deg C
Attributes
Documents
Applications
Features
Specifications
Attributes
Conductor size18 AWG
Conductor TypeBare Stranded Copper
Insulation MaterialPVC/Nylon
Jacket ColorBlack
Jacket MaterialPVC
ManufacturerBelden
Number of Conductors4
Outside Diameter0.379 in
Resistance5.86 Ohm
Series1048A
Strands7/26
Temperature Rating-30 to 90 deg C
TypeType TC Non-Plenum
Voltage Rating600 V AC
Applications
Intercom/PA Systems, Sound/Audio Systems, Fire Alarm Systems and Commercial
Features
- High tensile strength, impact, heat, moisture, corrosion and crush resistance
- Superior low temperature properties and high insulation resistance
- Low dielectric loss, high dielectric strength, versatile and flexible
- Provides cost savings as conduit and ducts are not required for exposed-run cables
- Individually shielded plus an overall Beldfoil shield (100% coverage)
- 140 lb maximum recommended pulling tension
- 3.8 in minimum bend radius/minor axis
- 5.86 Ohm/1000 ft at 20 deg C nominal conductor DC resistance
- 4.19 Ohm/1000 ft at 20 deg C nominal outer shield DC resistance
- 7.46 Ohm/1000 ft at 20 deg C nominal individual pair shield DC resistance
- 20 AWG (7x28) tinned copper inner shield drain wire
- 18 AWG (7x26) tinned copper outer shield drain wire
Specifications
Standard/Approval: UL Listed|CE Certified|NEC®/CEC Certified|RoHS Compliant
