Belden 9925

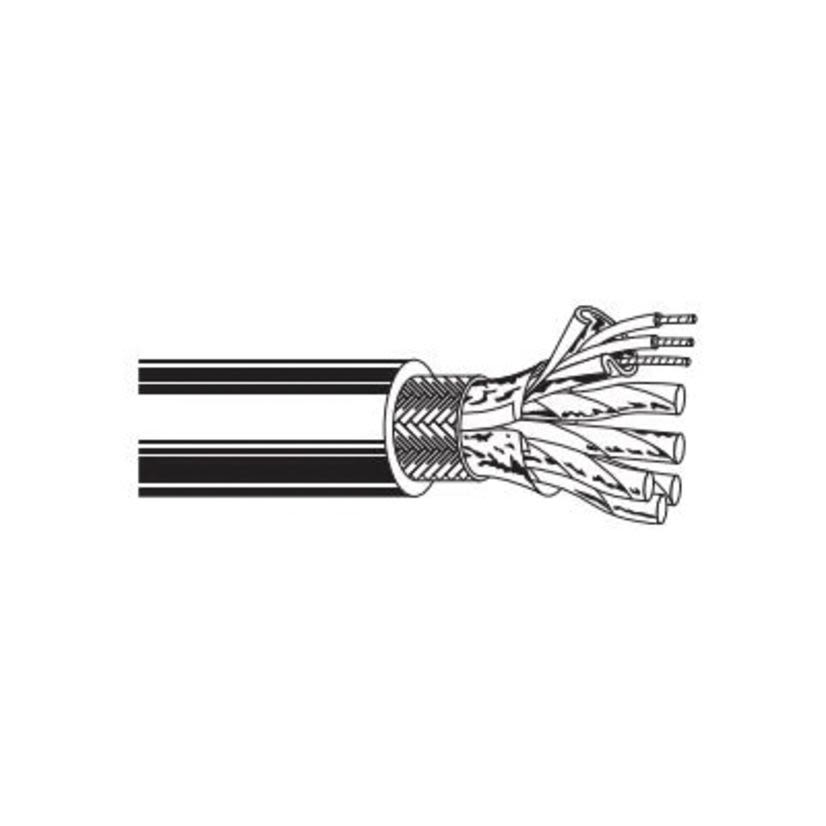

Belden 9925 Multi-Conductor Non-Plenum Shielded Computer Cable, 30/300 V AC, (3) 24 AWG Stranded Tinned Copper Conductor
Belden 9925
Belden 9925 Multi-Conductor Non-Plenum Shielded Computer Cable, 30/300 V AC, (3) 24 AWG Stranded Tinned Copper ConductorNon-stock product. Available to order - lead time may vary.
BrandBelden
MFG #9925
Werner Part #18173
Non-stock product. Available to order - lead time may vary.
BrandBelden
MFG #9925
Werner Part #18173
Product Description
Belden Computer Cable, Multi-Conductor Non-Plenum Shielded, 30/300 V AC, 2.2 A, 3 Conductors, Stranded Tinned Copper Conductor, 24 AWG Conductor, 0.209 in OD, 7/32 Strands, Polyethylene Insulation, PVC Jacket, Chrome Jacket, -30 to 80 deg C
Attributes
Documents
Applications
Features
Specifications
Attributes
Amps2.2 A
Conductor size24 AWG
Conductor TypeStranded Tinned Copper
Insulation MaterialPolyethylene
Jacket ColorChrome
Jacket MaterialPVC
ManufacturerBelden
Number of Conductors3
Outside Diameter0.209 in
Strands7/32
Type / StyleMulti-Conductor Non-Plenum Shielded
Voltage30/300 VAC
Applications
For EIA RS-232/423 applications
Features
- 2-1/4 in minimum bend radius/minor axis
- 12 pF/ft nominal conductor to conductor capacitance
- 22 pF/ft nominal conductor to other conductor and shield capacitance
- 24 Ohm/1000 ft at 20 deg C nominal conductor DC resistance
- 5.8 Ohm/1000 ft at 20 deg C nominal outer shield DC resistance
- 24 AWG stranded tinned copper drain wire
- Aluminum foil-polyester tape and tinned copper braid outer shield material
- Overall Beldfoil shielded (100% coverage) and TC braid shielded (65% coverage)
- 78% nominal velocity of propagation
Specifications
Standards/Approvals: CE Marked, UL Style 2919, UL 1685 Listed, RoHS Compliant
