Belden 9439

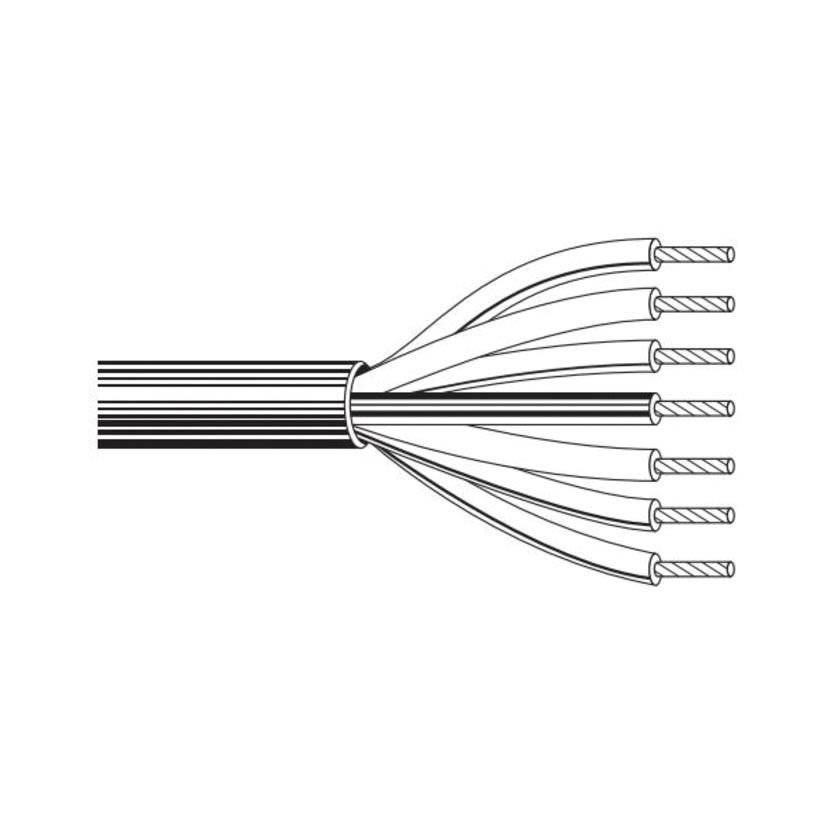

Belden 9439 Audio Multi-Conductor Non-Plenum Unshielded Control/Instrumentation Cable, Reel Packaging, 300 V AC, (7) 20 AWG Stranded Tinned Copper Conductor, 125 ft L
Belden 9439
Belden 9439 Audio Multi-Conductor Non-Plenum Unshielded Control/Instrumentation Cable, Reel Packaging, 300 V AC, (7) 20 AWG Stranded Tinned Copper Conductor, 125 ft LNon-stock product. Available to order - lead time may vary.
BrandBelden
MFG #9439
Werner Part #3897911
Non-stock product. Available to order - lead time may vary.
BrandBelden
MFG #9439
Werner Part #3897911
Product Description
Belden Control/Instrumentation Cable, Audio Multi-Conductor Non-Plenum Unshielded, Series: 9439, Reel Packaging, 300 V AC, 2.8 A, 7 Conductors, Stranded Tinned Copper Conductor, 20 AWG Conductor, 0.26 in OD, 125 ft Length, 7/28 Strands, PVC Insulation, PVC Jacket, Chrome Jacket, -20 to 80 deg C
Attributes
Documents
Features
Specifications
Attributes
Conductor size20 AWG
Conductor TypeStranded Tinned Copper
Insulation MaterialPVC
Jacket ColorChrome
Jacket MaterialPVC
ManufacturerBelden
Number of Conductors7
Outside Diameter0.26 in
Series9439
Strands7/28
Temperature Rating-20 to 80 deg C
TypeAudio Multi-Conductor Non-Plenum Unshielded
Voltage Rating300 V AC
Features
- 86 lb maximum recommended pulling tension
- 2-3/4 in minimum bend radius/minor axis
- 27 pF/ft nominal conductor to conductor capacitance
- 10.7 Ohm/1000 ft at 20 deg C nominal conductor DC resistance
Specifications
Standards/Approvals: UL, cUL Listed, CSA Certified, IEC 801-2 ANSI/IEEE C62.41C, FCC Approved
