Belden 8772

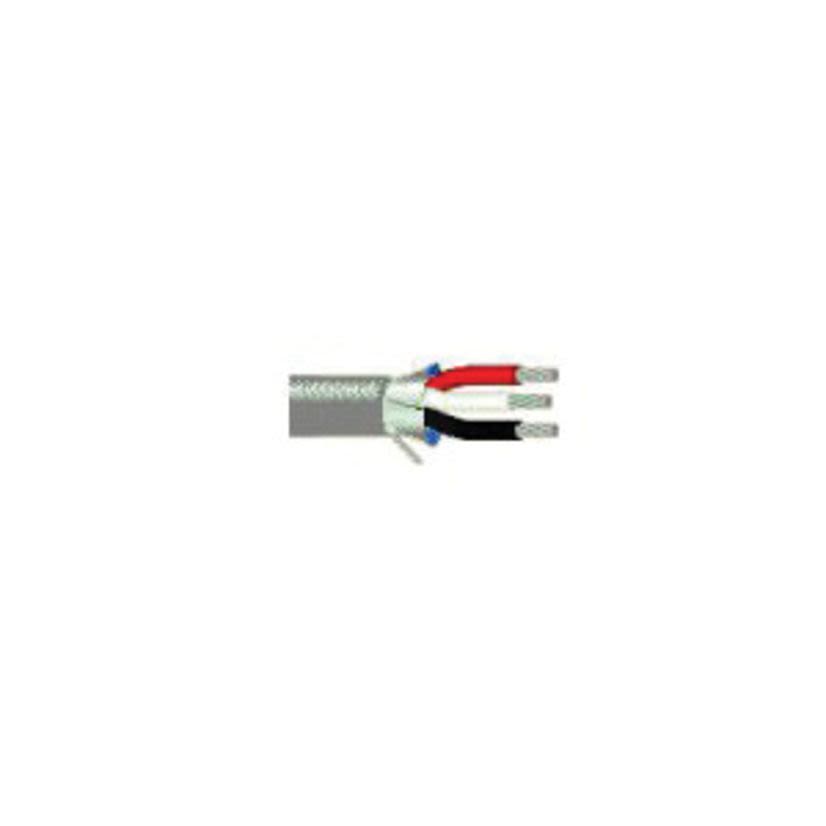

Belden 8772 Audio Multi-Conductor Non-Plenum Shielded Control/Instrumentation Cable, 300 V AC, (3) 20 AWG Stranded Tinned Copper Conductor
Belden 8772
Belden 8772 Audio Multi-Conductor Non-Plenum Shielded Control/Instrumentation Cable, 300 V AC, (3) 20 AWG Stranded Tinned Copper ConductorNon-stock product. Available to order - lead time may vary.
BrandBelden
MFG #8772
Werner Part #2001999
Non-stock product. Available to order - lead time may vary.
BrandBelden
MFG #8772
Werner Part #2001999
Product Description
Belden Control/Instrumentation Cable, Audio Multi-Conductor Non-Plenum Shielded, Series: 8772, 300 V AC, 4 A, 3 Conductors, Stranded Tinned Copper Conductor, 20 AWG Conductor, 0.218 in OD, 7/28 Strands, Polyethylene Insulation, PVC Jacket, Chrome Jacket, -20 to 60 deg C
Attributes
Documents
Applications
Features
Specifications
Attributes
Conductor size20 AWG
Conductor TypeStranded Tinned Copper
Insulation MaterialPolyethylene
Jacket ColorChrome
Jacket MaterialPVC
ManufacturerBelden
Number of Conductors3
Outside Diameter0.218 in
Packaging TypeCrate Reel
Series8772
Strands7/28
Temperature Rating-20 to 60 deg C
TypeAudio Multi-Conductor Non-Plenum Shielded
Voltage Rating300 V AC
Applications
Indoor Applications
Features
- Overall Beldfoil inner shield (100% coverage)
- 45 lb maximum recommended pulling tension
- 2-1/4 in minimum bend radius/minor axis
- 27 pF/ft nominal conductor to conductor capacitance
- 51 pF/ft nominal conductor to other conductor and shield capacitance
- 10 Ohm/1000 ft at 20 deg C nominal conductor DC resistance
- 8.9 Ohm/1000 ft at 20 deg C nominal outer shield DC resistance
- 20 AWG stranded tinned copper drain wire
- 2 in cabling lay length, 6 twists/ft, left hand direction
Specifications
Standards/Approvals: CE Certified, UL Style 2093, UL 1685 Listed, CSA FT1 Certified, RoHS Compliant
