Belden 8723

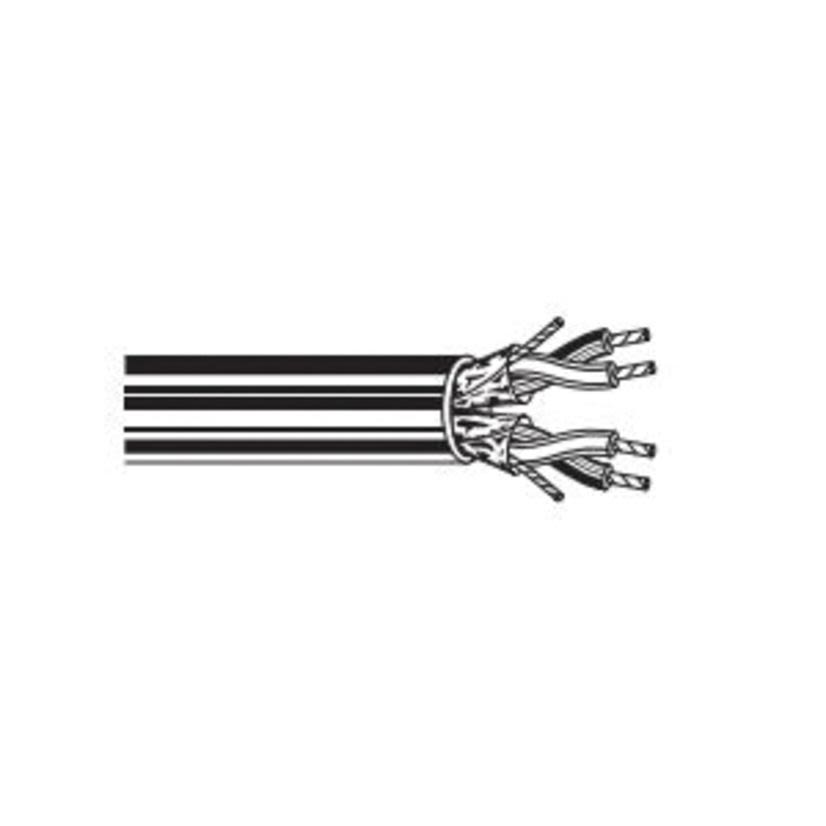

Belden 8723 Audio Multi-Conductor Non-Plenum Unshielded Control/Instrumentation Cable, 300 V AC, (4) 22 AWG Stranded Tinned Copper Conductor
Belden 8723
Belden 8723 Audio Multi-Conductor Non-Plenum Unshielded Control/Instrumentation Cable, 300 V AC, (4) 22 AWG Stranded Tinned Copper ConductorOut of Stockmore info
|
BrandBelden
MFG #8723
Werner Part #18062
Out of Stockmore info
|
BrandBelden
MFG #8723
Werner Part #18062
Product Description
Belden Control/Instrumentation Cable, Audio Multi-Conductor Non-Plenum Unshielded, Series: 8723, 300 V AC, 2.3 A, 4 Conductors, Stranded Tinned Copper Conductor, 22 AWG Conductor, 0.16 in OD, 7/30 Strands, Polypropylene Insulation, PVC Jacket, Chrome Jacket, -20 to 75 deg C
Attributes
Documents
Features
Specifications
Attributes
Conductor size22 AWG
Conductor TypeStranded Tinned Copper
Insulation MaterialPolypropylene
Jacket ColorChrome
Jacket MaterialPVC
ManufacturerBelden
Number of Conductors4
Outside Diameter0.16 in
Packaging TypeCrate Reel
Series8723
Strands7/30
Temperature Rating-20 to 75 deg C
TypeAudio Multi-Conductor Non-Plenum Unshielded
Voltage Rating300 V AC
Features
- Individually Beldfoil inner shielded (100% coverage)
- 42 lb maximum recommended pulling tension
- 1-3/4 in minimum bend radius/minor axis
- 33 pF/ft nominal conductor to conductor capacitance
- 62 pF/ft nominal conductor to other conductor and shield capacitance
- 14.7 Ohm/1000 ft at 20 deg C nominal conductor DC resistance
- 15 Ohm/1000 ft at 20 deg C nominal outer shield DC resistance
- 66% nominal velocity of propagation
- 24 AWG stranded tinned copper drain wire, twisted pairs
Specifications
Standards/Approvals: UL Listed, CSA, NOM, Certified, ANSI/IEEE C62.41, ASTM E 308, ASTM D4674
