Belden 7922A-0101000

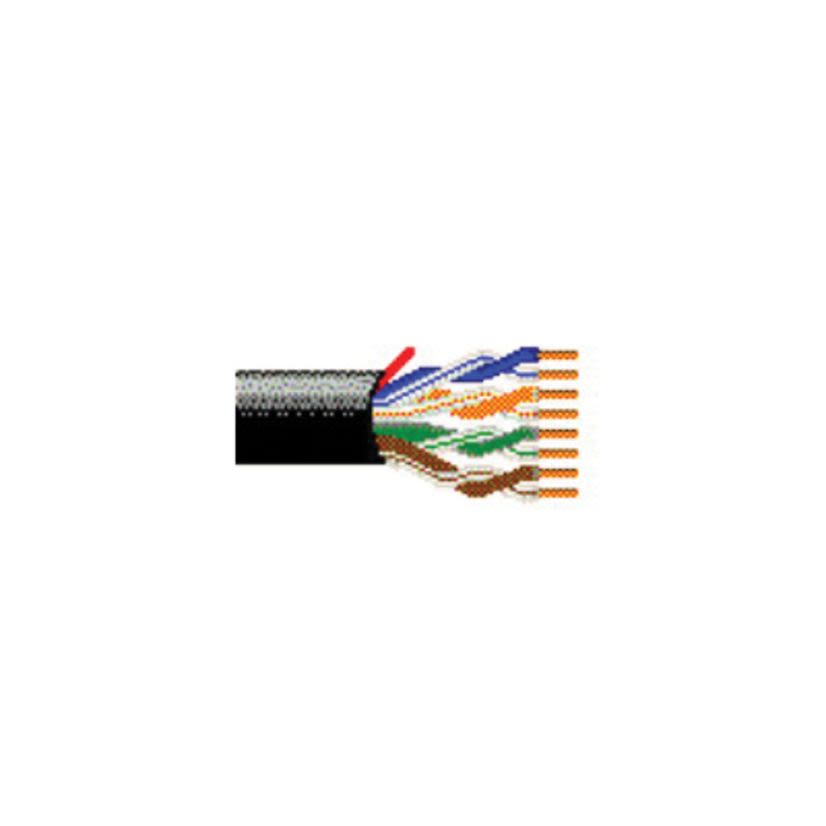

Belden DataTuff 7922A-0101000 Cat 5e Multi-Conductor Unshielded Ethernet Cable, 300 V AC, (8) 22 AWG Bare Solid Copper Conductor, 1000 ft L
Belden 7922A-0101000
Belden DataTuff 7922A-0101000 Cat 5e Multi-Conductor Unshielded Ethernet Cable, 300 V AC, (8) 22 AWG Bare Solid Copper Conductor, 1000 ft LNon-stock product. Available to order - lead time may vary.
Non-stock product. Available to order - lead time may vary.
Product Description
Belden DataTuff Ethernet Cable, Cat 5e Multi-Conductor Unshielded, Series: 7922A, 300 V AC, 8 Conductors, Bare Solid Copper Conductor, 22 AWG Conductor, 0.301 in OD, 1000 ft Length, 9 Ohm Resistance, Polyolefin Insulation, PVC Jacket, Black Jacket, -40 to 75 deg C
Attributes
Applications
Warranty
Features
Specifications
Attributes
Conductor size22 AWG
Conductor TypeBare Solid Copper
Insulation MaterialPolyolefin
Jacket ColorBlack
Jacket MaterialPVC
ManufacturerBelden
Number of Conductors8
Outside Diameter0.301 in
Resistance9 Ohm
Series7922A
Temperature Rating-40 to 75 deg C
TypeCat 5e Multi-Conductor Unshielded
Voltage Rating300 V AC
Applications
Hazardous Areas and Non-Hazardous Areas, Cable Trays, Raceways, Conduit and Supported by Messenger Wires, Approved for Outdoor Usage
Warranty
10 Years
Features
- Bonded-pair technology designed for signal integrity and long life of your cables
- Broad cable portfolio ensures you get the cable best suited to your needs
- Advanced shielding technology to counteract harsh environmental conditions
- Rip cord, industrial grade sunlight and oil-resistant jacket
- 40 lb maximum recommended pulling tension
- -40 to 85 deg C storage, -25 to 75 deg C installation temperature range
- 15 pF/ft nominal mutual capacitance
- 70% nominal velocity of propagation
- 9 Ohm/100 m at 20 deg C maximum conductor DC resistance
- 66 pf/100 m maximum capacitance unbalance
- White/blue and blue, white/orange and orange, white/green and green, white/brown and brown pair color code
Specifications
Standards/Approvals: UL Listed, CSA, NEC/CEC Certified, RoHS, TIA/EI-568-C.2 Compliant
