Belden 6304UE

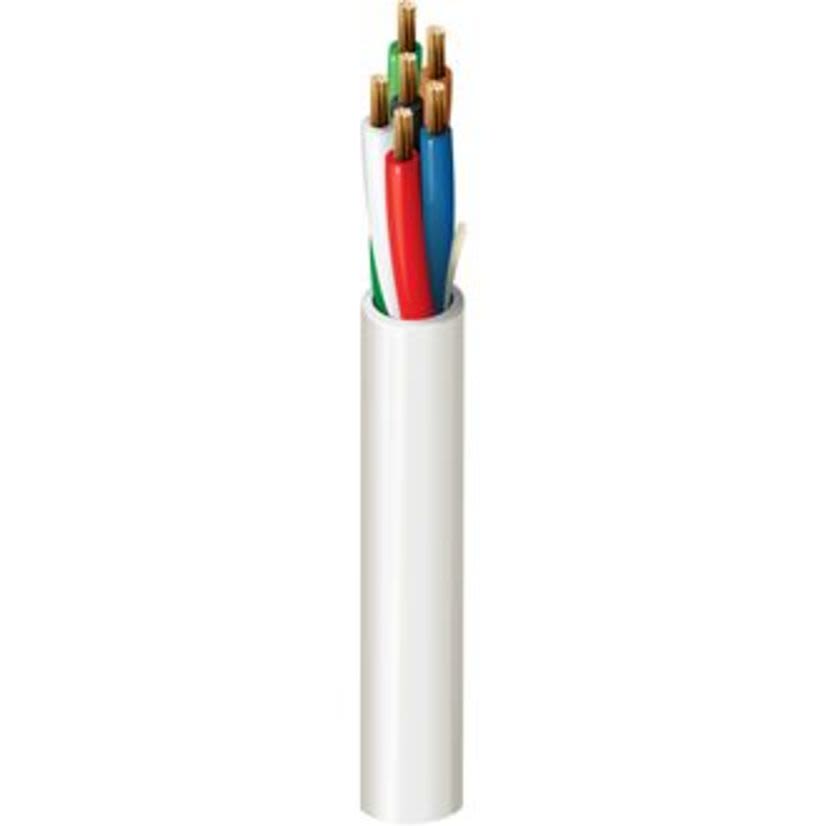

Belden 6304UE Multi-Conductor Plenum-CMP Unshielded Security and Alarm Cable, 300 V AC, (6) 18 AWG Bare Stranded Copper Conductor
Belden 6304UE
Belden 6304UE Multi-Conductor Plenum-CMP Unshielded Security and Alarm Cable, 300 V AC, (6) 18 AWG Bare Stranded Copper ConductorNon-stock product. Available to order - lead time may vary.
Non-stock product. Available to order - lead time may vary.
Product Description
Belden Security and Alarm Cable, Multi-Conductor Plenum-CMP Unshielded, 300 V AC, 3.5 A, 6 Conductors, Bare Stranded Copper Conductor, 18 AWG Conductor, 5.486 mm OD, 7 Strands, 21.3265 Ohm Resistance, PVC Insulation, PVC Jacket, 0 to 75 deg C
Attributes
Documents
Applications
Features
Specifications
Attributes
Conductor size18 AWG
Conductor TypeBare Stranded Copper
Insulation MaterialPVC
Jacket MaterialPVC
ManufacturerBelden
Number of Conductors6
Outside Diameter5.486 mm
Resistance21.3265 Ohm
Strands7
Temperature Rating0 to 75 deg C
TypeMulti-Conductor Plenum-CMP Unshielded
Voltage Rating300 V AC
Applications
Commercial Applications
Features
- 597.838 N maximum recommended pulling tension
- 57.15 mm minimum bend radius/minor axis
- 137.802 pF/m nominal conductor to conductor capacitance
- 249.356 pF/m nominal conductor to other conductor and shield capacitance
- 21.32 Ohm/km at 20 deg C nominal conductor DC resistance
- 42.981 Ohm/km at 20 deg C nominal outer shield DC resistance
- Black, red, white, green, brown, blue, orange and yellow overall cabling color code
- Beldfoil aluminum foil polyester tape shield and Flamarrest jacket with ripcord
- 24 AWG 7x32 tinned copper outer shield drain wire
Specifications
Standards/Approvals: CE Certified, MIL-W-16878/4, MIL-W-16878/4 (Type E) Specification, RoHS Compliant
