Belden 1872A

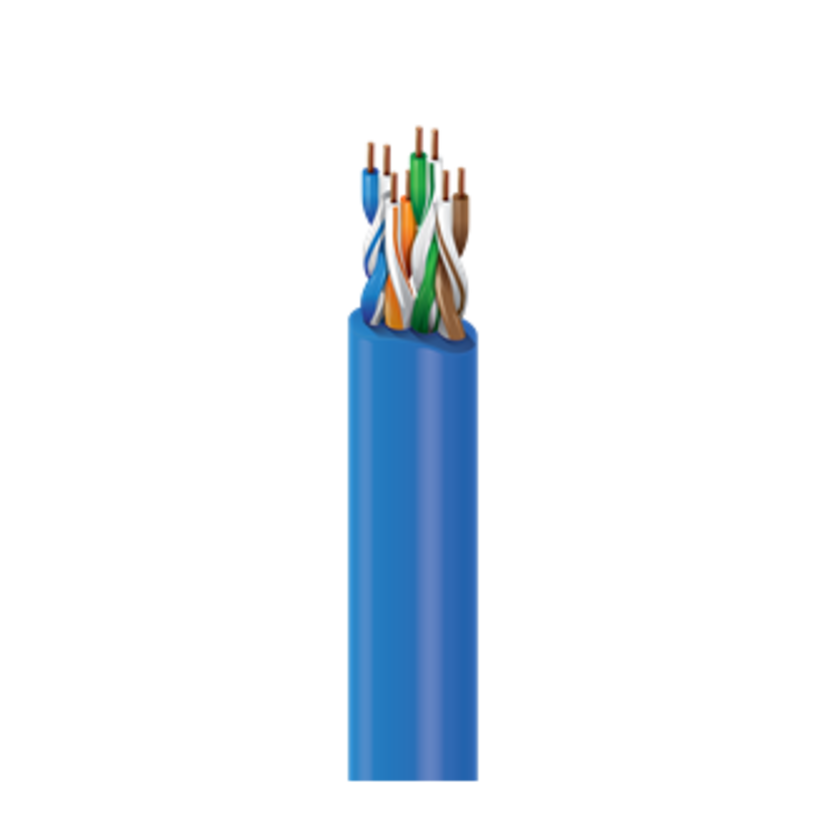

Omni Cable 1872A Cat 6 Enhanced CMR Riser Cable, 300 V AC, (8) 23 AWG U/UTP Bare Solid Copper Conductor
Belden 1872A
Omni Cable 1872A Cat 6 Enhanced CMR Riser Cable, 300 V AC, (8) 23 AWG U/UTP Bare Solid Copper ConductorNon-stock product. Available to order - lead time may vary.
BrandBelden
MFG #1872A
Werner Part #3975360
UPC612825125402
Non-stock product. Available to order - lead time may vary.
BrandBelden
MFG #1872A
Werner Part #3975360
UPC612825125402
Product Description
Omni Cable Riser Cable, Cat 6 Enhanced CMR, 300 V AC, 8 Conductors, U/UTP Bare Solid Copper Conductor, 23 AWG Conductor, 0.365 x 0.165 in OD, Polyolefin Insulation, PVC Jacket, -20 to 80 deg C
Attributes
Applications
Features
Attributes
Conductor size23 AWG
Conductor TypeU/UTP Bare Solid Copper
Insulation MaterialPolyolefin
Jacket ColorBlue
Jacket MaterialPVC
ManufacturerOmni Cable
Number of Conductors8
Outside Diameter0.365 x 0.165 in
Resistance7.5 Ohm
Series1872A
Temperature Rating-20 to 80 deg C
TypeCat 6 Enhanced CMR
Voltage Rating300 V AC
Applications
Premise Horizontal Cable, Gigabit Ethernet, POE, POE+,100BaseTX, 100BaseVG ANYLAN, 155ATM, 622ATM, NTSC/PAL Component or Composite Video, AES/EBU, Digital Video, RS-422, Noisy Environments
Features
- 45 lb maximum recommended pulling tension
- 1/2 in minimum bending radius/minor axis
- White/brown stripe and brown code
- 1-1/2 in minimum bend/installation
- 15 pF/ft capacitance, 49 pF/100 m maximum capacitance unbalance
- 70% nominal velocity of propagation
- 510 ns/100 m at 100 MHz maximum delay, 25 ns/100 m delay skew
