BURNDY YCHC39TC31

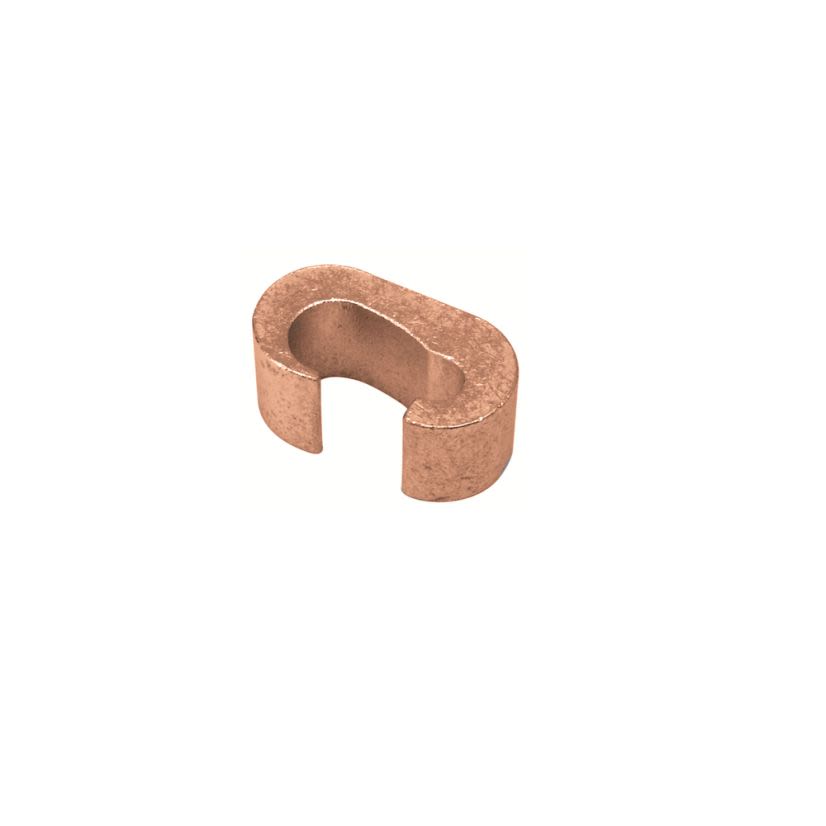

BURNDY CRIMPIT YCHC39TC31 Type YCHC Compression C-Tap, C Shape, 500 to 750 kcmil Main/Run, 2 AWG, 250 to 350 kcmil Tap, Copper
BURNDY YCHC39TC31
BURNDY CRIMPIT YCHC39TC31 Type YCHC Compression C-Tap, C Shape, 500 to 750 kcmil Main/Run, 2 AWG, 250 to 350 kcmil Tap, CopperNon-stock product. Available to order - lead time may vary.
BrandBURNDY
MFG #YCHC39TC31
Werner Part #3793311
UPC781810013786
Non-stock product. Available to order - lead time may vary.
BrandBURNDY
MFG #YCHC39TC31
Werner Part #3793311
UPC781810013786
Product Description
BURNDY CRIMPIT Compression C-Tap, Type YCHC, C, 500 to 750 kcmil Main/Run Size, 2 AWG, 250 to 350 kcmil Tap, Commercial Stranded/Flexible Copper Conductor, Specifications: 1103 Element A Die Index, 1-3/8 in L Wire Strip, 90 deg C, Copper, Electro-Tin Coated, 1.31 in L x 1.53 in W x 2.96 in H
Attributes
Documents
Applications
Features
Specifications
Attributes
Conductor TypeCommercial Stranded/Flexible Copper
Country of OriginUS
Dimensions1.31 in L x 1.53 in W x 2.96 in H
FinishElectro-Tin Coated
ManufacturerHubbell
MaterialCopper
Package Height2.36 IN
Package Length1.31 in
Package TypeEACH
Package Weight0.76 lb
Package Width1.53 in
Temperature Rating90 deg C
TypeType YCHC
Type / StyleType YCHC
Documents
Applications
General Purpose
Features
- Range taking C-tap that allows for less inventory as one C-tap can accommodate a multitude of wire combinations
- Manufactured from high conductivity wrought copper providing low resistance for excellent electrical conductivity
- Electro-tin plated unless otherwise specified to reduce galvanic corrosion (bimetallic) and resist corrosive elements
- Connectors are clearly marked with stamping
Specifications
1103 Element A Die Index, 1-3/8 in L Wire Strip
