BURNDY YAZ282N

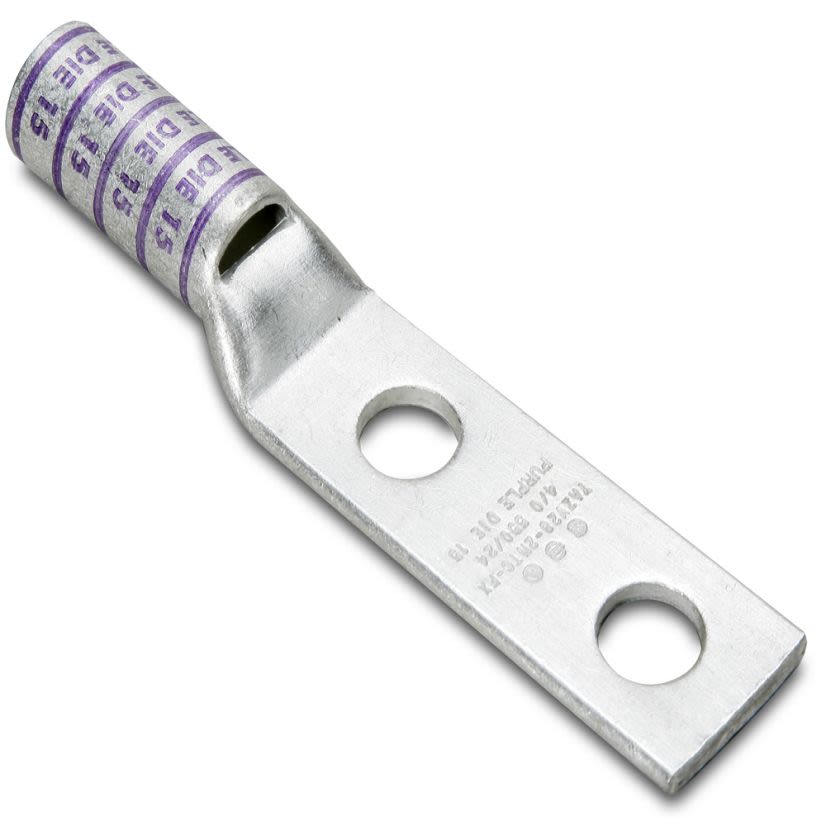

BURNDY HYLUG YAZ282N YAZ-2N 2-Hole Compression Lug With Inspection Window, 4/0 AWG Stranded Copper Conductor, Die Code: 15, 1/2 in Stud, Tin Plated Copper
BURNDY YAZ282N
BURNDY HYLUG YAZ282N YAZ-2N 2-Hole Compression Lug With Inspection Window, 4/0 AWG Stranded Copper Conductor, Die Code: 15, 1/2 in Stud, Tin Plated CopperOut of Stockmore info
|
BrandBURNDY
MFG #YAZ282N
Werner Part #3798895
UPC781810208595
Out of Stockmore info
|
BrandBURNDY
MFG #YAZ282N
Werner Part #3798895
UPC781810208595
Product Description
BURNDY HYLUG Compression Lug, 2-Hole, Series: YAZ-2N, Stranded Copper Conductor, 4/0 AWG Conductor, Die Code: 15, 600 V AC to 35 kV, 1/2 in Stud, Straight Tongue, 1.02 in W x 0.14 in THK Tongue, 5.15 in Overall Length, Long/Skived Barrel, 1.62 in L Barrel, 1-11/16 in L Wire Strip, 1-3/4 in Hole Spacing, 90 deg C, Tin Plated Copper, Purple
Attributes
Documents
Applications
Features
Included
Specifications
Attributes
Barrel Size1.62 in L
Barrel TypeLong/Skived
ColorPurple
Conductor size4/0 AWG
Conductor TypeStranded Copper
Country of OriginUS
Die Code15
ManufacturerHubbell
MaterialTin Plated Copper
Overall Length5.15 in
Package Height0.69 in
Package Length0 in
Package TypeEACH
Package Weight0.22 lb
Package Width0 in
SeriesYAZ-2N
Stud Size1/2 in
Temperature Rating90 deg C
Tongue Size1.02 in W x 0.14 in THK
Tongue TypeStraight
Type2-Hole
Type / Style2-Hole
Voltage Rating600 V AC to 35 kV
Documents
Applications
For code conductor
Features
- Barrel is designed with an internal chamfer at the wire entry to ensure smooth insertion of the wire, preventing possible damaging of the strands
- Electro-tin plated unless otherwise specified to reduce galvanic corrosion (bimetallic) and resist corrosive elements
- Connectors are clearly marked with stamping and barrel color coding
Included
(1) Mechanical MD6, OUR840, MD7-34R Tool, (1) Hydraulic: BCT500HS, Y500CTHS Tool, (4) W28RT Die, (6) X28RT Die, (1) Y35, Y39, Y46, Y750, PAT750 Tool, (2) U28RT Die, (2) U28RT Die with PUADP-1 Adapter, (1) Dieless Tools (Number of Crimps): Y644HS Tool, Y81KFT, Y81KFTMBH, PAT81KFT-18V, MY29-3, (2) MY29-11 Tool, (4) MRC840 Tool
Specifications
1-11/16 in L Wire Strip, 1-3/4 in Hole Spacing
