BURNDY YA31A3

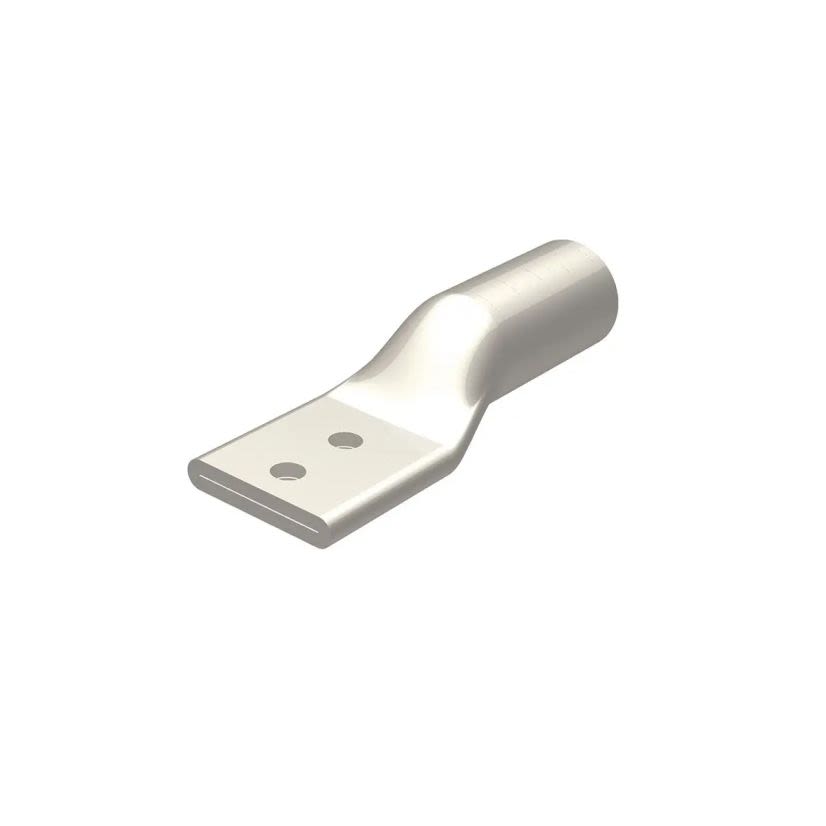

BURNDY HYLUG YA31A3 YA-E 2-Hole Uninsulated Compression Lug, 350 kcmil Copper/Stranded Aluminum Conductor, Die Code: 299, 1/2 in Stud, Aluminum
BURNDY YA31A3
BURNDY HYLUG YA31A3 YA-E 2-Hole Uninsulated Compression Lug, 350 kcmil Copper/Stranded Aluminum Conductor, Die Code: 299, 1/2 in Stud, AluminumNon-stock product. Available to order - lead time may vary.
BrandBURNDY
MFG #YA31A3
Werner Part #348452
UPC781810755808
Non-stock product. Available to order - lead time may vary.
BrandBURNDY
MFG #YA31A3
Werner Part #348452
UPC781810755808
Product Description
BURNDY HYLUG Compression Lug, 2-Hole Uninsulated, Series: YA-E, Copper/Stranded Aluminum Conductor, 350 kcmil Conductor, Die Code: 299, 600 V AC to 35 kV, 1/2 in Stud, Standard/Straight Tongue, 3.11 in L x 1.52 in W x 0.39 in THK Tongue, 6.07 in Overall Length, Beveled Barrel, 1.85 in L Barrel, 2-1/8 in L Wire Strip, 90 deg C, Aluminum, Brown
Attributes
Documents
Applications
Features
Specifications
Attributes
Barrel Size1.85 in L
Barrel TypeBeveled
ColorBrown
Conductor size350 kcmil
Conductor TypeCopper/Stranded Aluminum
Country of OriginMX
Die Code299
ManufacturerHubbell
MaterialAluminum
Overall Length6.07 in
Package Height1.11 in
Package Length0 in
Package TypeEACH
Package Weight0.35 lb
Package Width0 in
SeriesYA-E
Stud Size1/2 in
Temperature Rating90 deg C
Tongue Size3.11 in L x 1.52 in W x 0.39 in THK
Tongue TypeStandard/Straight
Type2-Hole Uninsulated
Type / Style2-Hole Uninsulated
Voltage Rating600 V AC to 35 kV
Documents
Applications
For aluminum and copper conductors
Features
- Barrel is designed with an internal chamfer at the wire entry to ensure smooth insertion of the wire, preventing possible damage of the wire strands during insertion
- Electro-tin plated unless otherwise specified to reduce galvanic corrosion (bimetallic) and resist corrosive elements
- Connectors are clearly marked with wire size, die index, color code, and crimp location bands
- Factory pre-filled with PENETROX Type A13 oxide inhibitor
- Color coded end caps are factory inserted in the barrels to match the die color code and prevent foreign materials from entering the barrel
- Aluminum oxidation is not easily detected but causes resistance in a connection, it is imperative the proper preparation takes place prior to making an aluminum-to-aluminum connection
Specifications
2-1/8 in L Wire Strip
