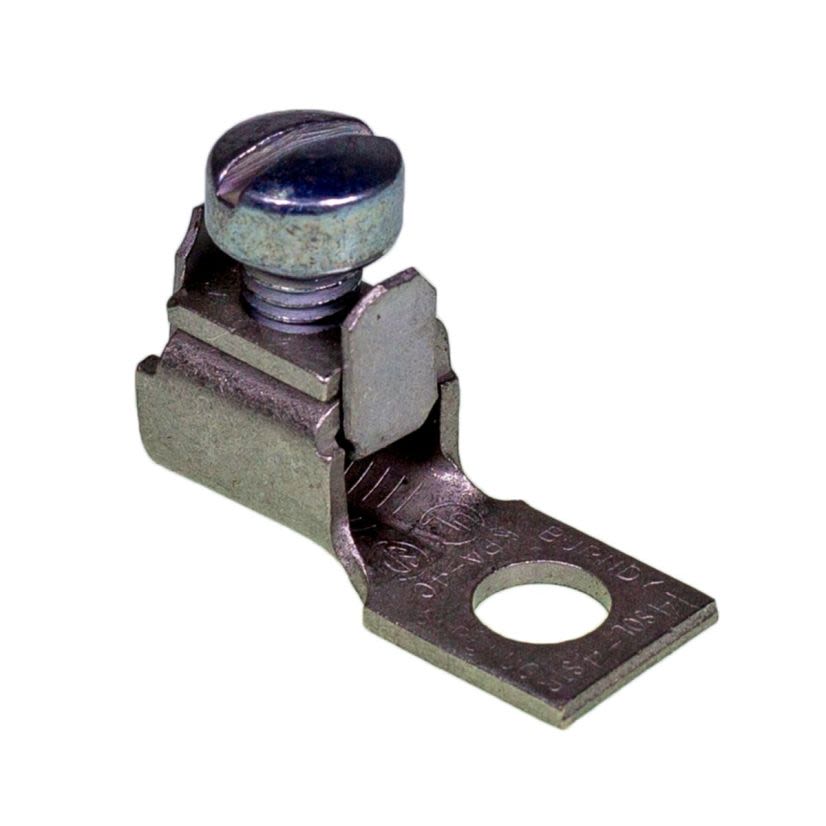

BURNDY KPA4C
BURNDY SCRULUG KPA4C Mechanical Bolted Lug and Terminal, 14 to 4 AWG Stranded Solid Copper Conductor, 1/4 in Stud, 1 Bolt Hole, Copper
BURNDY KPA4C
BURNDY SCRULUG KPA4C Mechanical Bolted Lug and Terminal, 14 to 4 AWG Stranded Solid Copper Conductor, 1/4 in Stud, 1 Bolt Hole, CopperNon-stock product. Available to order - lead time may vary.
Non-stock product. Available to order - lead time may vary.
Product Description
BURNDY SCRULUG Bolted Lug and Terminal, Mechanical, Series: KPA, Stranded Solid Copper Conductor, 14 to 4 AWG Conductor, 1/4 in Stud, 1 Bolt Hole, 0.5 in W x 0.06 in THK Tongue, Straight Tongue, Specifications: (1) Slotted Robertson Screw Set, 50 in-lb Installation Torque, Copper, Electro-Zinc Plated, 1.22 in L x 0.94 in H Dimensions
Attributes
Documents
Applications
Features
Specifications
Attributes
Conductor size14 to 4 AWG
Conductor TypeStranded Solid Copper
Country of OriginUS
Dimensions1.22 in L x 0.94 in H
FinishElectro-Zinc Plated
ManufacturerHubbell
MaterialCopper
Number of Bolt Holes1
Package TypeEACH
SeriesKPA
Stud Size1/4 in
Tongue Size0.5 in W x 0.06 in THK
Tongue TypeStraight
TypeMechanical
Type / StyleMechanical
Documents
Applications
For joining a wide range of cable to equipment pads or terminal blocks, especially good in light industrial
Features
- Tongue and body are 1-piece design, pressure bar equalizes pressure over the conductor and prevents the screw from cutting into the cable
Specifications
(1) Slotted Robertson Screw Set, 50 in-lb Installation Torque
