BURNDY K2A26U

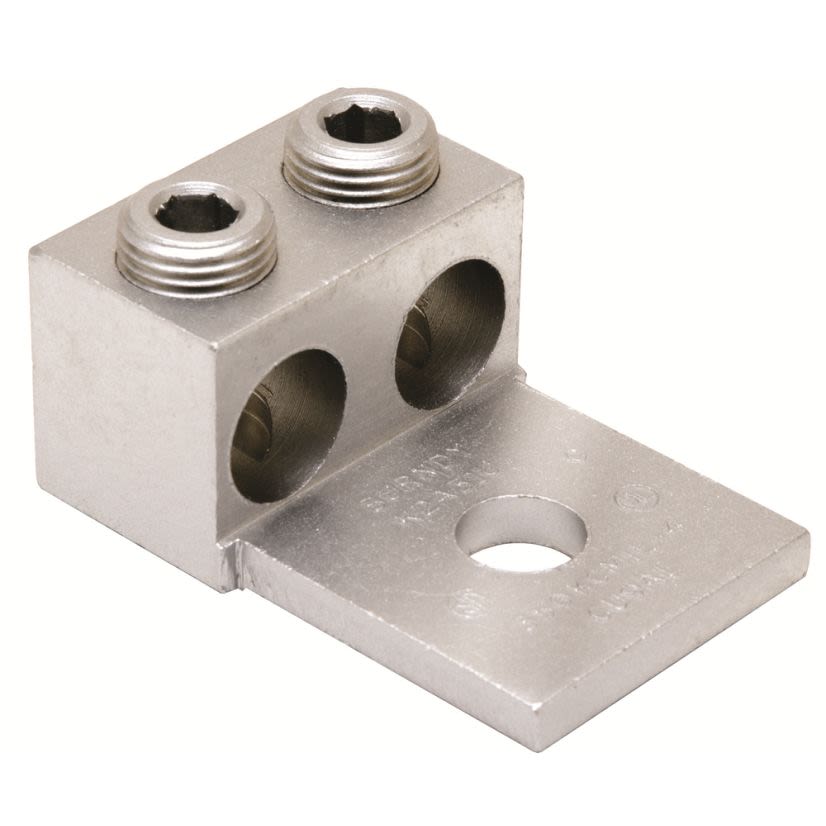

BURNDY K2A26U K2A-U Dual Rated Universal Mechanical Bolted Lug and Terminal, 14 to 2/0 AWG Conductor Copper/Stranded Aluminum Conductor, 1/4 in Stud, 1 Bolt Holes
BURNDY K2A26U
BURNDY K2A26U K2A-U Dual Rated Universal Mechanical Bolted Lug and Terminal, 14 to 2/0 AWG Conductor Copper/Stranded Aluminum Conductor, 1/4 in Stud, 1 Bolt HolesIn Stock: 1more info
|
BrandBURNDY
MFG #K2A26U
Werner Part #355432
UPC781810600054
In Stock: 1more info
|
BrandBURNDY
MFG #K2A26U
Werner Part #355432
UPC781810600054
Product Description
BURNDY, K2A26U, Mechanical Bolted Lug and Terminal, Dual Rated Universal, Series: K2A-U, Copper/Stranded Aluminum Conductor, 14 to 2/0 AWG Conductor, 1/4 in Stud, 1 Bolt Holes, 1.27 in W x 0.19 in THK Tongue, Straight Tongue, 600 V, Specifications: 0.79 in H x 1.25 in W Collar, (2) Slotted Screw, 50 in-lb Installation Torque, 2-Conductor, 194 deg F, Electro-Zinc Plated, 1.47 in L x 1.79 in H Dimensions
Attributes
Documents
Applications
Features
Specifications
Attributes
Conductor size14 to 2/0 AWG
Conductor TypeCopper/Stranded Aluminum
Country of OriginMX
Dimensions1.47 in L x 1.79 in H
FinishElectro-Zinc Plated
ManufacturerHubbell
MaterialAluminum
Number of Bolt Holes1
Package Height0.8 in
Package Length1.25 in
Package TypeEACH
Package Weight0.07 lb
Package Width1.5 in
SeriesK2A-U
Stud Size1/4 in
Temperature Rating194 deg F
Tongue Size1.27 in W x 0.19 in THK
Tongue TypeStraight
TypeDual Rated Universal
Type / StyleDual Rated Universal
Voltage Rating600 V
Documents
Applications
For aluminum and copper conductors
Features
- Constructed from high strength, extruded aluminum alloy
- Electro tin-plated to provide low contact resistance
Specifications
0.79 in H x 1.25 in W Collar, (2) Slotted Screw, 50 in-lb Installation Torque, 2-Conductor
