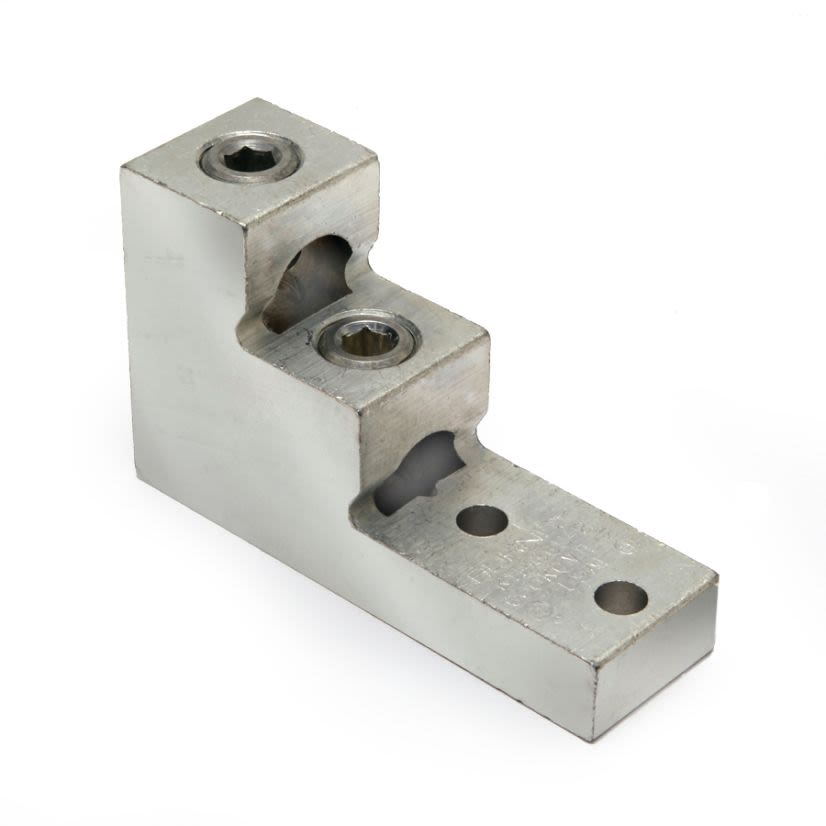

BURNDY K11A39U2

BURNDY K11A39U2 K11A-U Dual Rated Universal Mechanical Bolted Lug and Terminal, 1/0 AWG to 750 kcmil Copper/Stranded Aluminum Conductor, 3/8 in Stud, 2 Bolt Holes, Aluminum
Lug and Terminal

BURNDY K11A39U2

BURNDY K11A39U2 K11A-U Dual Rated Universal Mechanical Bolted Lug and Terminal, 1/0 AWG to 750 kcmil Copper/Stranded Aluminum Conductor, 3/8 in Stud, 2 Bolt Holes, Aluminum
Non-stock product. Available to order - lead time may vary.

BrandBURNDY

MFG #K11A39U2

Werner Part #343278

UPC781810370292

Non-stock product. Available to order - lead time may vary.

BrandBURNDY

MFG #K11A39U2

Werner Part #343278

UPC781810370292

Product Description

BURNDY Mechanical Bolted Lug and Terminal, Dual Rated Universal, Series: K11A-U, Copper/Stranded Aluminum Conductor, 1/0 AWG to 750 kcmil Conductor, 3/8 in Stud, 2 Bolt Holes, 2.31 in W x 0.75 in THK Tongue, Straight Tongue, Specifications: (2) Hex Screw, 1.38 in Mounting Hole Spacing, 2-Conductor, 194 deg F, Aluminum, Electro-Zinc Plated, 4.91 in L x 1.69 in W x 3.02 in H Dimensions
Attributes
Conductor size1/0 AWG to 750 kcmil
Conductor TypeCopper/Stranded Aluminum
Country of OriginMX
Dimensions4.91 in L x 1.69 in W x 3.02 in H
FinishElectro-Zinc Plated
ManufacturerHubbell
MaterialAluminum
Number of Bolt Holes2
Package Height3.02 in
Package Length8.1 IN
Package TypeEACH
Package Weight1.17 lb
Package Width3.4 in
SeriesK11A-U
Stud Size3/8 in
Temperature Rating194 deg F
Tongue Size2.31 in W x 0.75 in THK
Tongue TypeStraight
TypeDual Rated Universal
Type / StyleDual Rated Universal
