Arlington 7510AST

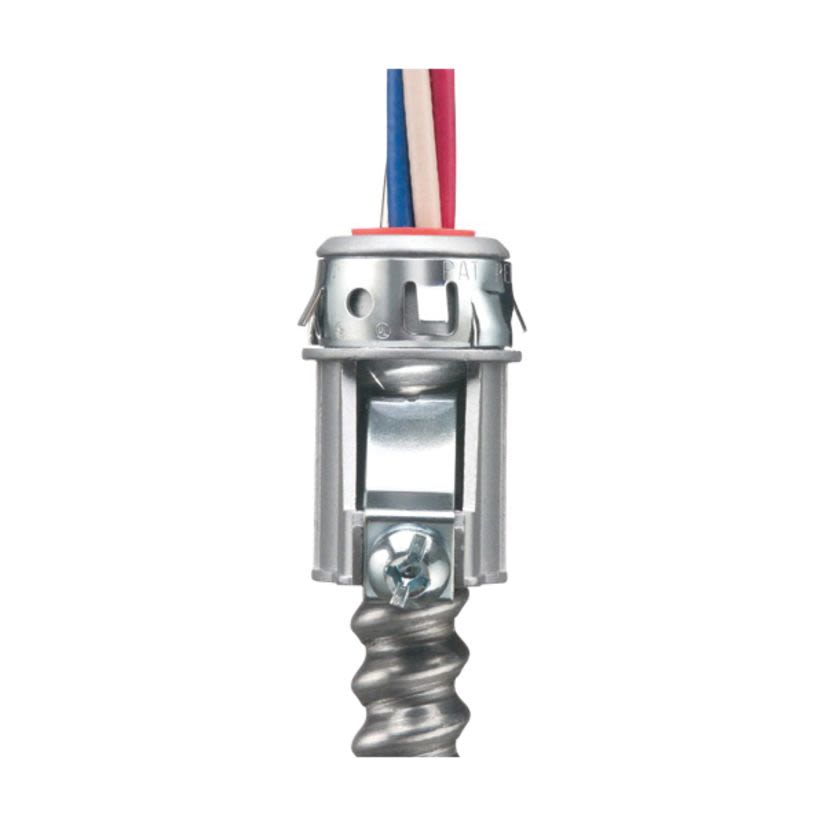

Arlington SNAP-TITE Snap2IT 7510AST Cable Connector With Insulated Throat, 3/4 in Trade, 3/4 in Knockout, 0.895 to 1.11 in Cable Openings, Die Cast Zinc
Arlington 7510AST
Arlington SNAP-TITE Snap2IT 7510AST Cable Connector With Insulated Throat, 3/4 in Trade, 3/4 in Knockout, 0.895 to 1.11 in Cable Openings, Die Cast ZincIn Stock: 196more info
|
BrandArlington
MFG #7510AST
Werner Part #3900233
UPC018997550903
In Stock: 196more info
|
BrandArlington
MFG #7510AST
Werner Part #3900233
UPC018997550903
Product Description
Arlington SNAP-TITE Snap2IT Cable Connector, 3/4 in Trade, 3/4 in Knockout, Cable Openings: 0.895 to 1.11 in, Aluminum/Steel/AC/AC90/ACG90/HCF/MC/MCI/MCI-A/MC-PCS Cable, Push-On Connection, Die Cast Zinc, Silver, 2.496 in H x 1.709 in W Dimensions
Attributes
Documents
Applications
Warranty
Features
Attributes
Cable Openings0.895 to 1.11 in
ColorSilver
Connection TypePush-On
Country of OriginUS
Dimensions2.496 in H x 1.709 in W
Knockout Size3/4 in
ManufacturerArlington
MaterialDie Cast Zinc
Package Height1.3 IN
Package Length2.5 in
Package TypeEACH
Package Weight0.13 lb
Package Width1.71 in
Trade Size3/4 in
Type of CableAluminum/Steel/AC/AC90/ACG90/HCF/MC/MCI/MCI-A/MC-PCS
Documents
Applications
For steel and aluminum flexible conduit
Warranty
1 Year
Features
- Installs as fast and costs the same as our other Snap2IT fitting, but cable insertion is even easier!
- Simply snap the cable into the fitting and snap it into the box, no tools needed! the screw only holds the clip-in place
- Widest cable ranges, accommodates cable from 14/2 to 10/4 AWG
- Super secure the angled, (2) prong clip locks down on MC cable so there no chance of pullout
- Cable is removable, simply loosen the screw-on top
- Cable connector snaps quickly on to the conduit with a removable screw-in spring steel clip and then snaps into knockout with external spring steel clip, no tools required
- Concrete tight when taped
- Snaps into knockout with external spring steel clip
