Arlington 3810AST

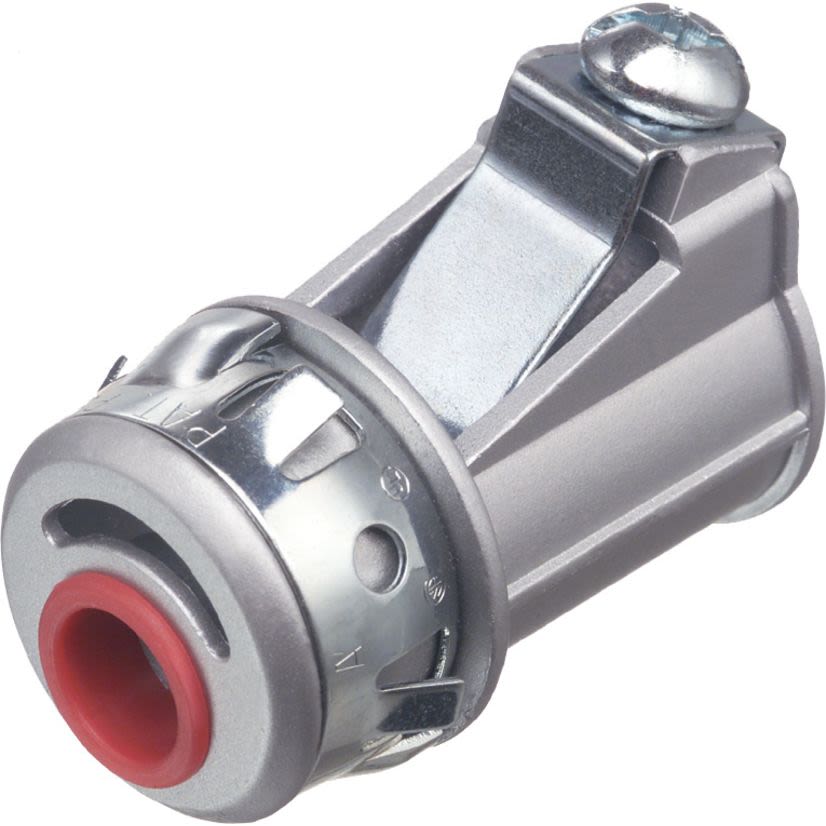

Arlington Snap2IT 3810AST Straight Cable Connector With Insulated Throat, Angled Prong Clip, 3/8 in Trade, 3/8 in Knockout, 0.37 to 0.49 in Cable Openings, Die Cast Zinc
Arlington 3810AST
Arlington Snap2IT 3810AST Straight Cable Connector With Insulated Throat, Angled Prong Clip, 3/8 in Trade, 3/8 in Knockout, 0.37 to 0.49 in Cable Openings, Die Cast ZincIn Stock: 421more info
|
BrandArlington
MFG #3810AST
Werner Part #2422106
UPC018997003850
In Stock: 421more info
|
BrandArlington
MFG #3810AST
Werner Part #2422106
UPC018997003850
Product Description
Arlington Snap2IT Cable Connector, Straight, 3/8 in Trade, 3/8 in Knockout, Cable Openings: 0.37 to 0.49 in, Aluminum/Steel/Flex/AC/AC90/ACG90/HCF/MC/MCI-A/MC-PCS Cable, Snap-In Connection, Die Cast Zinc, Silver, 1.473 in L x 1.179 in W Dimensions
Attributes
Documents
Applications
Features
Specifications
Warranty
Attributes
Cable Openings0.37 to 0.49 in
ColorSilver
Connection TypeSnap-In
Country of OriginUS
Dimensions1.473 in L x 1.179 in W
GTIN00018997003850
Knockout Size3/8 in
ManufacturerArlington
MaterialDie Cast Zinc
Package TypeEACH
Trade Size3/8 in
TypeStraight
Type / StyleStraight
Type of CableAluminum/Steel/Flex/AC/AC90/ACG90/HCF/MC/MCI-A/MC-PCS
Documents
Applications
For steel and aluminum flexible conduit
Features
- Concretetight when taped
- Simply snap the cable into the fitting and snap it into the box, no tools needed the screw only holds the clip in-place
- Widest cable ranges, accommodates cable from 14/2 to 3/3 AWG
- Super secure the angled, (2) prong clip locks down on MC cable so there no chance of pullout
- Cable is removable, simply loosen the screw-on top
- Cable connector snaps quickly on to the conduit with a removable screw-in spring steel clip and then snaps into knockout with external spring steel clip, no tools required
- Installs as fast and costs the same as our other Snap2IT fitting, but cable insertion is even easier
- Snaps into knockout with external spring steel clip
- CSA certified with anti-short bushing only
Specifications
ARRA Compliant|Buy American Act Compliant|RoHS Compliant|CSA File No. LR49636|cULus 372D|UL Listed
Warranty
1 year
