Appleton LC125DCG

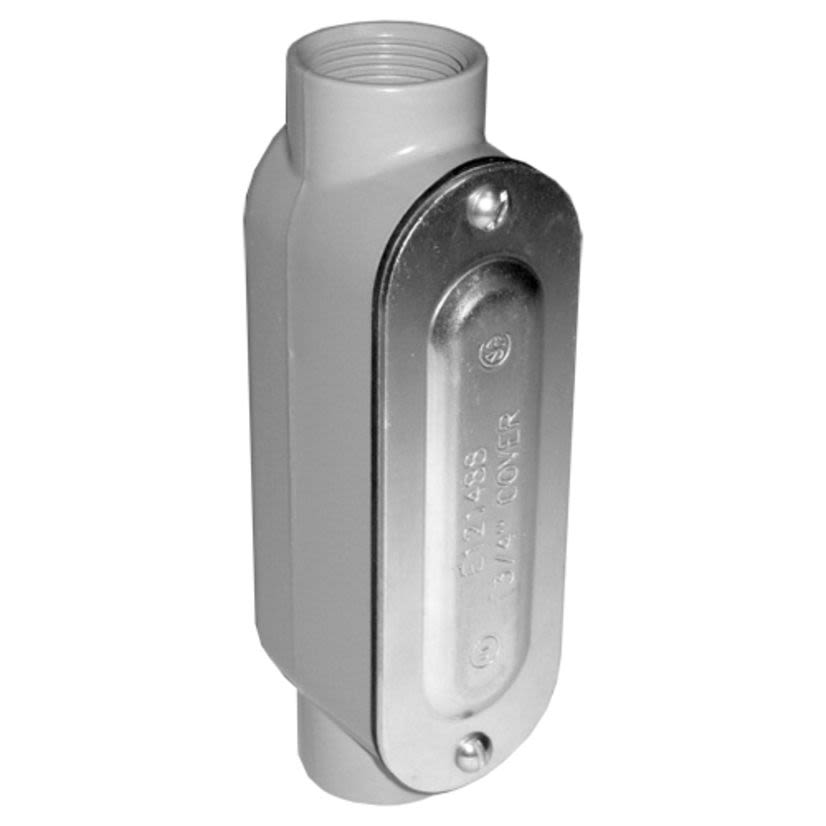

Appleton NEER LC125DCG Type LC Conduit Outlet Body, 1-1/2 in Hub, 33.4 cu-in Capacity, Die-Cast Aluminum, Epoxy Powder Coated
Appleton LC125DCG
Appleton NEER LC125DCG Type LC Conduit Outlet Body, 1-1/2 in Hub, 33.4 cu-in Capacity, Die-Cast Aluminum, Epoxy Powder CoatedIn Stock: 3more info
|
BrandAppleton
MFG #LC125DCG
Werner Part #3798791
UPC687855000623
In Stock: 3more info
|
BrandAppleton
MFG #LC125DCG
Werner Part #3798791
UPC687855000623
Product Description
Appleton NEER Conduit Outlet Body, Type LC, 1-1/2 in Hub, 2 Hubs, 33.4 cu-in Capacity, Thread Connection, Die-Cast Aluminum, Epoxy Powder Coated, 8.45 in L x 2.49 in W x 2.97 in H Dimensions
Attributes
Documents
Applications
Features
Attributes
Capacity33.4 cu-in
Connection TypeThread
Country of OriginIN
Dimensions8.45 in L x 2.49 in W x 2.97 in H
FinishEpoxy Powder Coated
Hub Size1-1/2 in
ManufacturerEmerson Electric
MaterialDie-Cast Aluminum
Number of Hubs2
Package Height5 in
Package Length11 in
Package TypeEACH
Package Weight2 lb
Package Width6 in
TypeType LC
Type / StyleType LC
Applications
For use to provide access to the interior of the raceway for wire pulling, splicing and maintece, allows connection of straight and branch conduit runs, 90 deg bends and use with rigid, IMC and EMT conduit applications
Features
- Lightweight aluminum facilitates shipping, handling and installing
- (3) 2 AWG conductors
