Appleton 846-150

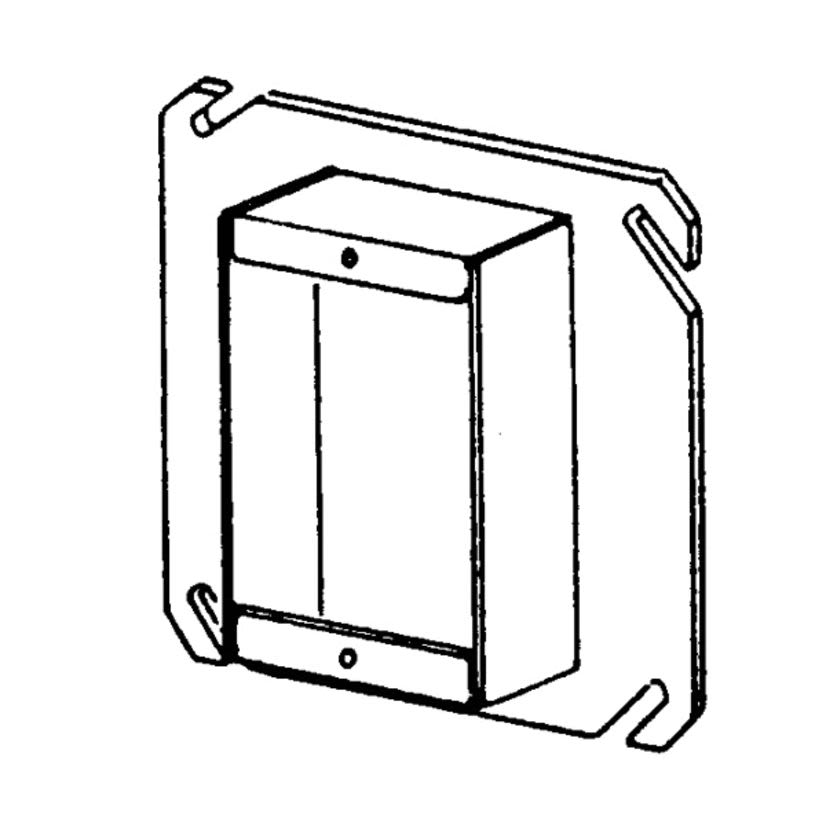

Appleton ETP 846-150 1-Device Raised Electrical Box Cover, 4 in L x 4 in W x 1-1/2 in D, Steel
Appleton 846-150
Appleton ETP 846-150 1-Device Raised Electrical Box Cover, 4 in L x 4 in W x 1-1/2 in D, SteelOut of Stockmore info
|
Out of Stockmore info
|
Product Description
Appleton ETP Electrical Box Cover, 1-Device Raised, 1 Gang, 4 in Length, 4 in Width, 1-1/2 in Depth, Squared, 11 cu-in, Steel, Galvanized
Attributes
Documents
Applications
Warranty
Features
Attributes
Capacity11 cu-in
Country of OriginUS
FinishGalvanized
ManufacturerEmerson Electric
MaterialSteel
Number of Gangs1
Package Height0.35 in
Package Length11.4 IN
Package TypeEACH
Package Weight0.48 lb
Package Width9.1 in
ShapeSquared
Type / Style1-Device Raised
Documents
Applications
Commercial and Industrial Applications
Warranty
Limited
Features
- Boxes with concentric or eccentric knockouts are suitable for bonding without any additional bonding means where used in circuits above or below 250 VAC
- Unless otherwise noted all concentric or eccentric knockouts are 1/2 - 3/4 in combinations
- Single and 2-gang metallic outlet and switch boxes are acceptable for use in two-hour fire rated walls
- Groundskeeper raised ground feature on boss inside box provides one or two #10-32 tapped hole, allowing a 3/8 in long green ground screw to be threaded into box without contacting mounting surface
- Other boxes provided with flat ground tapped hole except plenum boxes
- Plaster rings/mud rings
