Appleton TB27SA

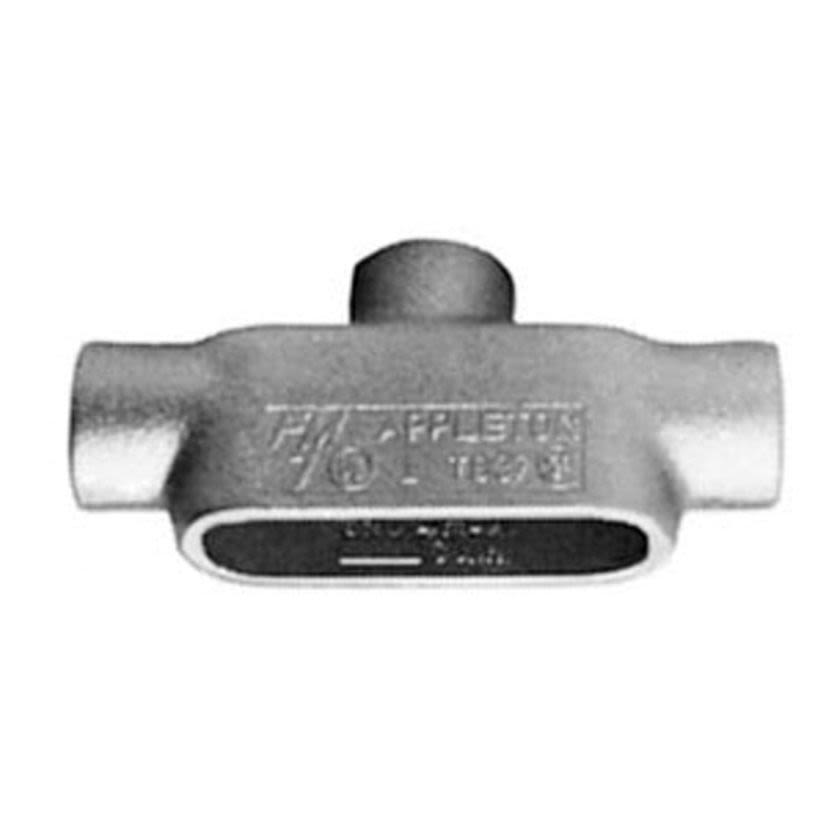

Appleton UNILETS TB27SA Type TB Conduit Outlet Body, 3/4 in Hub, Form 7, 10 cu-in, Cast Aluminum, Epoxy Powder Coated
Appleton TB27SA
Appleton UNILETS TB27SA Type TB Conduit Outlet Body, 3/4 in Hub, Form 7, 10 cu-in, Cast Aluminum, Epoxy Powder CoatedNon-stock product. Available to order - lead time may vary.
BrandAppleton
MFG #TB27SA
Werner Part #1120562
UPC781381601061
Non-stock product. Available to order - lead time may vary.
BrandAppleton
MFG #TB27SA
Werner Part #1120562
UPC781381601061
Product Description
Appleton UNILETS Conduit Outlet Body, Type TB, 3/4 in Hub, 3 Hubs, 10 cu-in Capacity, Form 7 Form, NEMA FB-1 Enclosure, Tapered FNPT Connection, Surface Mounting, Cast Aluminum, Epoxy Powder Coated Finish, 6.25 in L x 1.88 in W x 2.88 in H Dimensions
Attributes
Documents
Applications
Warranty
Features
Attributes
Body Type3/4 in
Capacity10 cu-in
Connection TypeTapered FNPT
Country of OriginMX
Dimensions6.25 in L x 1.88 in W x 2.88 in H
Enclosure TypeNEMA FB-1
FinishEpoxy Powder Coated
FormForm 7
Hub Size3/4 in
ManufacturerEmerson Electric
MaterialCast Aluminum
Mounting TypeSurface
Number of Hubs3
Package TypeEACH
TypeType TB
Type / StyleType TB
Applications
For Rigid Steel/Aluminum and IMC Conduit
Warranty
1 Year
Features
- Smooth, rounded integral bushing in hubs protects conductor insulation
- Accurately tapped, tapered threads for tight, rigid joints and excellent ground continuity
- Wedge-Lok form-in-place covers with integral gasket are approved for use in wet locations
- Grayloy iron bodies with cast covers and gasket are approved for use in wet locations
- Unique Wedge-Lok clip cover design allows easy removal at any later time, without damaging the conduit body and cover is secured with clips, not screws
- Completely interchangeable with Crouse-Hinds Form 7 bodies, gaskets and covers
- Equivalent FM7 and Form 7 units have identical applications and installation dimensions
- Flat back design provides greater cubic content for easier wire pulling, and more room for splicing
- Fits flush and snug against flat surfaces for more stable installation
- Smooth hub bushings and cover openings protect conductor insulation
- Smooth hub openings allow easy conduit joining
- Pan head cover screws secure cover clips and provide superior screwdriver seating and torque
- Cover screws and clips are captive to prevent loss
- Hub size, body style, compliance data, maximum wire number/size and cubic capacity molded into body
