Appleton LR50-M

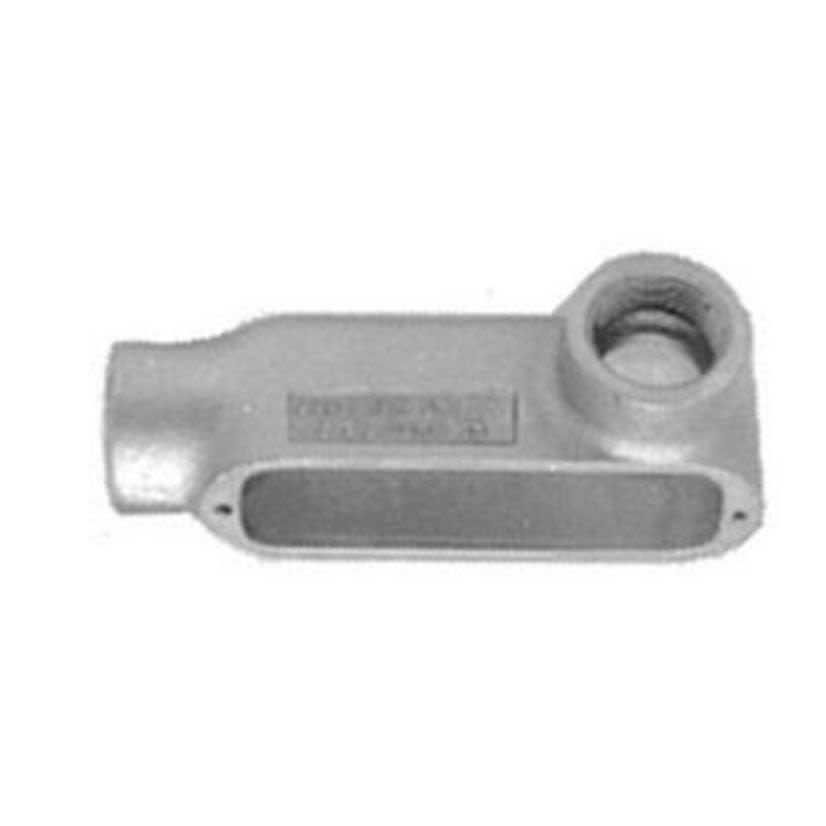

Appleton UNILETS LR50-M Type LR Conduit Outlet Body, Form 35 Form, 4.5 cu-in Capacity, Malleable Iron, Triple Coated
Appleton LR50-M
Appleton UNILETS LR50-M Type LR Conduit Outlet Body, Form 35 Form, 4.5 cu-in Capacity, Malleable Iron, Triple CoatedIn Stock: 3more info
|
In Stock: 3more info
|
Product Description
Appleton UNILETS Conduit Outlet Body, Type LR, 2 Hubs, 4.5 cu-in Capacity, Form 35 Form, NEMA FB-1 Enclosure, Tapered FNPT Connection, Surface Mounting, Malleable Iron, Triple Coated, 4.63 in L x 2 in W x 2.13 in H Dimensions
Attributes
Documents
Applications
Features
Warranty
Attributes
Capacity4.5 cu-in
Connection TypeTapered FNPT
Country of OriginMX
Dimensions4.63 in L x 2 in W x 2.13 in H
Enclosure TypeNEMA FB-1
FinishTriple Coated
FormForm 35
Hub Size0.5 in
ManufacturerEmerson Electric
MaterialMalleable Iron
Mounting TypeSurface
Number of Hubs2
Package Height0.36 in
Package Length7.5 in
Package TypeEACH
Package Weight0.75 lb
Package Width4.6 in
TypeType LR
Type / StyleType LR
Applications
For Rigid Steel/Aluminum and IMC Conduit
Features
- Smooth, rounded integral bushing in hubs protects conductor insulation
- Accurately tapped, tapered threads for tight, rigid joints and excellent ground continuity
- Form 35 malleable iron UNILETS high tensile strength and ductility
- High corrosion resistance, high impact and shock resistance
- Sizes with flat back design ideal where fitting is mounted flat against surface
Warranty
Limited
