Appleton LR100-M

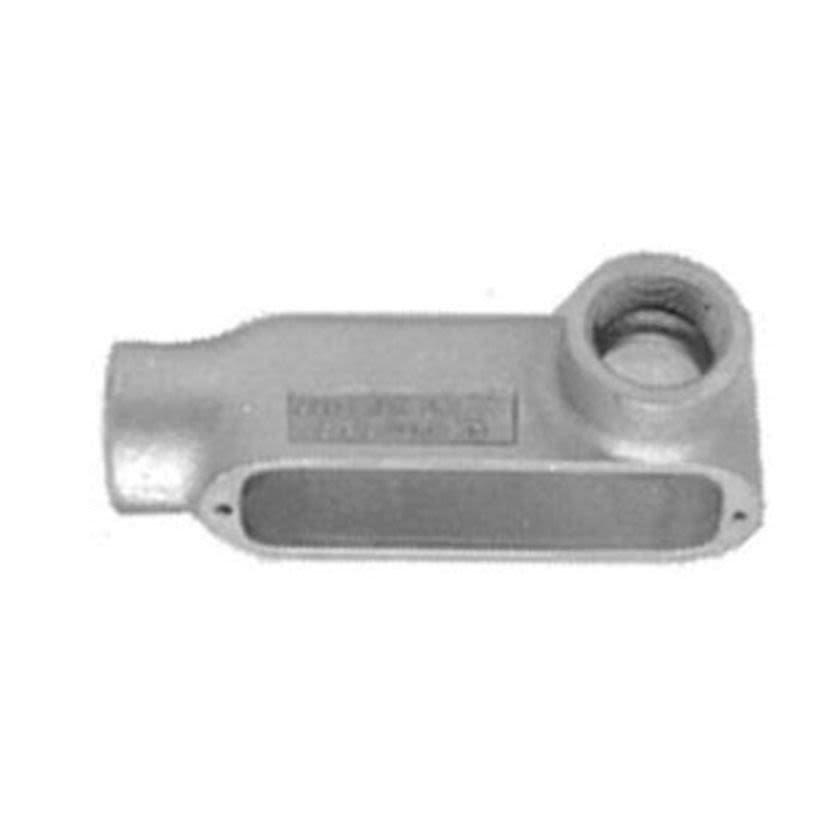

Appleton UNILETS LR100-M Type LR Conduit Outlet Body, Form 35 Form, 12.5 cu-in Capacity, Malleable Iron, Triple Coated
Appleton LR100-M
Appleton UNILETS LR100-M Type LR Conduit Outlet Body, Form 35 Form, 12.5 cu-in Capacity, Malleable Iron, Triple CoatedIn Stock: 35more info
|
BrandAppleton
MFG #LR100-M
Werner Part #16119
UPC781381481755
In Stock: 35more info
|
BrandAppleton
MFG #LR100-M
Werner Part #16119
UPC781381481755
Product Description
Appleton UNILETS Conduit Outlet Body, Type LR, 2 Hubs, 12.5 cu-in Capacity, Form 35 Form, NEMA FB-1 Enclosure, Tapered FNPT Connection, Surface Mounting, Malleable Iron, Triple Coated, 6.25 in L x 2.56 in W x 2.69 in H Dimensions
Attributes
Documents
Applications
Features
Warranty
Attributes
Capacity12.5 cu-in
Connection TypeTapered FNPT
Country of OriginMX
Dimensions6.25 in L x 2.56 in W x 2.69 in H
Enclosure TypeNEMA FB-1
FinishTriple Coated
FormForm 35
Hub Size1 in
ManufacturerEmerson Electric
MaterialMalleable Iron
Mounting TypeSurface
Number of Hubs2
Package Height0.96 in
Package Length8.4 in
Package TypeEACH
Package Weight1.7 lb
Package Width5.7 in
TypeType LR
Type / StyleType LR
Applications
For Rigid Steel/Aluminum and IMC Conduit
Features
- Smooth, rounded integral bushing in hubs protects conductor insulation
- Accurately tapped, tapered threads for tight, rigid joints and excellent ground continuity
- Form 35 malleable iron UNILETS high tensile strength and ductility
- High corrosion resistance, high impact and shock resistance
- Sizes with flat back design ideal where fitting is mounted flat against surface
Warranty
Limited
