Appleton LL37

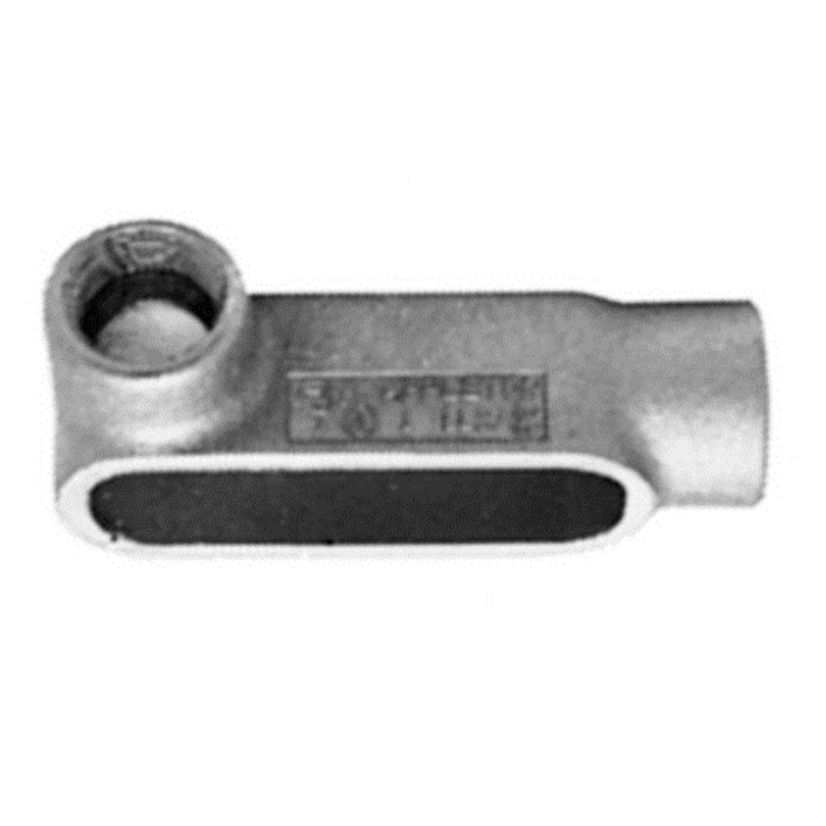

Appleton UNILETS LL37 Type LL Conduit Outlet Body, 1 in Hub, Form 7, 11 cu-in, Grayloy Iron, Triple Coated
Appleton LL37
Appleton UNILETS LL37 Type LL Conduit Outlet Body, 1 in Hub, Form 7, 11 cu-in, Grayloy Iron, Triple CoatedIn Stock: 5more info
|
BrandAppleton
MFG #LL37
Werner Part #16108
UPC781381506830
In Stock: 5more info
|
BrandAppleton
MFG #LL37
Werner Part #16108
UPC781381506830
Product Description
Appleton UNILETS Conduit Outlet Body, Type LL, 1 in Hub, 2 Hubs, 11 cu-in Capacity, Form 7 Form, NEMA FB-1 Enclosure, Tapered FNPT Connection, Surface Mounting, Grayloy Iron, Triple Coated Finish, Gray, 6 in L x 2.75 in W x 2.88 in H Dimensions
Attributes
Documents
Applications
Features
Warranty
Attributes
Capacity11 cu-in
ColorGray
Connection TypeTapered FNPT
Country of OriginMX
Dimensions6 in L x 2.75 in W x 2.88 in H
Enclosure TypeNEMA FB-1
FinishTriple Coated
FormForm 7
Hub Size1 in
ManufacturerEmerson Electric
MaterialGrayloy Iron
Mounting TypeSurface
Number of Hubs2
Package Height0.86 in
Package Length6.6 IN
Package TypeEACH
Package Weight1.84 lb
Package Width6.4 IN
TypeType LL
Type / StyleType LL
Applications
For Rigid Steel/Aluminum and IMC Conduit
Features
- Smooth, rounded integral bushing in hubs protects conductor insulation
- Accurately tapped, tapered threads for tight, rigid joints and excellent ground continuity
- Wedge-Lok form-in-place covers with integral gasket are approved for use in wet locations
- Grayloy iron bodies with cast covers and gasket are approved for use in wet locations
- Unique Wedge-Lok clip cover design allows easy removal at any later time, without damaging the conduit body and cover is secured with clips, not screws
- Completely interchangeable with Crouse-Hinds Form 7 bodies, gaskets and covers
- Equivalent FM7 and Form 7 units have identical applications and installation dimensions
- Flat back design provides greater cubic content for easier wire pulling, and more room for splicing
- Fits flush and snug against flat surfaces for more stable installation
- Smooth hub bushings and cover openings protect conductor insulation
- Smooth hub openings allow easy conduit joining
- Pan head cover screws secure cover clips and provide superior screwdriver seating and torque
- Cover screws and clips are captive to prevent loss
- Hub size, body style, compliance data, maximum wire number/size and cubic capacity molded into body
Warranty
Limited
