Appleton LB67

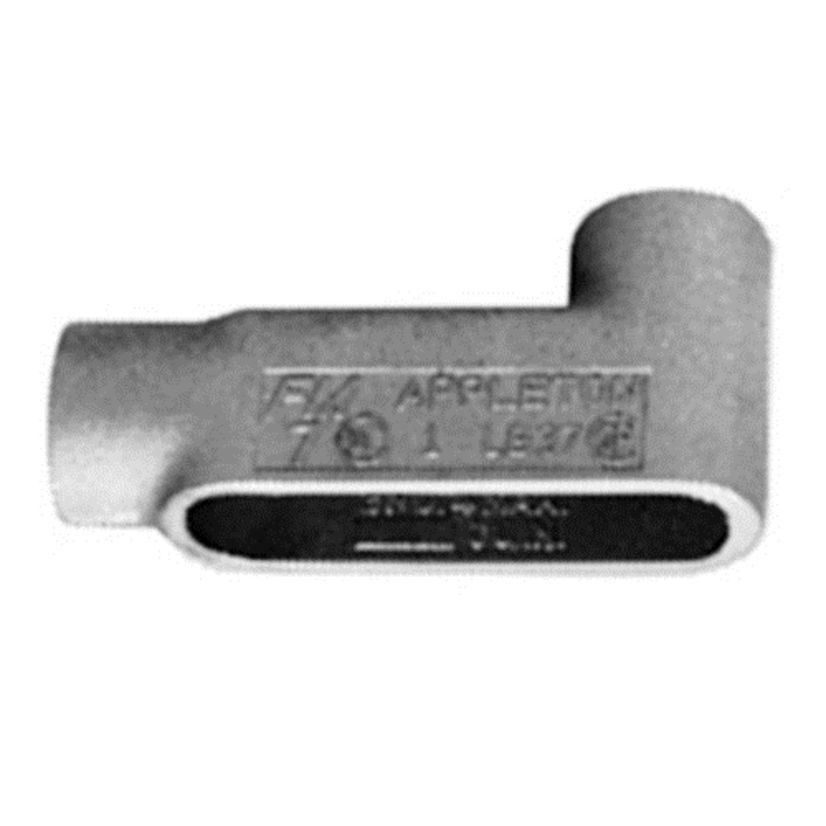

Appleton UNILETS LB67 Type LB Conduit Outlet Body, 2 in Hub, 7, 50 cu-in, Grayloy Iron, Triple Coated
Appleton LB67
Appleton UNILETS LB67 Type LB Conduit Outlet Body, 2 in Hub, 7, 50 cu-in, Grayloy Iron, Triple CoatedIn Stock: 2more info
|
BrandAppleton
MFG #LB67
Werner Part #16092
UPC781381514415
In Stock: 2more info
|
BrandAppleton
MFG #LB67
Werner Part #16092
UPC781381514415
Product Description
Appleton UNILETS Conduit Outlet Body, Type LB, 2 in Hub, 2 Hubs, 50 cu-in, 7, NEMA FB-1 Enclosure, Tapered FNPT, Surface Mount, Grayloy Iron, Triple Coated, Gray, 8.13 in L x 4.06 in W x 4.25 in H
Attributes
Documents
Applications
Features
Warranty
Attributes
Capacity50 cu-in
ColorGray
Connection TypeTapered FNPT
Country of OriginMX
Dimensions8.13 in L x 4.06 in W x 4.25 in H
Enclosure TypeNEMA FB-1
FinishTriple Coated
Form7
Hub Size2 in
ManufacturerEmerson Electric
MaterialGrayloy Iron
Mounting TypeSurface
Number of Hubs2
Package Height4.9 IN
Package Length8.3 IN
Package TypeEACH
Package Weight3.04 lb
Package Width5.3 IN
TypeType LB
Type / StyleType LB
Applications
For Rigid Steel/Aluminum and IMC Conduit
Features
- Smooth, rounded integral bushing in hubs protects conductor insulation
- Accurately tapped, tapered threads for tight, rigid joints and excellent ground continuity
- Wedge-Lok form-in-place covers with integral gasket are approved for use in wet locations
- Grayloy iron bodies with cast covers and gasket are approved for use in wet locations
- Unique Wedge-Lok clip cover design allows easy removal at any later time, without damaging the conduit body and cover is secured with clips, not screws
- Completely interchangeable with Crouse-Hinds Form 7 bodies, gaskets and covers
- Equivalent FM7 and Form 7 units have identical applications and installation dimensions
- Flat back design provides greater cubic content for easier wire pulling, and more room for splicing
- Fits flush and snug against flat surfaces for more stable installation
- Smooth hub bushings and cover openings protect conductor insulation
- Smooth hub openings allow easy conduit joining
- Pan head cover screws secure cover clips and provide superior screwdriver seating and torque
- Cover screws and clips are captive to prevent loss
- Hub size, body style, compliance data, maximum wire number/size and cubic capacity molded into body
Warranty
1 Year
