Appleton GRC100

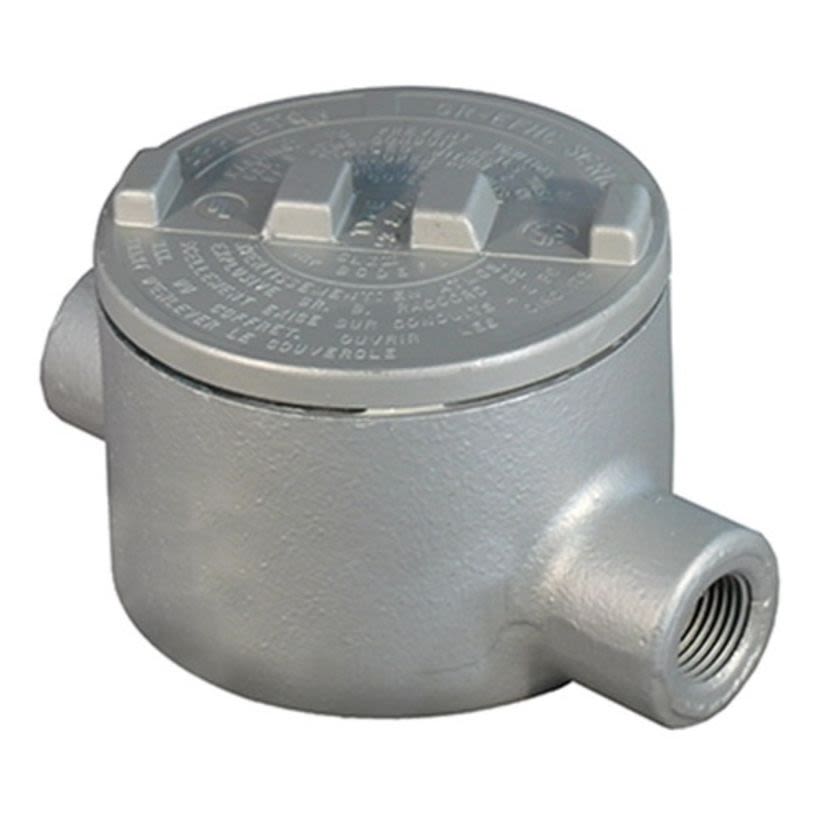

Appleton UNILETS GRC100 C-Style Dust-Ignitionproof Explosionproof Conduit Outlet Box With Cover, 1 in, 3.38 in Cover Opening, 18 cu-in, Triple Coated
Appleton GRC100
Appleton UNILETS GRC100 C-Style Dust-Ignitionproof Explosionproof Conduit Outlet Box With Cover, 1 in, 3.38 in Cover Opening, 18 cu-in, Triple CoatedNon-stock product. Available to order - lead time may vary.
BrandAppleton
MFG #GRC100
Werner Part #1131224
UPC781381436908
Non-stock product. Available to order - lead time may vary.
BrandAppleton
MFG #GRC100
Werner Part #1131224
UPC781381436908
Product Description
Appleton UNILETS Conduit Outlet Box, C-Style Dust-Ignitionproof Explosionproof, Series: GR Series, 1 in, 3.38 in Cover Opening Size, 18 cu-in, For Use With: Threaded Metallic Conduit System, Malleable Iron, Triple Coated, 3-3/4 in H x 3-3/4 in W x 2-1/4 in D
Attributes
Documents
Applications
Included
Warranty
Features
Attributes
Capacity18 cu-in
Country of OriginMX
Dimensions3-3/4 in H x 3-3/4 in W x 2-1/4 in D
FinishTriple Coated
ManufacturerEmerson Electric
MaterialMalleable Iron
Package Height1.02 in
Package Length13.3 in
Package TypeEACH
Package Weight4.01 lb
Package Width9.7 IN
Size1 in
Suitable For Use WithThreaded Metallic Conduit System
TypeC-Style Dust-Ignitionproof Explosionproof
Type / StyleC-Style Dust-Ignitionproof Explosionproof
Applications
Indoor/Outdoor Applications
Included
Internal Ground Screw and O-Ring
Warranty
Limited
Features
- Offers ten hub arrangements
- Malleable iron bodies have high tensile strength and ductility and provide great resistance to corrosion, impact and shock
- Accurately tapped, tapered hub threads for tight, rigid joints and ground continuity
- General purpose wiring
- Function as sealing fittings when used with sealing covers
- Internally threaded body with externally threaded cover
- Covers have pry notches for bar or wrench
- Accommodate sealing, dome, hub and union hub covers and canopies
- Standard O-rings provide raintight fit
- Internal ground screw standard
- Smooth, rounded integral bushing in each hub type box protects conductor insulation
- Complies with a wide range of classified area requirements
- Corrosion resistant
- For pulling of wires
- Connect conduit lengths and change direction of conduit runs
- Provide access for maintece
- Chromate/epoxy powder coated/zinc electroplated finish
