Appleton EYDM75

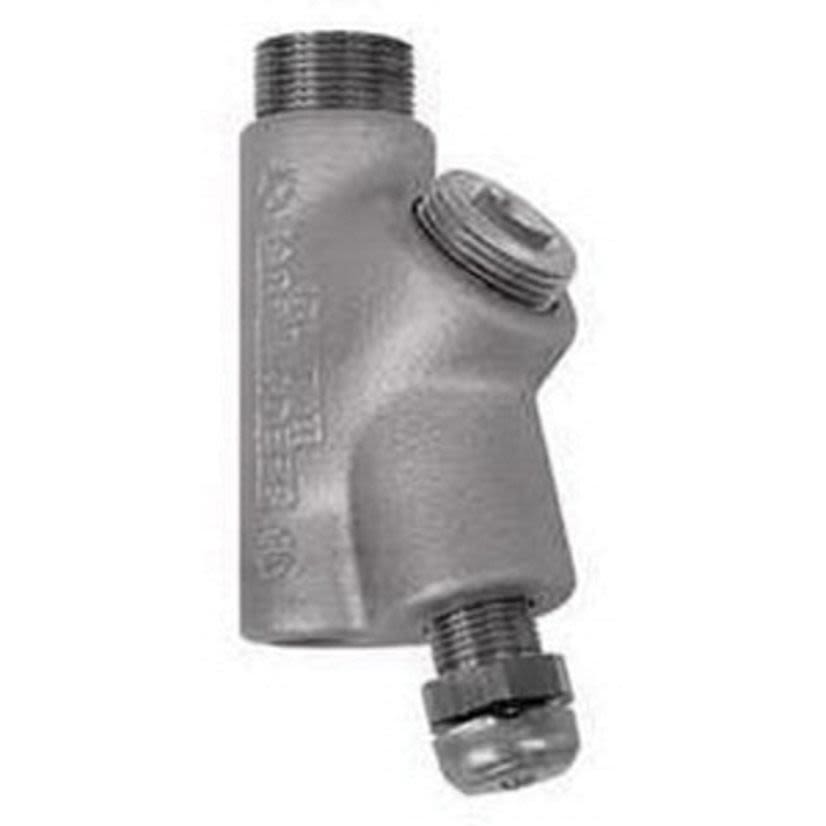

Appleton UNILETS EYDM75 Dust-Ignitionproof Explosionproof Raintight Conduit Sealing Fitting With Removable Male Nipple, 3/4 in, For Use With IMC/Threaded Rigid Metallic Conduit, Malleable Iron, Triple Coated
Appleton EYDM75
Appleton UNILETS EYDM75 Dust-Ignitionproof Explosionproof Raintight Conduit Sealing Fitting With Removable Male Nipple, 3/4 in, For Use With IMC/Threaded Rigid Metallic Conduit, Malleable Iron, Triple CoatedNon-stock product. Available to order - lead time may vary.
Non-stock product. Available to order - lead time may vary.
Product Description
Appleton UNILETS Conduit Sealing Fitting, Dust-Ignitionproof Explosionproof Raintight, Series: EYDM, 3/4 in, For Use With: IMC/Threaded Rigid Metallic Conduit, Malleable Iron, Triple Coated, 3.63 in L x 1.38 in W
Attributes
Documents
Applications
Included
Warranty
Features
Attributes
ColorGray
Country of OriginMX
Dimensions3.63 in L x 1.38 in W
FinishTriple Coated
ManufacturerEmerson Electric
MaterialMalleable Iron
Package TypeEACH
Size3/4 in
Suitable For Use WithIMC/Threaded Rigid Metallic Conduit
TypeDust-Ignitionproof Explosionproof Raintight
Type / StyleDust-Ignitionproof Explosionproof Raintight
Applications
For prevent passage of gases, vapors or flames from one portion of conduit system to another
Included
Removable Male Nipple
Warranty
Limited
Features
- Smooth, rounded integral bushing in each hub to protect conductor insulation
- Accurately tapped, tapered NPT threads for tight, rigid joints and ground continuity
- Removable nipple in male sealing fitting may be used interchangeably in top or bottom hub
- Close radius type for sealing vertical conduit runs
- Restrict any explosion to the sealed off enclosure
- Required in Class I, Division 1 and 2 locations within 18 in of enclosures containing apparatus that may cause arcs, sparks or high temperatures
- Required in Class I, Division 1 and 2 locations where 2 in or larger conduit enters enclosure, fitting housing terminals, splices or taps
- Required in Class I, Division 1 and 2 locations at the boundary where conduit leaves classified location
- Required in Class I, Division 1 and 2 locations where two or more enclosures are connected by 36 in or less conduit, seal must be located within 18 in of either enclosure
- Required where cables which exceed rate of gas or vapor transmission permitted for seals are used in Class I, Division 2 locations
- Tapered MNPT X tapered FNPT connection
- 25% fill vertical conduit drain sealing fittings
- Access cover has drain valve for automatic draining of water accumulation above the seal
- Chromate/epoxy powder coated/zinc electroplated finish
