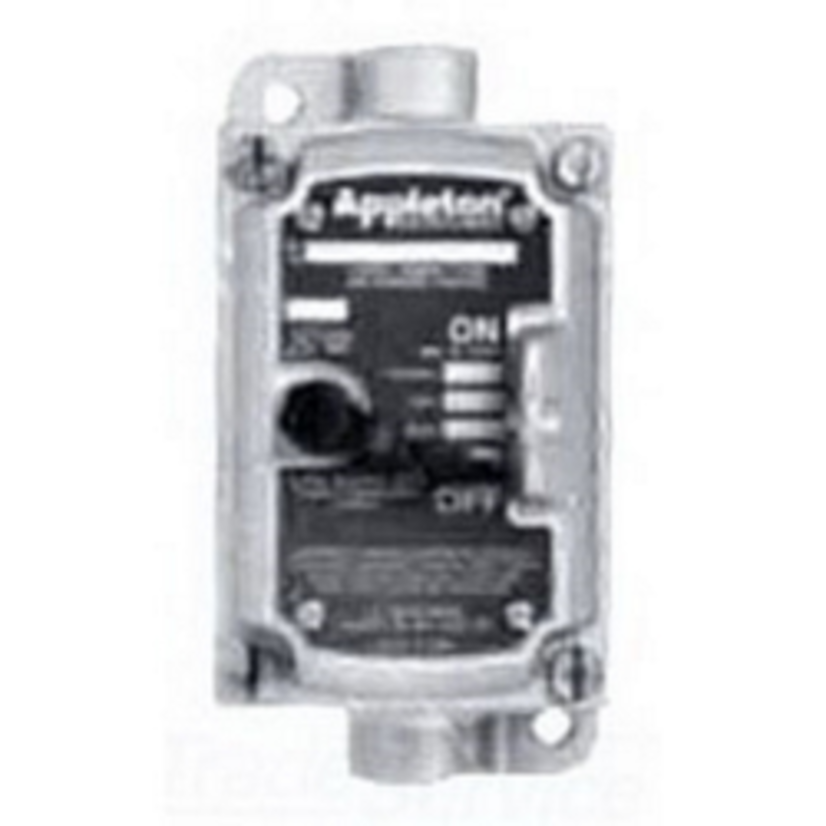

Appleton Contender EDSC2129SA 1-Gang Feed-Through Sealed Tumbler Switch Control Station, 120/277 V AC, 20 A, NEMA 3/7CD/9EFG NEMA Rating
Appleton EDSC2129SA
Appleton Contender EDSC2129SA 1-Gang Feed-Through Sealed Tumbler Switch Control Station, 120/277 V AC, 20 A, NEMA 3/7CD/9EFG NEMA Rating
Non-stock product. Available to order - lead time may vary.
BrandAppleton
MFG #EDSC2129SA
Werner Part #3833773
UPC781381737784
Non-stock product. Available to order - lead time may vary.
BrandAppleton
MFG #EDSC2129SA
Werner Part #3833773
UPC781381737784
Product Description
Appleton Contender Tumbler Switch Control Station, 1-Gang Feed-Through Sealed, Series: EDS, 120/277 V AC, 20 A, 1 Pole, Legend: On/Off, Front Operated Lever Actuator, Thread Connection, NEMA 3/7CD/9EFG NEMA Rating, Surface Mounting, Aluminum, Triple Coated, 6.81 in H x 3.72 in W x 5.31 in D Dimensions
Used in classified areas where ignitable vapors, gases or highly combustible dusts are present, installation in chemical plants, petrochemical plants, refineries and other process industries
Included
Internal Ground Screw
Warranty
1 Year
Features
Corrosion resistant, pad lockable in the on or off position
Enclosures have external mounting lugs for ease of mounting
Smooth, rounded integral bushing in each hub protects conductor insulation
Enclosures furnished with internal ground screw
Smooth ground mating surfaces assure flame-tight joint between cover and mounting enclosure
Stainless steel hex head screws attach sealing chamber to cover and mounting enclosure
Each handle has close-tolerance threaded stainless steel shaft to meet explosion proof requirements
Designed to prevent arcing of enclosed switches in ignitable atmospheres during connect and disconnect operation of lighting and light power loads
