Appleton CG90-5050S

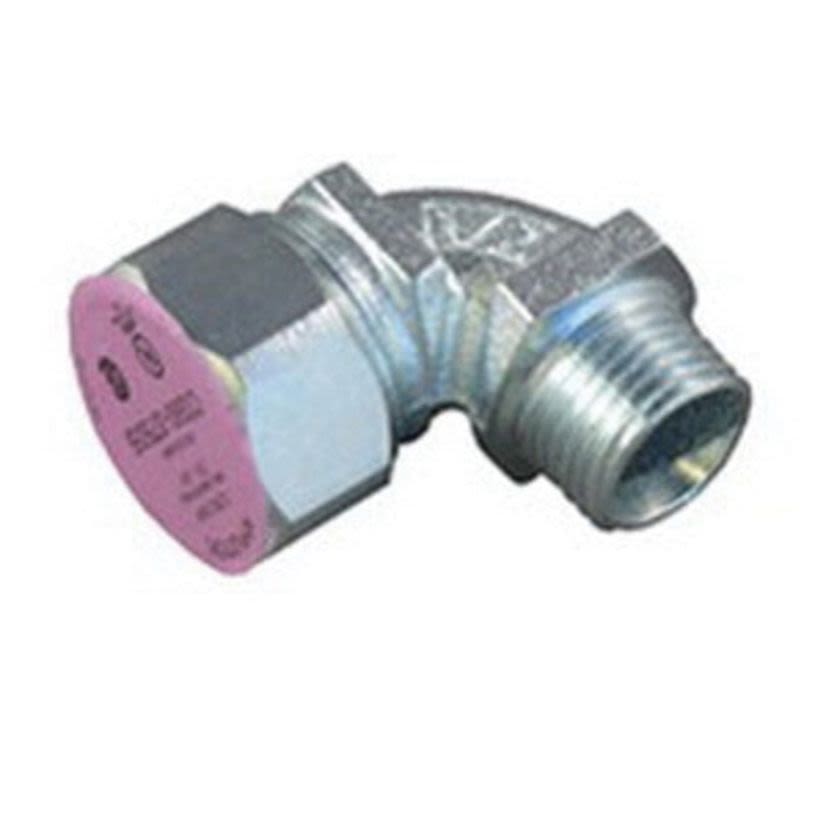

Appleton CG90-5050S Liquidtight Strain Relief Connector, 1/2 in Trade, 1/2 to 5/8 in Cable Openings, Malleable Iron
Appleton CG90-5050S
Appleton CG90-5050S Liquidtight Strain Relief Connector, 1/2 in Trade, 1/2 to 5/8 in Cable Openings, Malleable IronNon-stock product. Available to order - lead time may vary.
BrandAppleton
MFG #CG90-5050S
Werner Part #1125070
UPC781381449045
Non-stock product. Available to order - lead time may vary.
BrandAppleton
MFG #CG90-5050S
Werner Part #1125070
UPC781381449045
Product Description
Appleton Liquidtight Strain Relief Connector, 1/2 in Trade, Cable Openings: 1/2 to 5/8 in, Thread Connection, 90 deg Angle, Malleable Iron, Pink, 1-1/4 in OD Dimensions
Attributes
Documents
Applications
Warranty
Features
Attributes
Angle90 deg
Cable Openings1/2 to 5/8 in
ColorPink
Connection TypeThread
Country of OriginMX
Dimensions1-1/4 in OD
ManufacturerEmerson Electric
MaterialMalleable Iron
Package Height0.19 in
Package Length7.5 in
Package TypeEACH
Package Weight0.25 lb
Package Width5.6 in
Trade Size1/2 in
Type / Style90 DEG Liquidtight Strain Relief Connector
Documents
Applications
Used to provide a liquidtight and strain relief termination for flexible type neoprene, hypalon and PVC jacketed power or control cord and cable and for use in wet or dry locations
Warranty
1 Year
Features
- Color coded identification label clearly states the catalog number and minimum-maximum cable diameter range for which the connector is designed
- Neoprene sealing grommet firmly but safely grips cable jacket providing strain relief while protecting internal wiring connections against external tension on cable or cord
- Steel or teflon washer reduces friction between grommet and connector cap providing even pressure distribution, eliminating leakage resulting from grommet distortion
- Large aluminum connectors 1-1/2 in thru 4 in and all steel connectors are constructed with hex head cap
- For particularly harsh applications, wire mesh strain reliefs may be used with cord and cable connectors
- Provide a liquidtight and strain relief termination for flexible type neoprene, hypalon, and PVC jacketed power or control cord and cable
