Appleton CG-328350

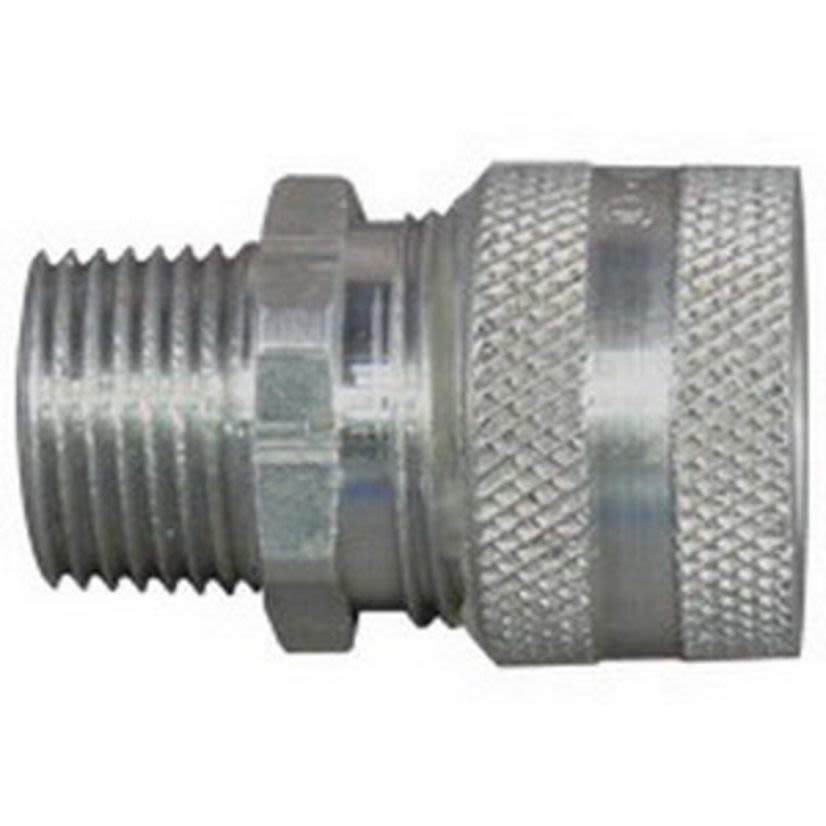

Appleton CG-328350 CG Series Strain Relief Straight Cord Connector, 3-1/2 in Trade, 3.281 to 3.515 in Cable Openings, Aluminum, Natural
Appleton CG-328350
Appleton CG-328350 CG Series Strain Relief Straight Cord Connector, 3-1/2 in Trade, 3.281 to 3.515 in Cable Openings, Aluminum, NaturalNon-stock product. Available to order - lead time may vary.
BrandAppleton
MFG #CG-328350
Werner Part #3960846
UPC781381448338
Non-stock product. Available to order - lead time may vary.
BrandAppleton
MFG #CG-328350
Werner Part #3960846
UPC781381448338
Product Description
Appleton Straight Cord Connector, Strain Relief, Series: CG Series, 3-1/2 in, Cable Openings: 3.281 to 3.515 in, Threaded Hub, Aluminum, Natural, 5 in Dia
Attributes
Documents
Applications
Warranty
Features
Attributes
Cable Openings3.281 to 3.515 in
Connection TypeThreaded Hub
Country of OriginMX
Dimensions5 in Dia
FinishNatural
ManufacturerEmerson Electric
MaterialAluminum
Package Height5.5 in
Package Length5.2 IN
Package TypeEACH
Package Weight2.41 lb
Package Width5.2 in
SeriesCG Series
Trade Size3-1/2 in
TypeStrain Relief
Type / StyleStrain Relief
Applications
For flexible type neoprene, hypalon and PVC jacketed power or control cord and cable
Warranty
5 Years
Features
- Color coded identification label clearly states the catalog number and minimum/maximum cable diameter range for which the connector is designed
- Neoprene sealing grommet firmly but safely grips cable jacket providing strain relief while protecting internal wiring connections against external tension on cable or cord
- Steel or Teflon washer reduces friction between grommet and connector cap providing even pressure distribution, eliminating leakage resulting from grommet distortion
- Large aluminum connectors 1-1/2 in thru 4 in and all steel connectors are constructed with hex head cap
- For particularly harsh applications, wire mesh strain reliefs may be used with cord and cable connectors
- Silicone free
