Appleton CESD-3023

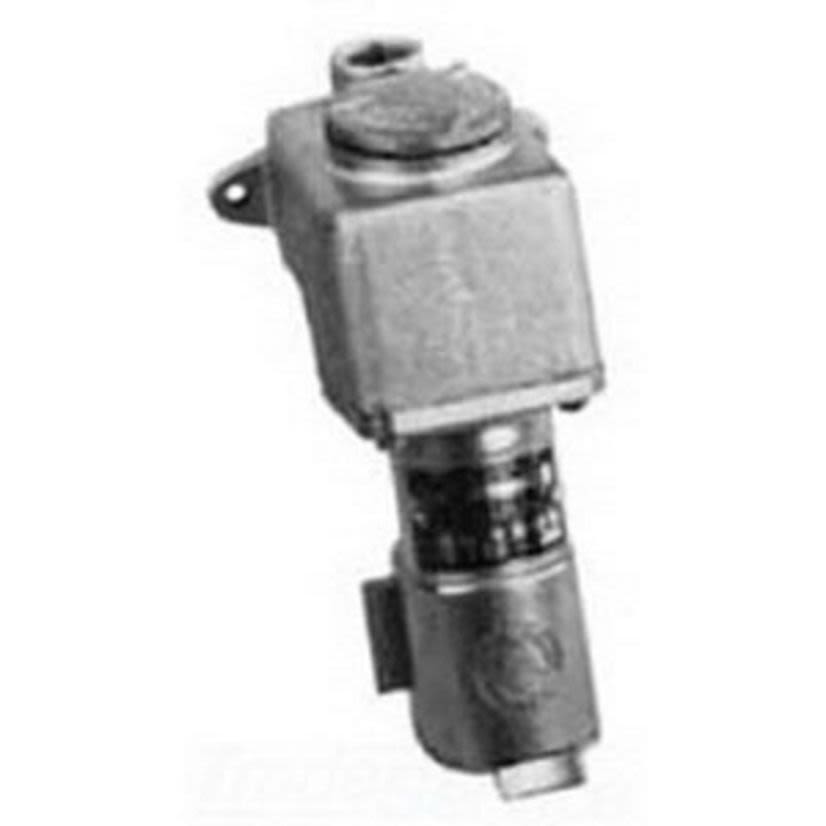

Appleton CESD-3023 CESD 1-Phase Feed Through Grounding Style 2 Explosionproof Receptacle With Mounting Box, 125 to 250 V AC, 30 A, 3 Poles, 2 Wires
Appleton CESD-3023
Appleton CESD-3023 CESD 1-Phase Feed Through Grounding Style 2 Explosionproof Receptacle With Mounting Box, 125 to 250 V AC, 30 A, 3 Poles, 2 WiresNon-stock product. Available to order - lead time may vary.
BrandAppleton
MFG #CESD-3023
Werner Part #3993575
UPC781381188203
Non-stock product. Available to order - lead time may vary.
BrandAppleton
MFG #CESD-3023
Werner Part #3993575
UPC781381188203
Product Description
Appleton Explosionproof Receptacle, 1-Phase Feed Through Grounding Style 2, Series: CESD, 125 to 250 V AC, 30 A, 1-1/2 hp, 3 Pole, 2 Wires, NEMA 3R NEMA Rating, Pressure Wire Terminal, Copper Free Aluminum, 8.69 in H x 5.13 in W x 6-3/4 in D Dimensions
Attributes
Documents
Applications
Included
Warranty
Features
Specifications
Attributes
Country of OriginMX
Dimensions8.69 in H x 5.13 in W x 6-3/4 in D
Horsepower1-1/2 hp
ManufacturerEmerson Electric
MaterialCopper Free Aluminum
NEMA RatingNEMA 3R
Number of Poles3
Number of Wires2
Package Height6 IN
Package Length10.1 in
Package TypeEACH
Package Weight5.34 lb
Package Width7.3 in
SeriesCESD
Terminal TypePressure Wire
Type1-Phase Feed Through Grounding Style 2
Type / Style1-Phase Feed Through Grounding Style 2
Voltage Rating125 to 250 V AC
Documents
Applications
CPH Mating Plugs, Lighting Systems, Conveyors, Heaters, Motor-Generator Sets, Air Conditioners, Compressors and Pumps Applications
Included
Vertical Feed-Thru Hubs
Warranty
Limited
Features
- Shell and extra pole grounding style 2
- Delayed action safety construction with Slide-Lok design
- Factory sealed, external seals not required in most areas, arcing is safely confined to receptacle interior
- Energized receptacle contacts deeply recessed to reduce danger of accidental touching
- Spring door keeps dust out of receptacle when plug is not in use
- Unique blade type, brass contacts exert constant pressure along entire contact surface and provide superior electrical contact
- Contacts have beryllium copper wire springs
- Insulators provide superior dielectric and mechanical strength and lowest arc tracking
- Smooth, rounded integral bushing in each hub protects conductor insulation
- Fiberglass reinforced polyester insulating blocks
Specifications
Standards/Approvals: ARRA Compliant|RoHS Compliant|Class I, Div 1 and 2, Groups D|UL 1010 (UL 1203), 894, 1682, 1686|UL File No. E10784|CSA C22 No. 30/159/182.1
