Appleton BLB400-M

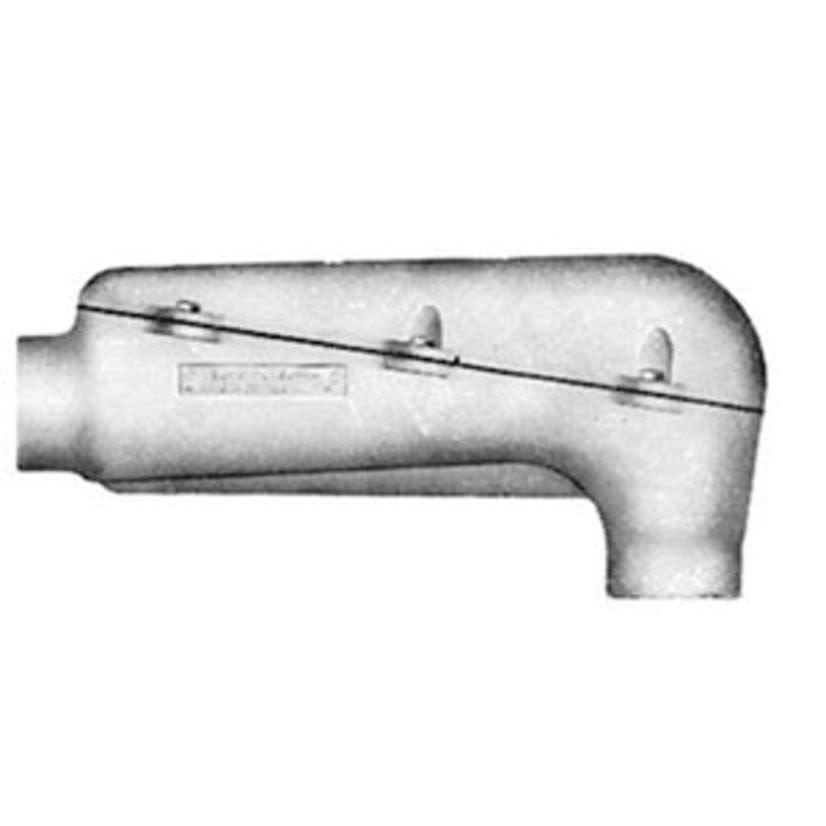

Appleton Mogul UNILETS BLB400-M NEC 6x Type LB Conduit Outlet Body With Cover and Gasket, 4 in Hub, 740 cu-in, Malleable Iron, Triple Coated
Appleton BLB400-M
Appleton Mogul UNILETS BLB400-M NEC 6x Type LB Conduit Outlet Body With Cover and Gasket, 4 in Hub, 740 cu-in, Malleable Iron, Triple CoatedOut of Stockmore info
|
Out of Stockmore info
|
Product Description
Appleton Mogul UNILETS Conduit Outlet Body, Type LB, Series: NEC 6x, 4 in Hub, 2 Hubs, 740 cu-in Capacity, NEMA FB-1 Enclosure, Tapered FNPT Connection, Malleable Iron, Triple Coated Finish, 27-1/2 in L x 7 in W x 12-1/2 in H Dimensions
Attributes
Documents
Applications
Warranty
Features
Attributes
Capacity740 cu-in
Connection TypeTapered FNPT
Country of OriginMX
Dimensions27-1/2 in L x 7 in W x 12-1/2 in H
Enclosure TypeNEMA FB-1
FinishTriple Coated
Hub Size4 in
ManufacturerEmerson Electric
MaterialMalleable Iron
Number of Hubs2
Package Height16.4 in
Package Length29 in
Package TypeEACH
Package Weight64.3 lb
Package Width16.8 IN
TypeType LB
Type / StyleType LB
Documents
Applications
Rigid Metal and IMC Conduit Applications
Warranty
1 Year
Features
- Exclusive built-in rollers facilitate cable pulling
- Smooth, rounded integral bushing in each hub protects conductor insulation
- Accurately tapped, tapered threads for tight, rigid joints and ground continuity
- Covers have captive stainless steel screws to speed installation, prevent freezing of screws
- Length requirement distance between centerline of each hub bushing (conduit stop) exceeds six times the trade diameter of the conduit per NEC 314.28(A)(2)
- Bending space requirement these moguls also meet the NEC 314.28(A)(2) exception requirement spelled out in NEC 312.6(A)
